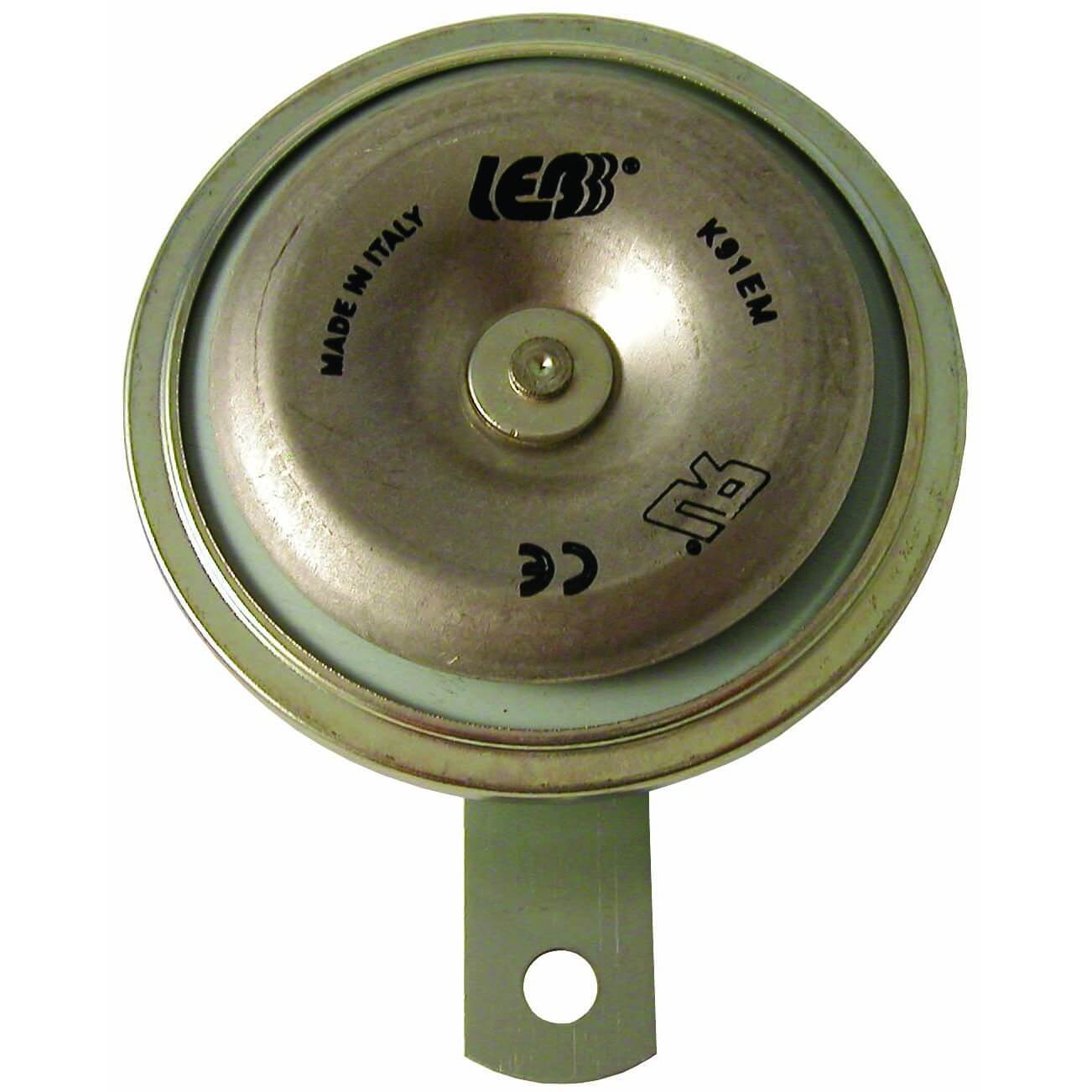

Elektronische Hupe K91-EM

Preview: HU-1067_Hupe_K91EM.jpg Preview: HU-1067_Hupe_K91EM_2.jpg


  • Item no.: HU-1067-18335

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Description Technical data Dimension drawing
Description
Elektronische Version der Hupe K91. Mit einem immensen Stehvermögen von über 1.000.000 Arbeitszyklen überlebt diese Hupe mit Sicherheit jedes Fahrzeugleben. Die Hupe kann mit 12-80 V oder mit 24-48...
Close menu
Elektronische Hupe K91-EM
12-80 V, 350 Hz (low frequency), 110 dB
Electronic version of the K91. It has incredible stamina of over 1,000,000 cycles and will outlive the operating life of any vehicle. The horn can be powered with 12-80V or with 24-48V and thus is nice­ly suited for installation in electric forklift trucks.
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12-80
Power consumption [W] 8.4
Temperature range [° C] -20 to 80
Standards EC, UL
Output
Temperature range [° C] -20 to 80
Volume [dB] 110
Frequency, revolutions [Hz, rpm, fpm] 350
Lifespan >1,000,000 work cycles
Dimension drawings
Accessories 1
Accessories 1
Elektronische Hupe K91-EM HU-1067_Hupe_K91EM.jpg
