LED backup light model 778 XD

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
A special light for backup cameras! An emphasis on safety has made the use of backup cameras extremely popular across a wide range of applications. To get full funcionality even in the dark...

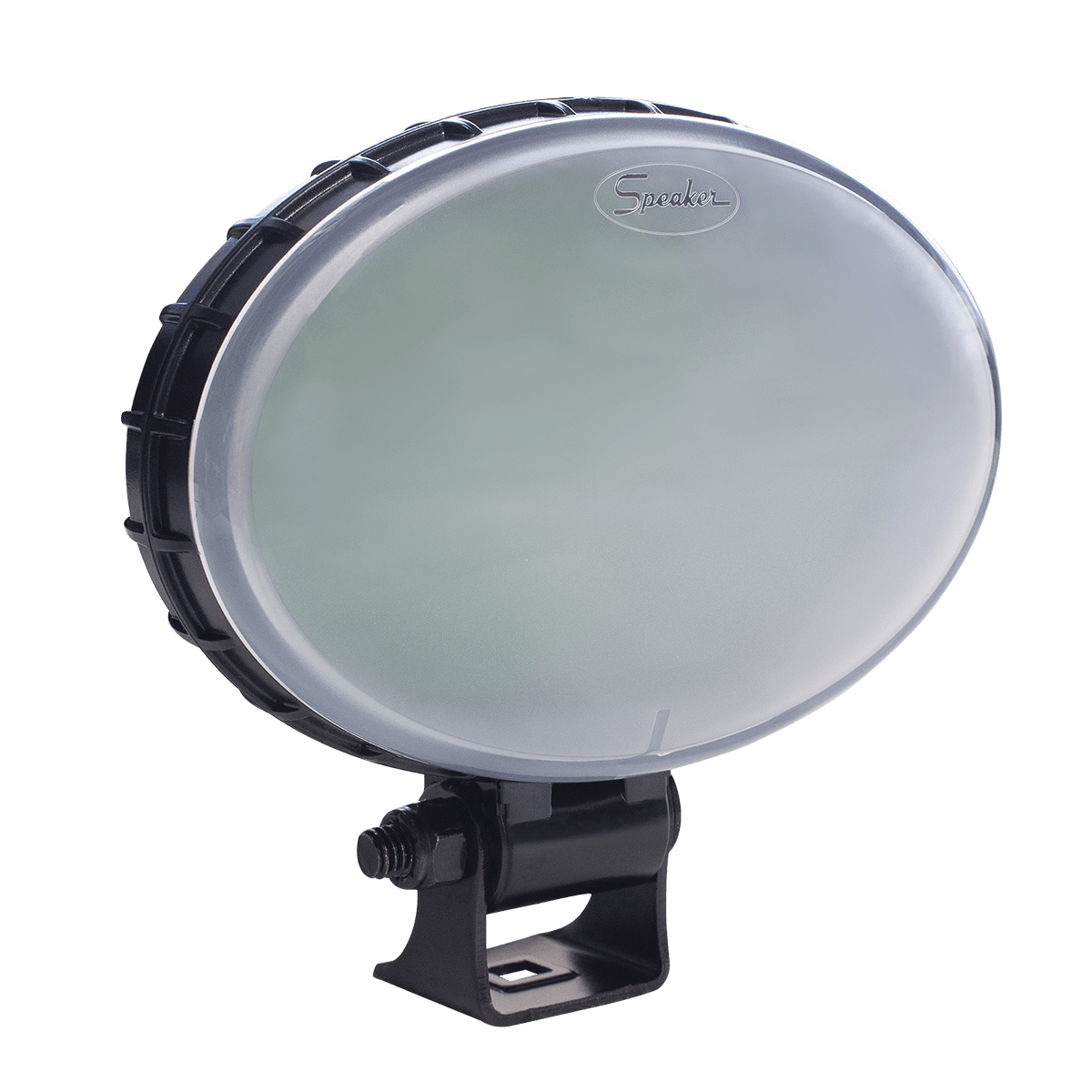

LED backup light model 778 XD
12-48 V, 580 lm, for backup camera systems, ECE (Reg. 23)
A special light for backup cameras!

An emphasis on safety has made the use of backup cameras extremely popular across a wide range of applications. To get full funcionality even in the dark backup cameras need a good lightsource illuminating the area. Most lights lack uniformity with a clear bright spot in the center. Due to the limited dynamic range of cameras, this often means that the left and right rear areas can only be displayed insufficiently on the monitor.

Model 778 XD LED light was specifically designed for use with backup cameras. It provides a very homogeneous light image that spreads over the entire rear area of the vehicle, allowing the camera to monitor the entire danger area.

It produces just under 300 candelas (compliant with SAE J593).
Factsheets
Standards
Operating voltage [V], nominal 12-48
Power consumption [W] 12
Temperature range [° C] -40 to 65
Protection class IP67
Standards ECE (Reg. 23), SAE (J593, J1455), IE 60529, EN12895
EMC (electromagnetic compatibility) ECE (Reg. 10), CE CISPR (12, 22), SAE (J1113), EN55022
Transient protection 330 V @ 1 Hz-100 pulses
Output
Brightness [lm], eff. 580
Brightness [cd] 300
Beam pattern / lens Spez.Lichtbild für Rückfahrkameras
Temperature range [° C] -40 to 65
Mounting
Connector Deutsch plug (DT04-2P)
Mating connector Deutsch plug (DT06-2S)
Mounting Universal mount, 5/16"-18x1"
Reverse polarity protection 1
Functions
Reversing light
Road approval
