Item no.: FS-1730-31332

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

Model 6145 is a modern built-in LED fog light. Its technical-looking exterior makes a good figure on every vehicle. But, much more importantly, it makes really good light. The variant 6145 J has...

Close menu

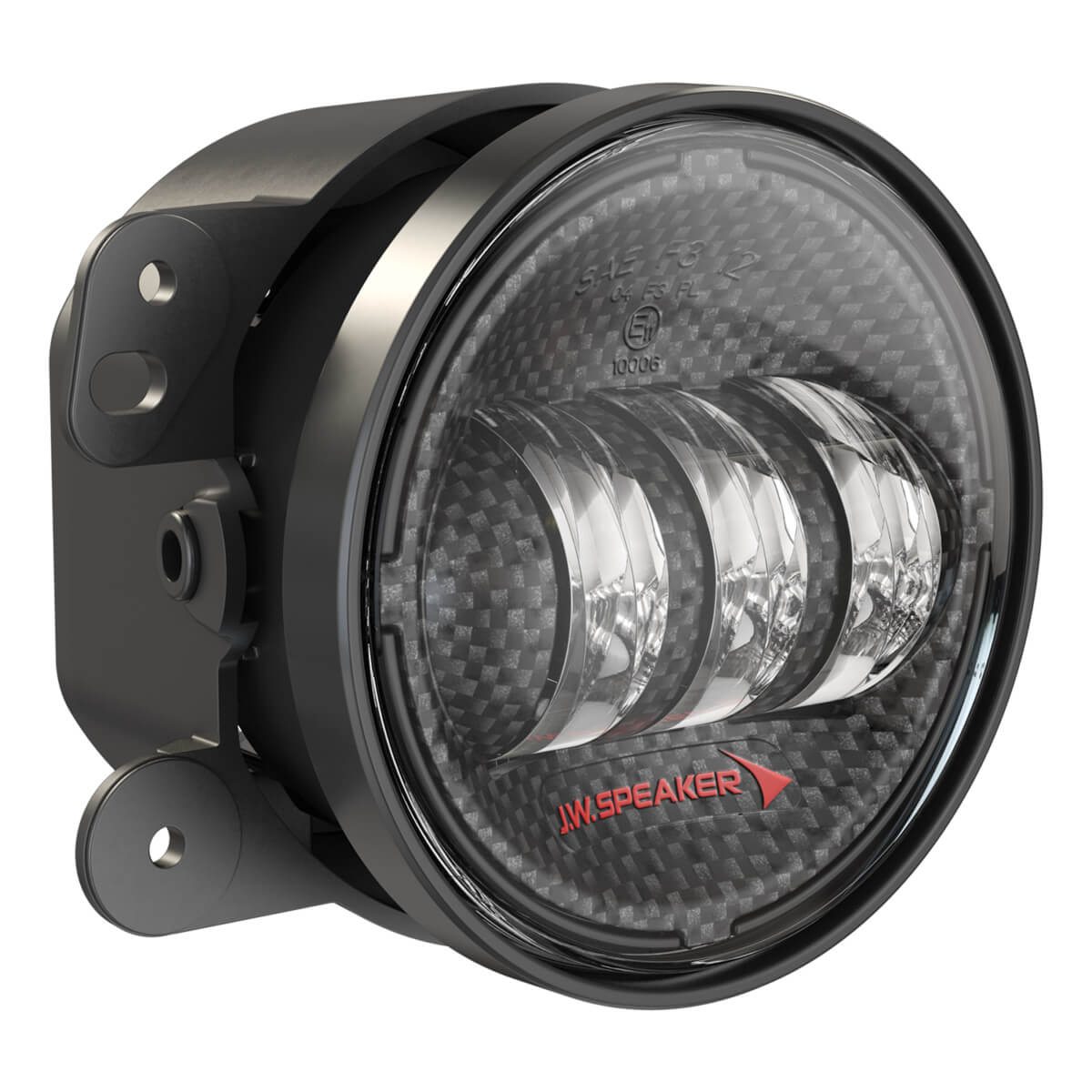

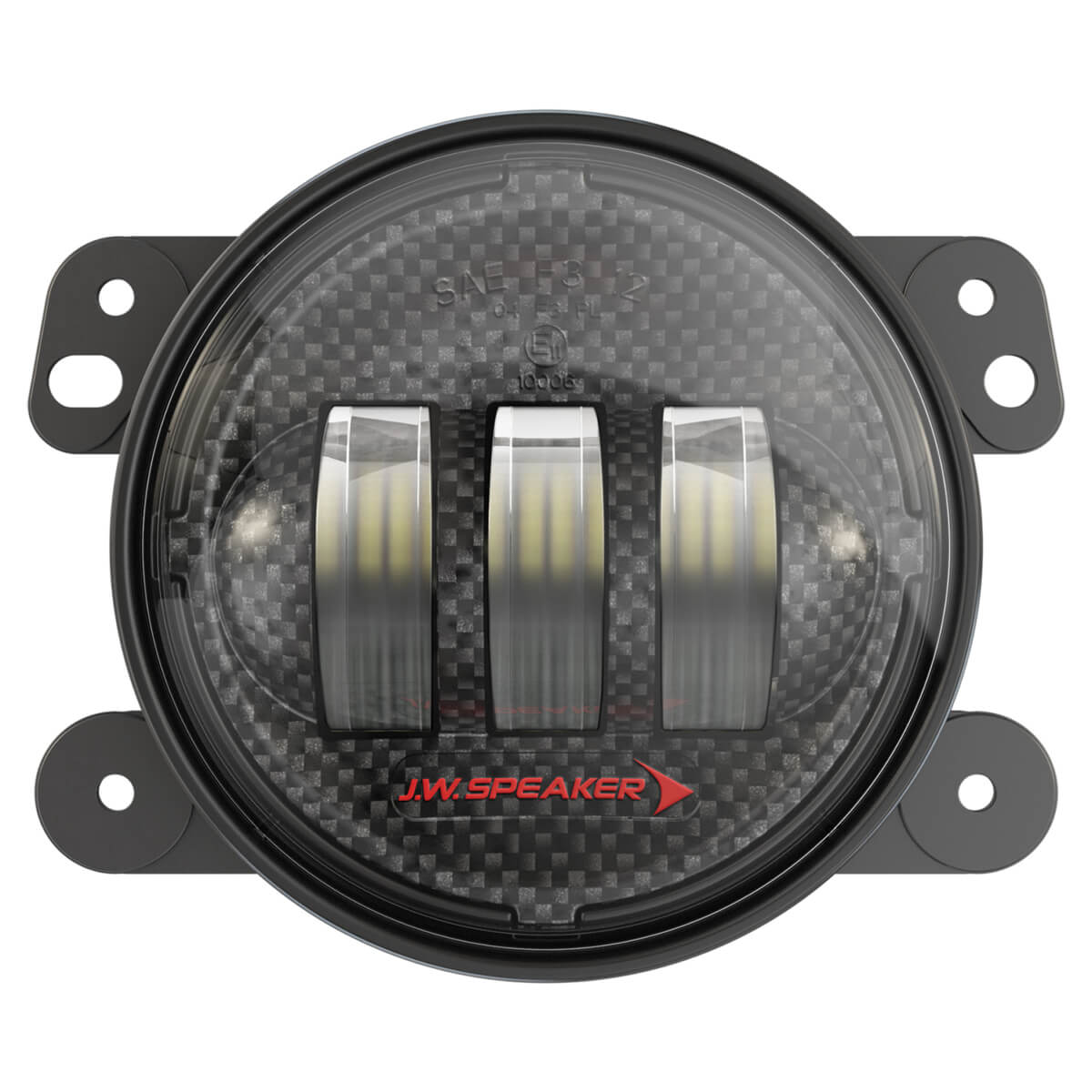

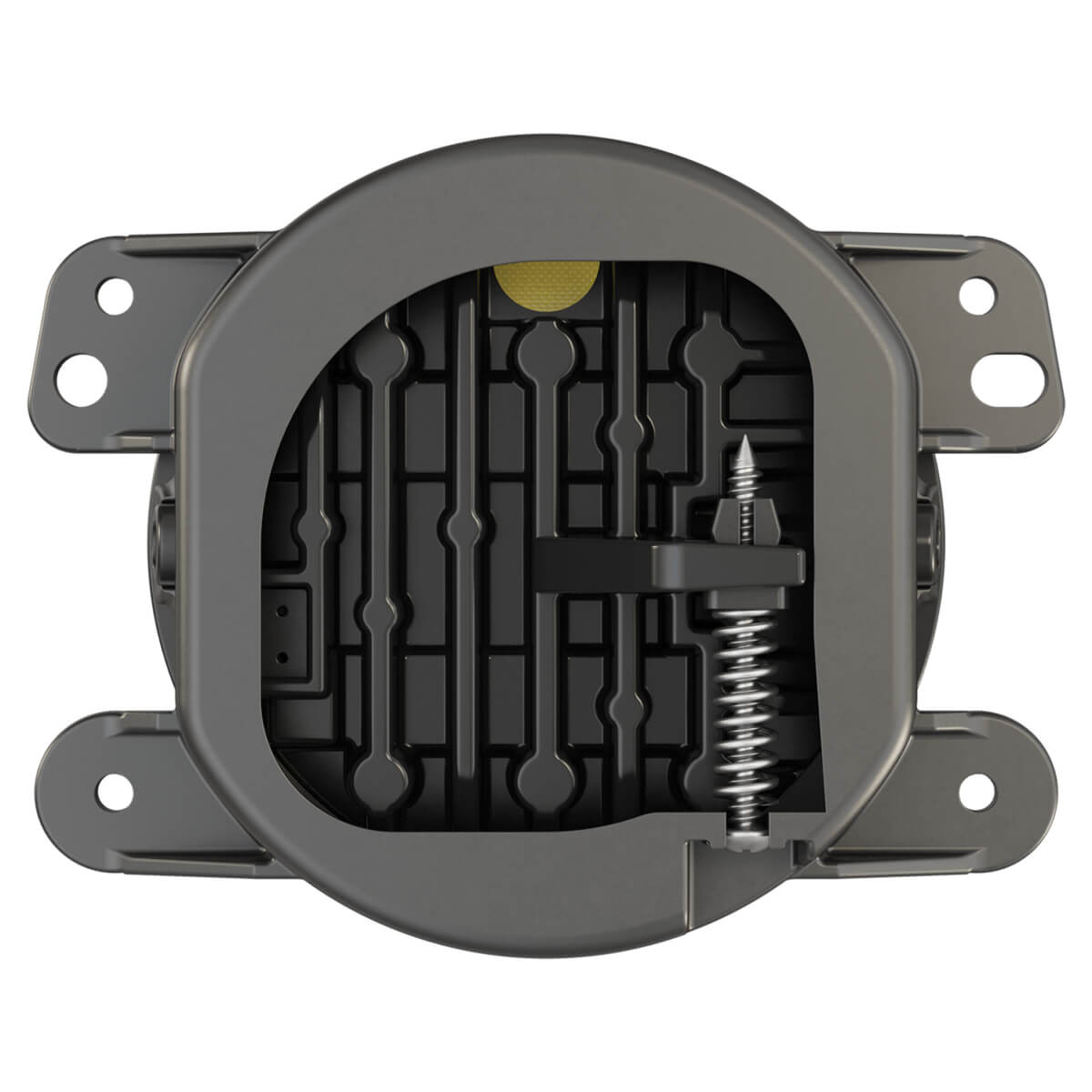

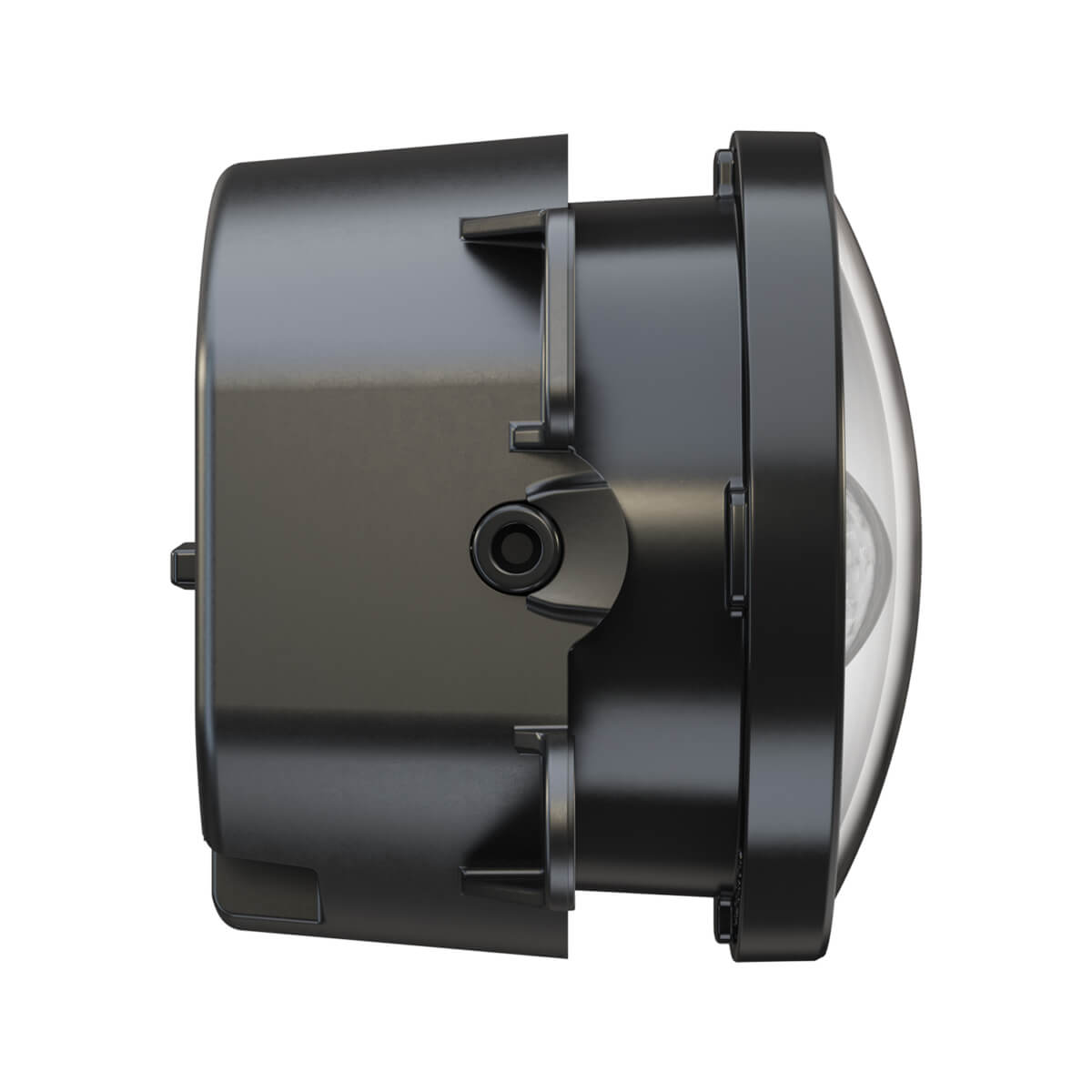

LED built-in fog light model 6145 J2

12 V, ECE road approval (Reg. 19), carbon fiber design bezel, 2 light kit

Model 6145 is a modern built-in LED fog light. Its technical-looking exterior makes a good figure on every vehicle. But, much more importantly, it makes really good light.

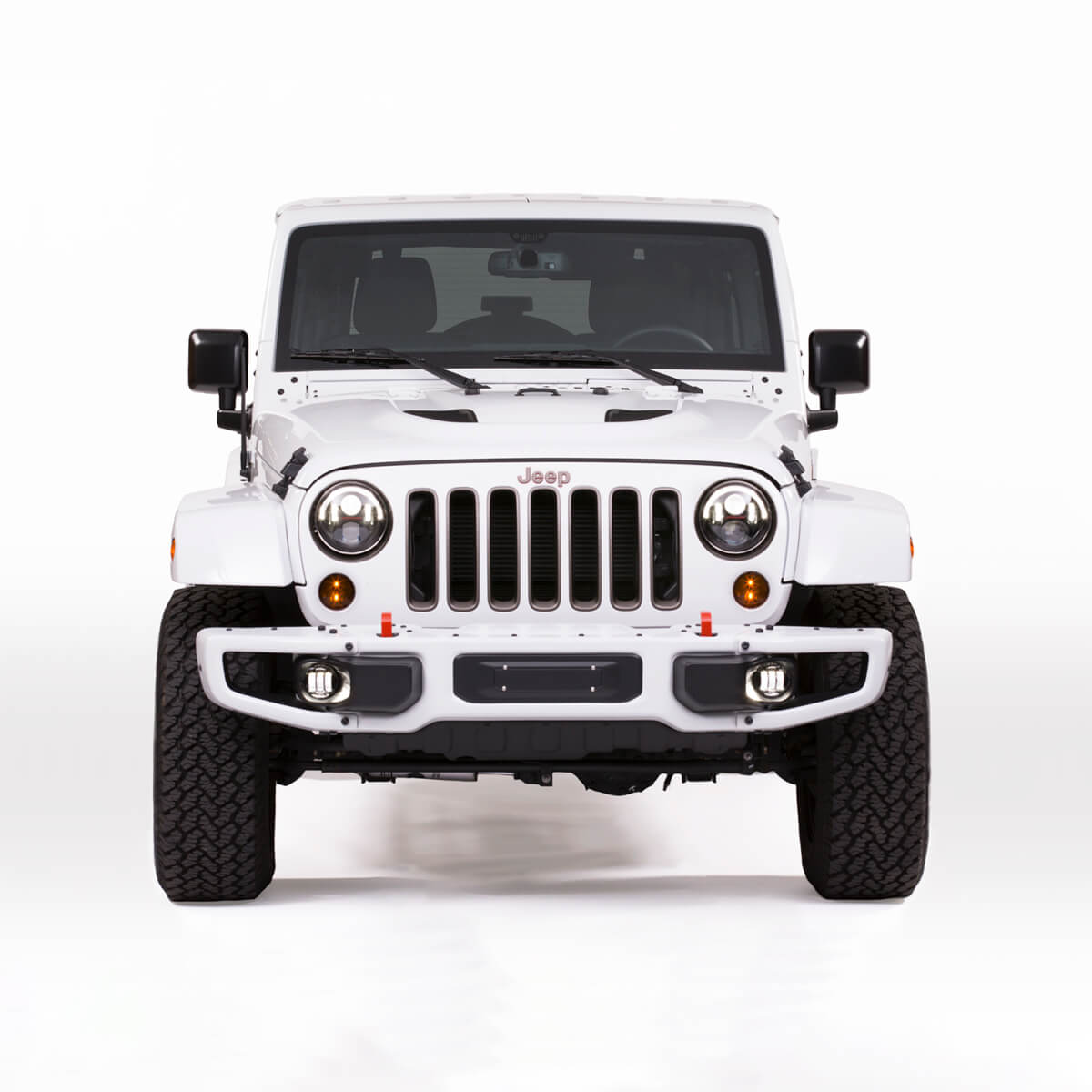

The variant 6145 J has especially been designed for use on Jeeps. Variant J2 has got a slightly changed look.

Also available with a black bezel.

Factsheets

Standards

Operating voltage [V], nominal	12
Operating voltage [V], functional	10-15
Power consumption [W]	19.2
Temperature range [° C]	-40 to 65
Standards	ECE (Reg. 19), SAE (J583)
EMC (electromagnetic compatibility)	ECE (Reg. 10)

Output

Brightness [lm], theoretically	1080
Brightness [lm], eff.	610
Beam pattern / lens	Nebellicht
Temperature range [° C]	-40 to 65

Mounting

Connector	Delphi MP280-2M (12084167)
Mating connector	Delphi MP280-2F (12059183)
Mounting	Built-in
Installation dimensions / diameter [mm]	100,36
Reverse polarity protection	1
