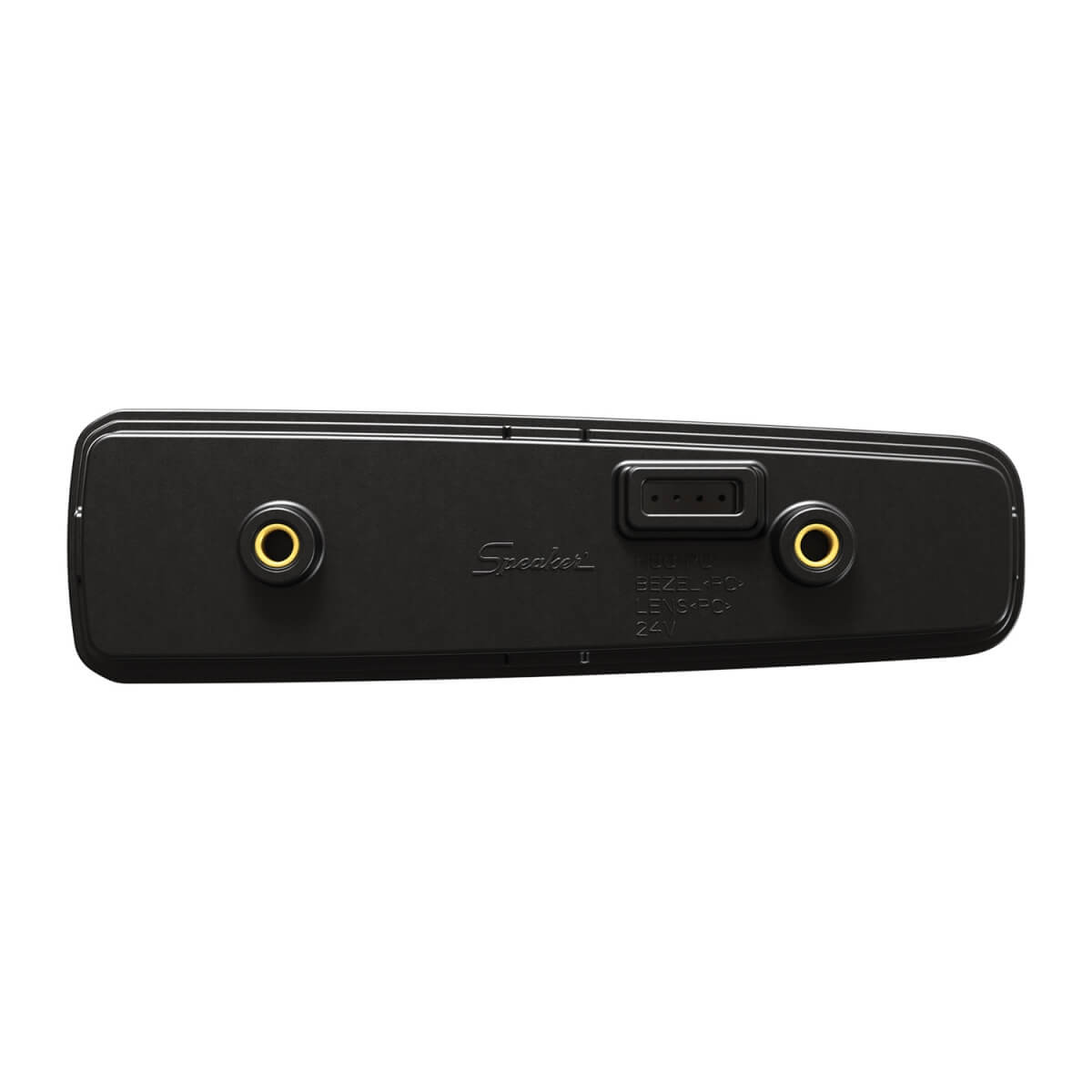

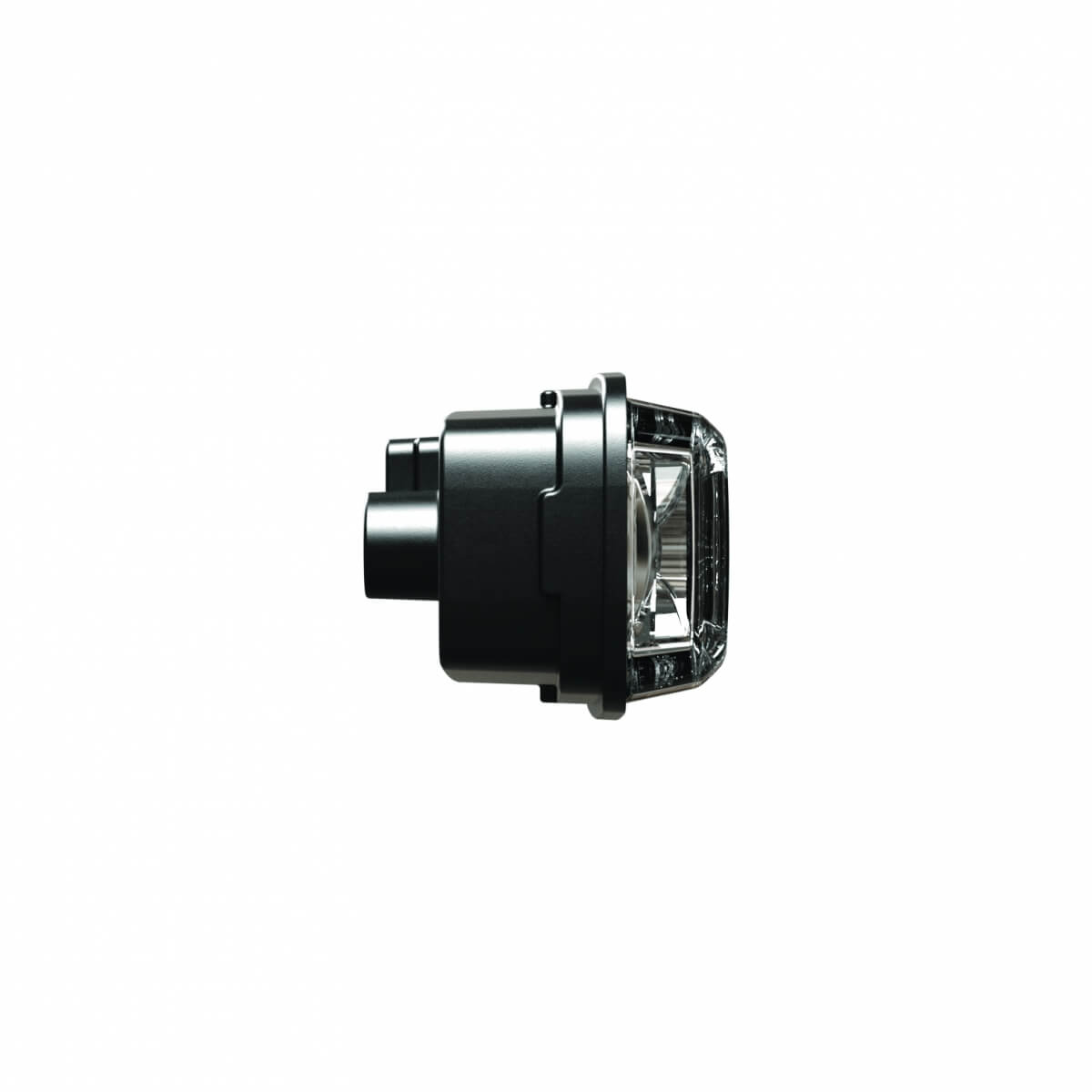

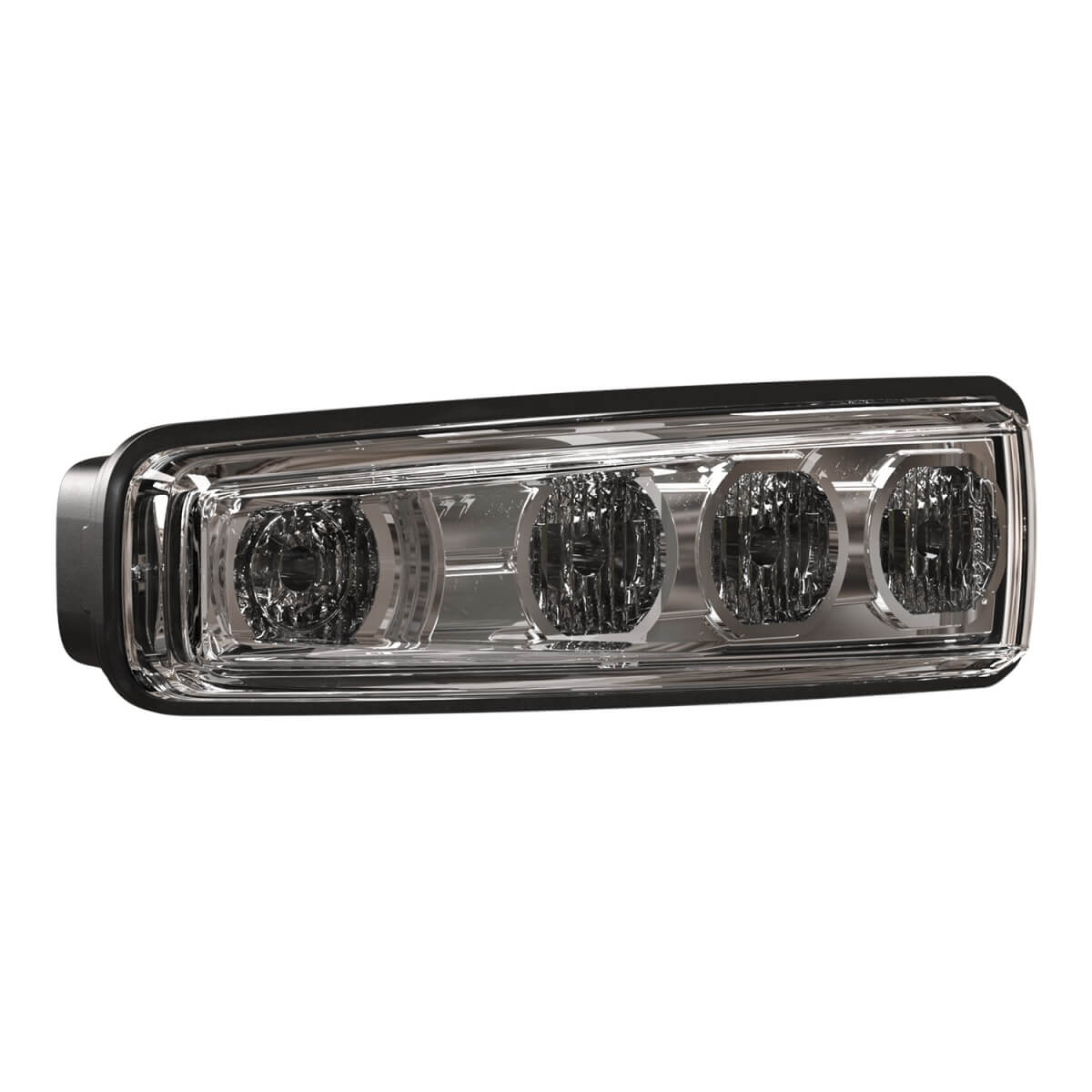

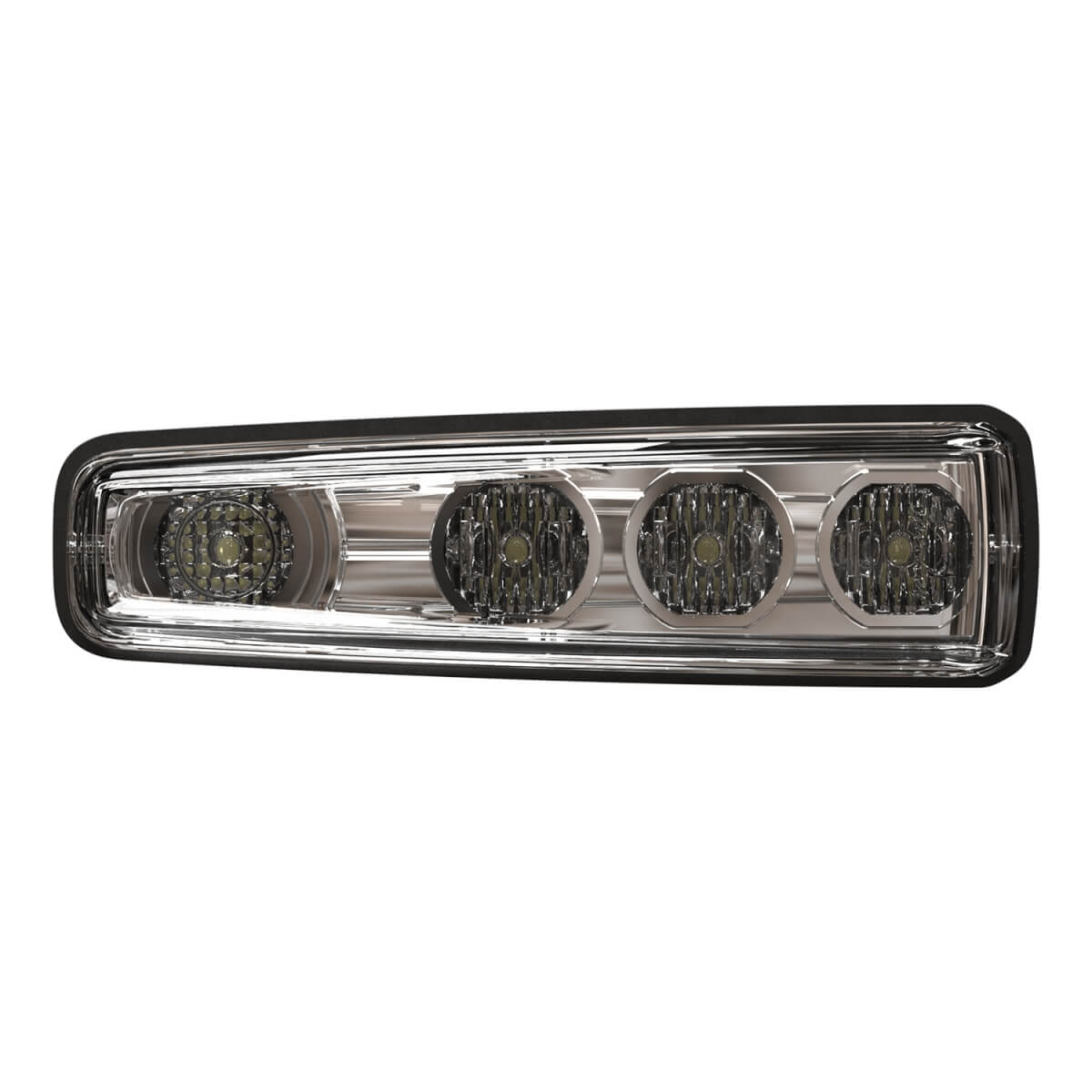

LED headlight model 516

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
The ideal lighting solution for small vehicles: Light series 516 With model 516 J.W.Speaker has developed a light series for haulers and corridor conveyors. The combination of driving lights,...
LED headlight model 516
12-24 V, front position and driving light, incl. turn signal
The ideal lighting solution for small vehicles: Light series 516

With model 516 J.W.Speaker has developed a light series for haulers and corridor conveyors. The combination of driving lights, parking lights and indicator lights and optionally tail- or rear lights with indicators are in a small housing which makes this light almost universally usable

Model 516 at a glance:

• Very small housing

• Available as headlight (driving light and turn signal) or as rear light (stop, tail and turn light)

• Rugged solid state LEDs can withstand shock & vibration

• Sealed to IP67

• Tough polycarbonate housing
Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 10-32
Power consumption [W] 4.08
Temperature range [° C] -40 to 65
Protection class IP69K
Transient protection 330 V @ 1 Hz-100 pulses
Output
Brightness [lm], eff. 380
Beam pattern / lens Stand- und Fahrlicht, Fahrtrichtungsanzeiger
Temperature range [° C] -40 to 65
Mounting
Connector Bare wire leads
Mounting Built-in, M5-1 (2x)
Reverse polarity protection 1
Functions
Parking light
Turn signal
Driving lights
