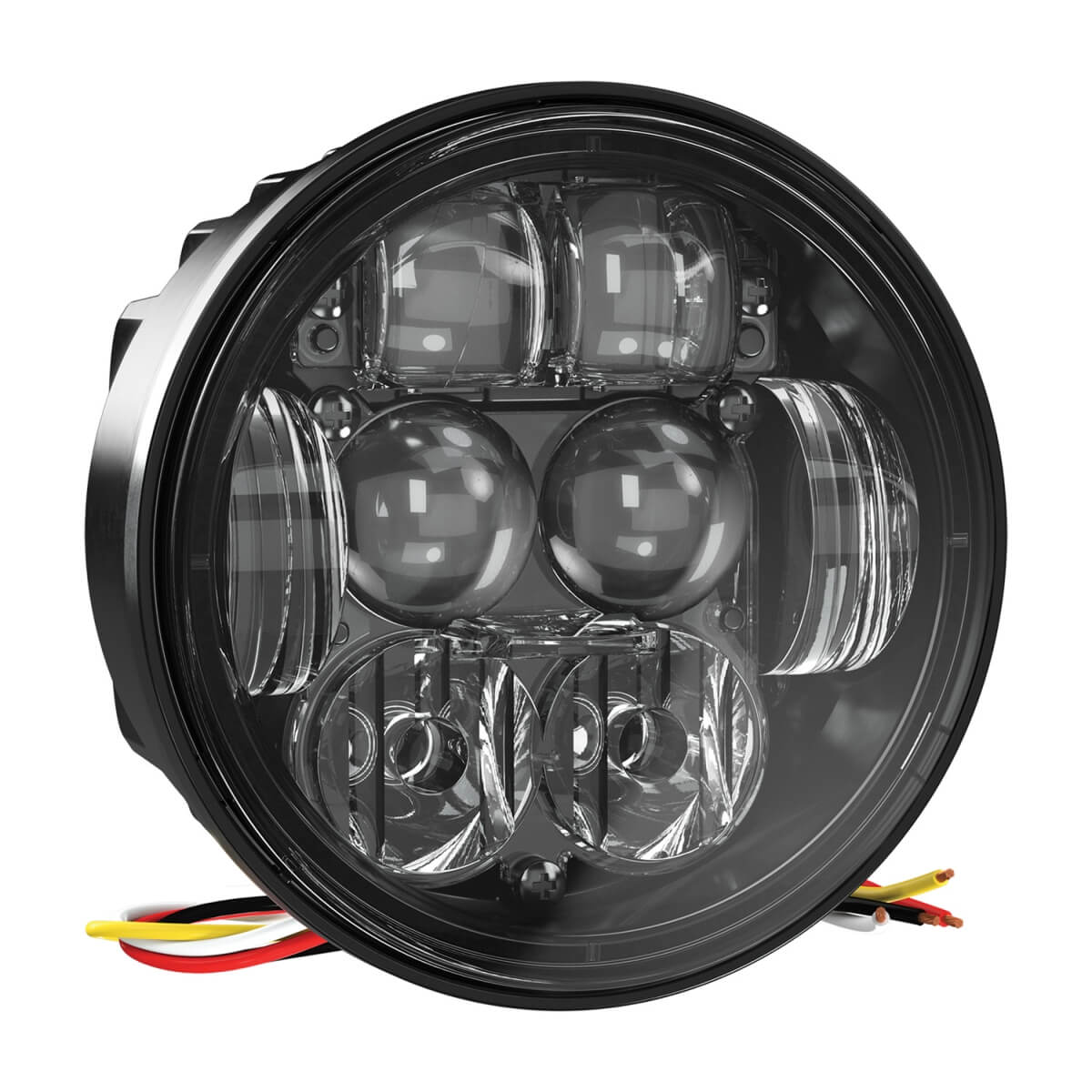

LED headlight model 6130 Evolution
12-24 V, low- & high beam, with position light, ECE road approval (Reg. 112)
At J.W. Speaker the addition of "Evolution" to the name of a product is always an indication of a new and revised version. But that's not all. Typically, this additional word also points to a significant improvement. Like with the combination of the small 4.5-inch headlight model 6130 Evolution.

The original of this driving headlights dates back to 1999, when model 6130 first appeared. But at that time the ballast had to be mounted separately. This has now been revised. In the development of model 6130 Evolution the ballast are placed inside the small 4.5-inch housings.

But not only that. The housing is additionally designed to be more flat than its predecessor, so the installation of the light is even more easy.

The revised beam patterns shows a very harmonious illumination of the road. The low beam delivers 440 effective lumen, the high beam even 840 effective lumens.

Besides the possibility to mount the lights as usual with low and high beam in two separate housings, there is now an additional variant available that has combined high and low beam in just one housing.
Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 10-32
Power consumption [W] 24.24-27.6 (low), 34.32-36 (high), 1.44-2.16 (position)
Standards ECE (Reg. 112)
Transient protection 150 V @ 1 Hz-100 pulses
Output
Brightness [lm], eff. 440 (Abblendl.), 840 (Fernl.)
Beam pattern / lens Abblend- und Fernlicht, Standlicht
Mounting
Connector Bare wire leads
Mounting Built-in
Installation dimensions / diameter [mm] 120
Reverse polarity protection 1
Functions
Low beam
High beam
Parking light
Road approval
