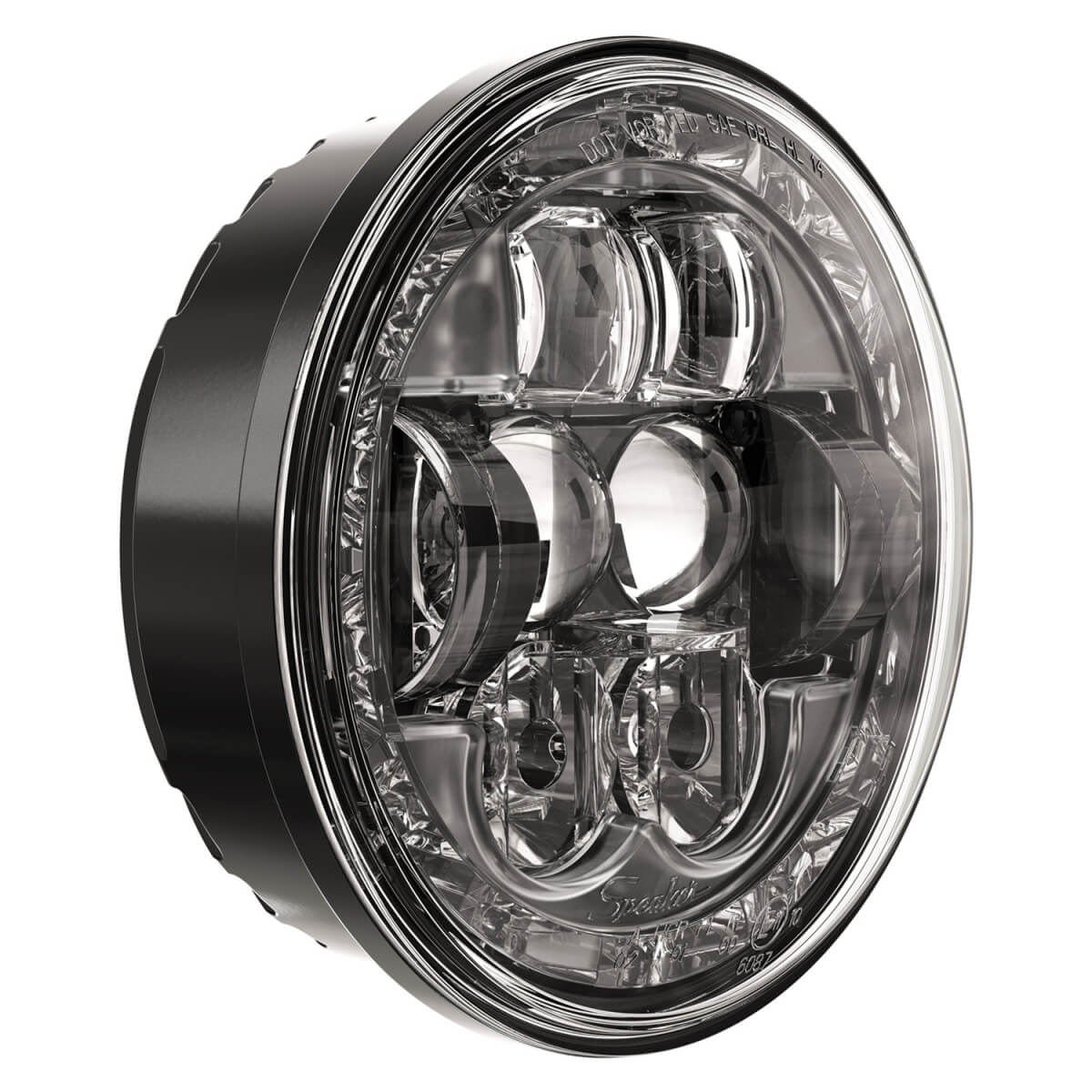

Preview: FS-2158_Fahrscheinwerfer_8631.jpg

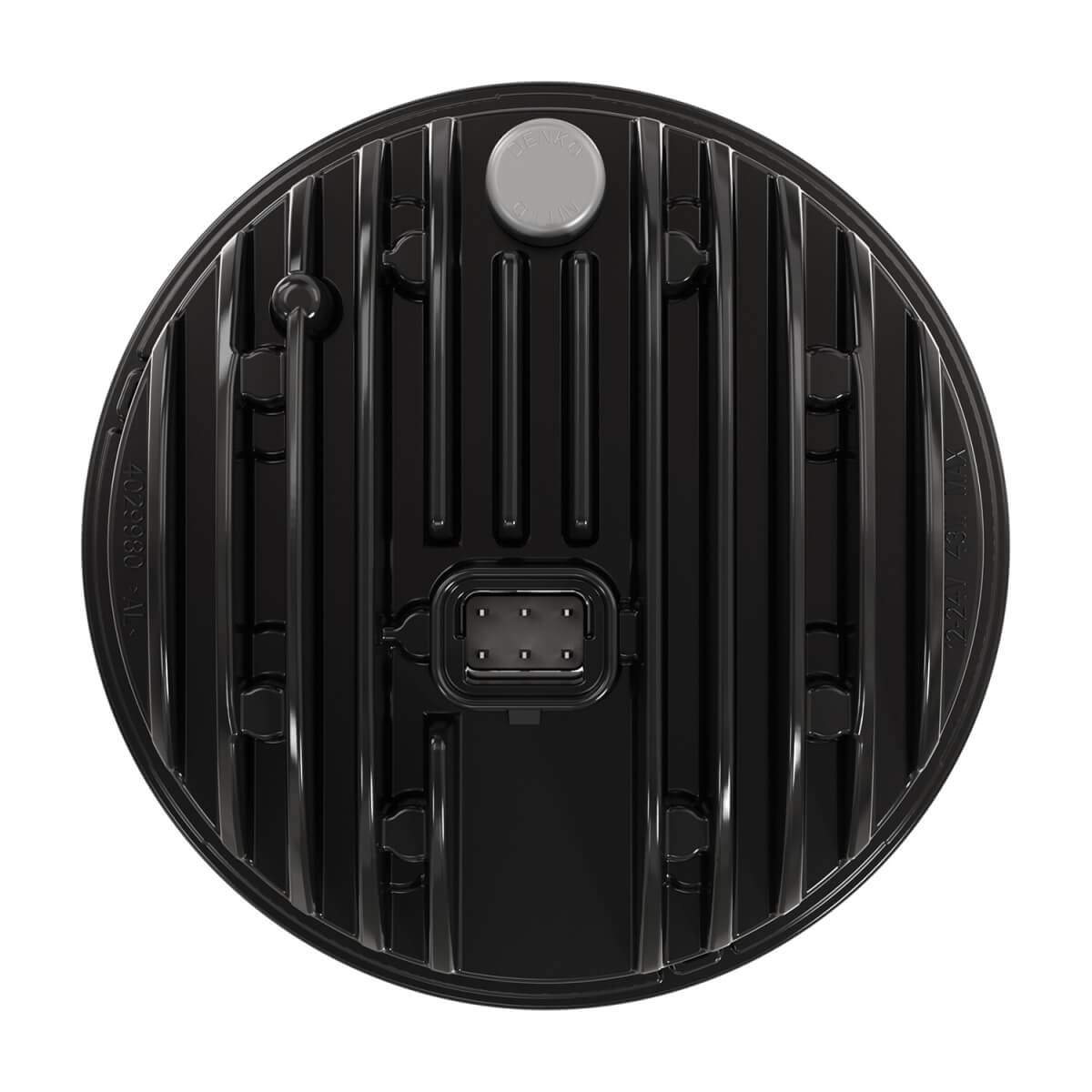

Preview: FS-2158_Fahrscheinwerfer_8631_4.jpg

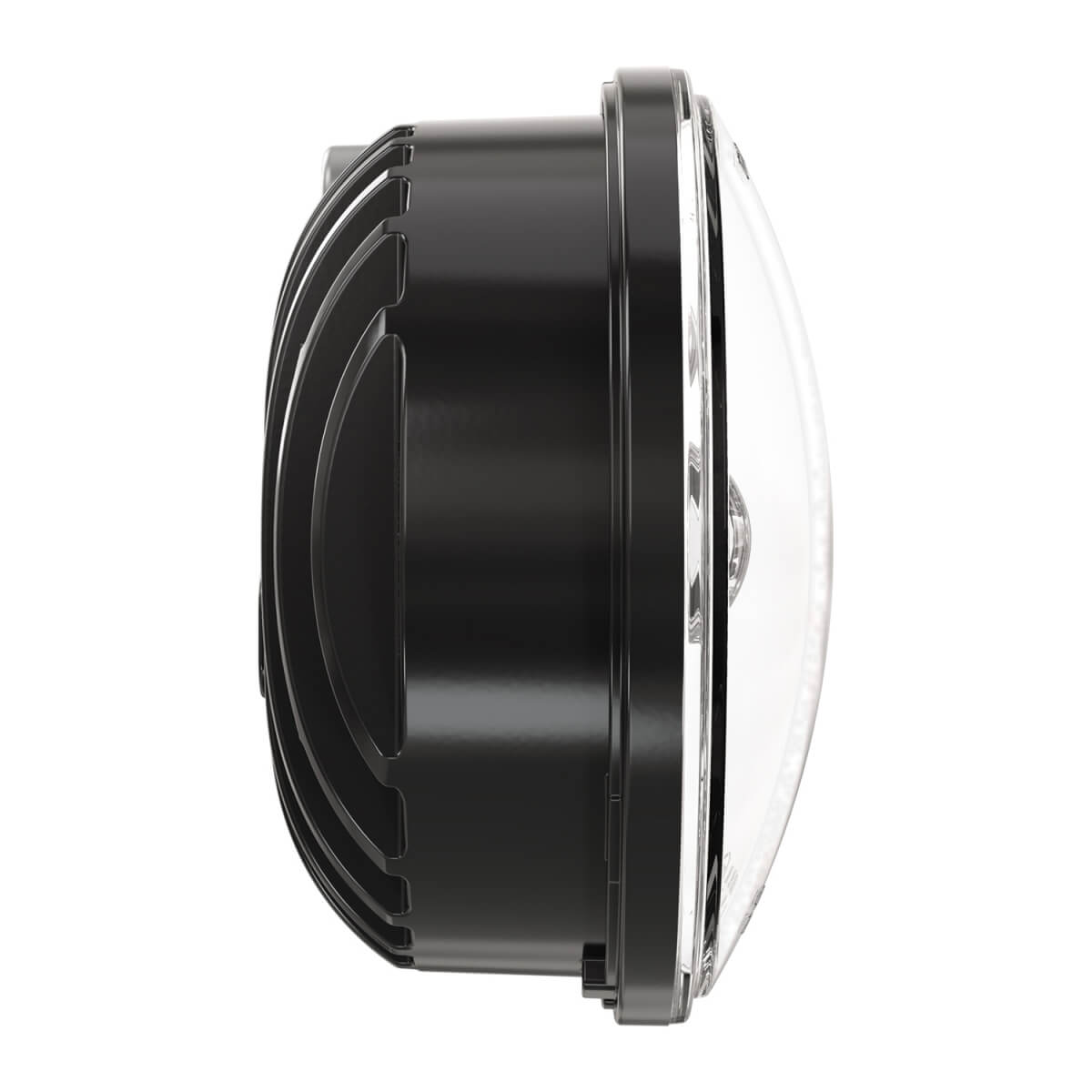

Preview: FS-2158_Fahrscheinwerfer_8631_3.jpg

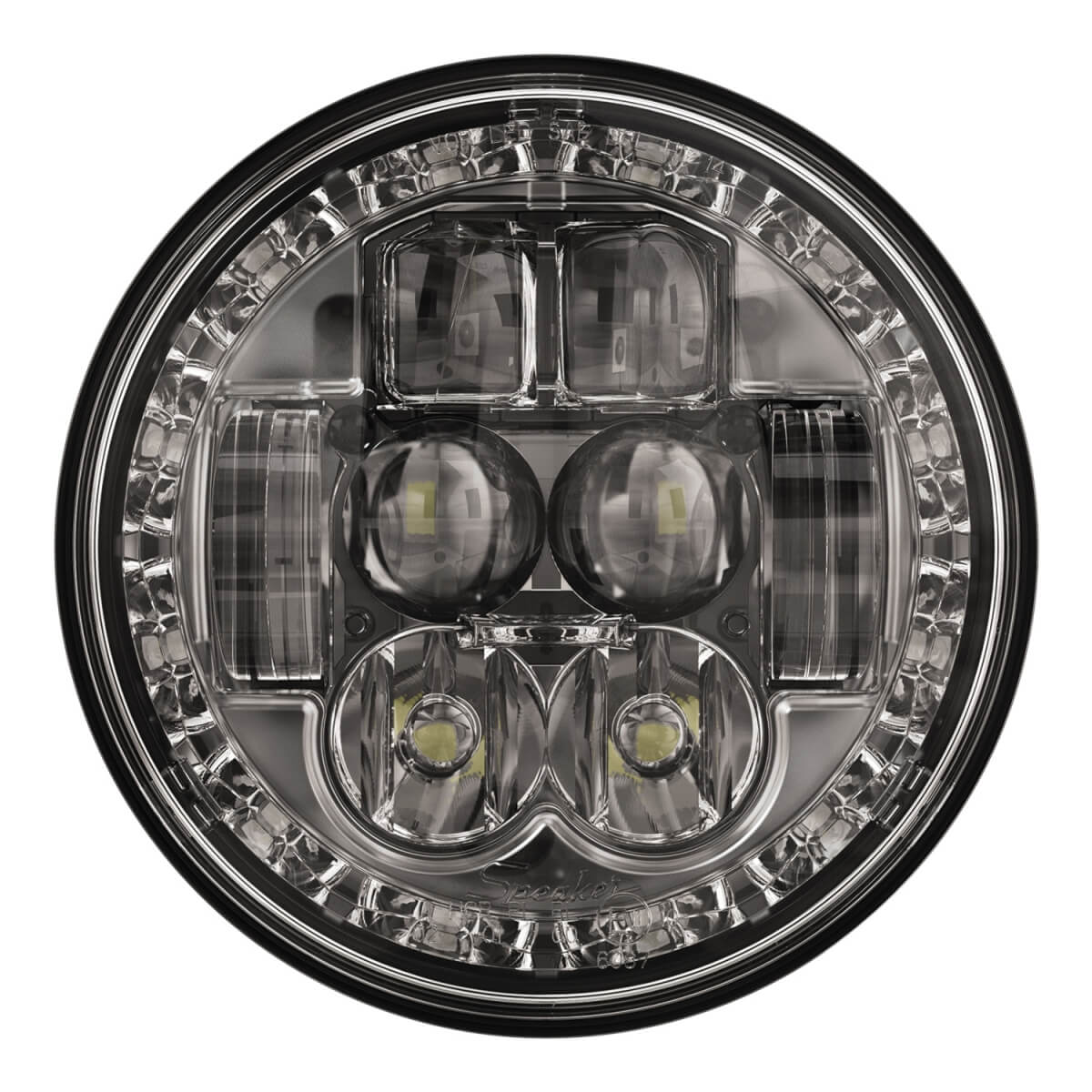

Preview: FS-2158_Fahrscheinwerfer_8631_2.jpg

Item no.: FS-2158-86341

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

By using high quality LEDs with superior performance model 8630 Evolution offers a significantly improved performance than its predecessor. This unique looking Headlights combined low and high beam...

Close menu

LED headlight model 8631 Evolution

12-24 V, low and high beam, with daytime runnig light and front position, with turn signal, ECE road approval (Reg. 6, 7, 87 ,112), LHT

Now there is also model 8631, which is model 8630 Evolution with an integrated turn signal! When the new signal is used the entire outer ring glows in bright amber. This makes model 8631 a real eye catcher!

It can be used as a retrofit solution for all 5.75-inch headlights.

Features:

• A combined low and high beam

• New design with increased brightness (more than 50 percent)

• Easy plug & play installation with Delphi connector

• daytime running light and front position light in the outer ring

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-32
Power consumption [W]	24.4 (low), 42-40.8 (high), 13.2-16.8 (DRL), 0.6-1.2 (position), 16.8 (turn)
Temperature range [° C]	-34 to 49
Protection class	IP67
Standards	ECE (6, 7, 87, 112), FMVSS (108)

Output

Brightness [lm], eff.	630 (Abblendl.), 1000 (Fernl.)
Beam pattern / lens	Abblend- und Fernlicht, Standlicht, Tagfahrlicht, Fahrtrichtungsanzeiger
Temperature range [° C]	-34 to 49

Mounting

Connector	Delphi MP150-6M (12124107)
Mating connector	Delphi MP150-6F (12052848)
Mounting	Built-in
Installation dimensions / diameter [mm]	129,32
Installation depth [mm]	51 (plus plug)
Reverse polarity protection	1
