Back in 2009 J.W. Speaker introduced model 8700. It was the world`s first road approved retrofit LED headlight. In 2012 this light evolved and became the Evolution series with the introduction of...

Close menu

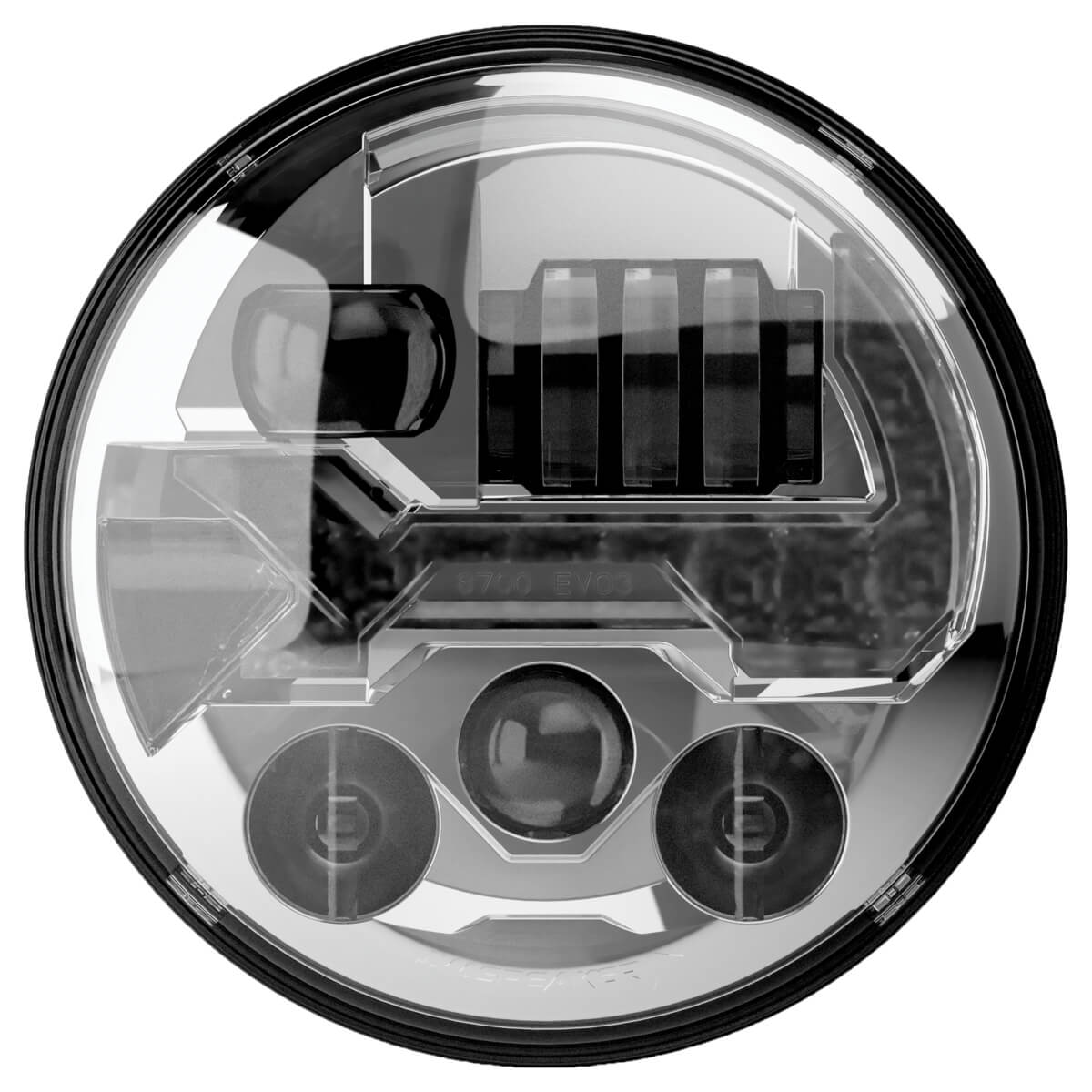

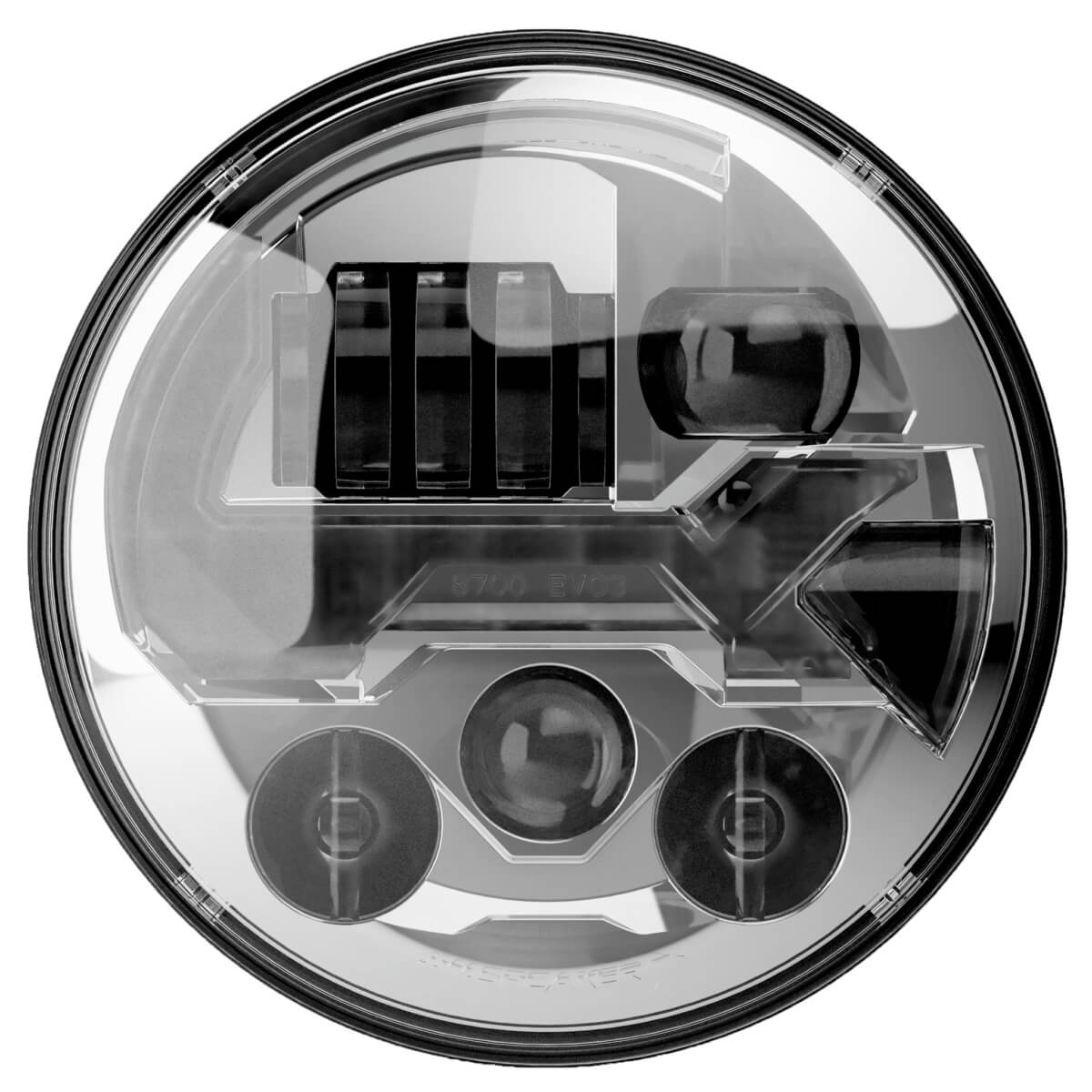

Model 87000 Evo 3

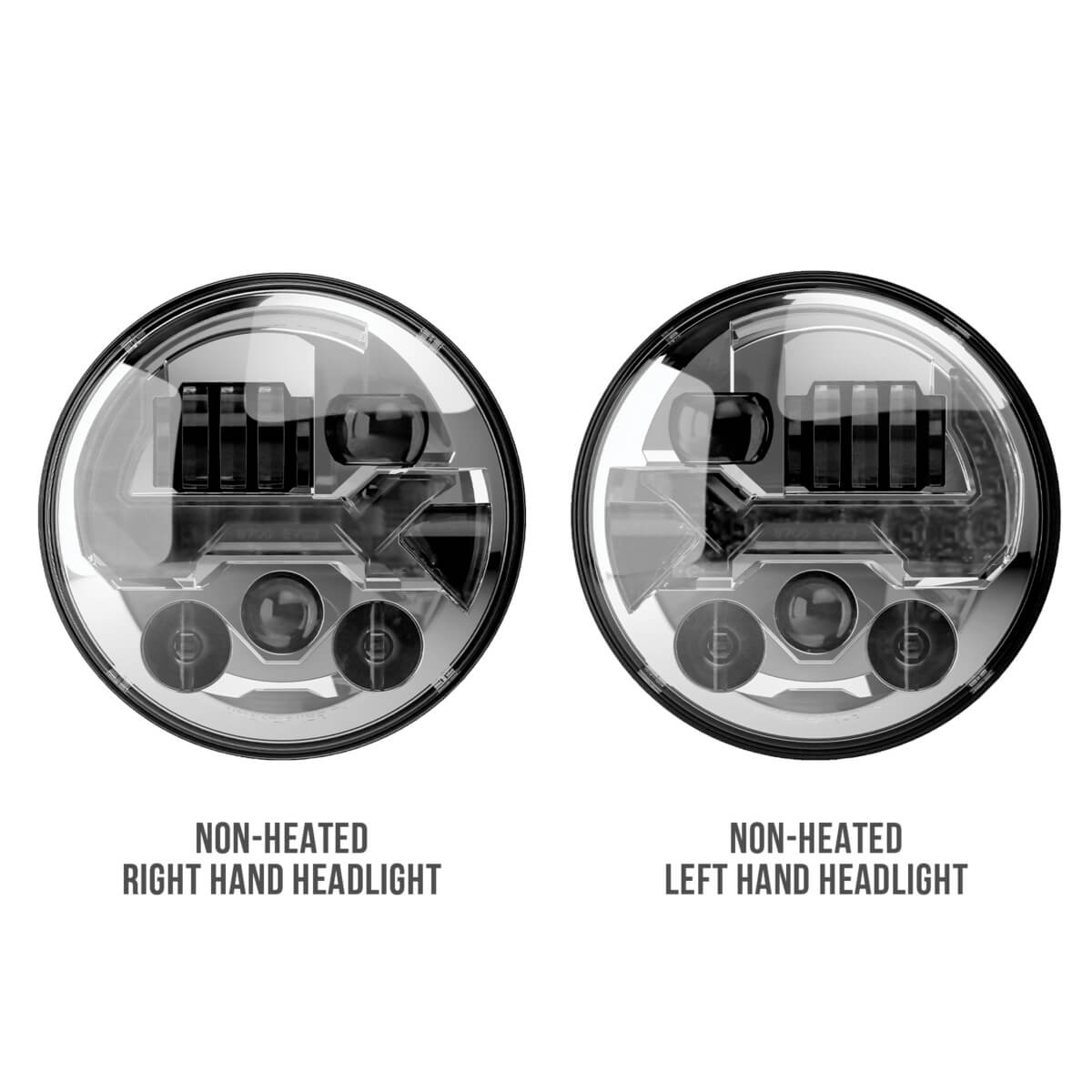

12 V, low and high beam, with DRL, front position light and turn signal, ECE road approval (Reg. 7, 87, 112), chromed bezel, 2 light kit (left and right)

Back in 2009 J.W. Speaker introduced model 8700. It was the world`s first road approved retrofit LED headlight. In 2012 this light evolved and became the Evolution series with the introduction of various options such as a choice of chrome or black bezel and with or without position light. The next generation Evolution 2 had improved beam patterns with the so-called "ComfortLite", which allowed a harmonious illumination of the street. And the Evolution-J models were specifically designed for the electrics of jeeps.

The actual model 8700 Evolution 3 combines the best fo all predecessors!

Bright, robust, rugged, and with a no-nonsense designed look!

Modell 8700 Evolution 3 is a 7 inch round 2D1 PAR56 replacement.

Also available with black bezel.

Factsheets

Standards

Operating voltage [V], nominal	12
Operating voltage [V], functional	9-16
Power consumption [W]	27.9 (low); 39.0 (high); 5.4 (position); 36.0 (turn); 36.0 (drl)
Temperature range [° C]	-40 to 65
Protection class	IP69K
Standards	ECE (Reg. 7, 87, 112), FMVSS (108 s10.1 XIX, 108 s10.1 XVIII, 108 s7.1 VI)
EMC (electromagnetic compatibility)	ECE (Reg. 10)
Transient protection	150 V @ 1 Hz-100 pulses

Output

Brightness [lm], theoretically	3020/3600 (Abblendl./Fernl.)
Brightness [lm], eff.	1201/1320 (Abblendl./Fernl.)
Brightness [cd]	24800/68800 (Abblendl./Fernl.)
Temperature range [° C]	-40 to 65
