LED headlight modell 8790 Adaptive 2 dual burn

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Adaptive Headlights has long been established in the automotive industry. But that was true only for cars until J.W. Speaker invented the Adaptive Series. With these outstanding headlights from...

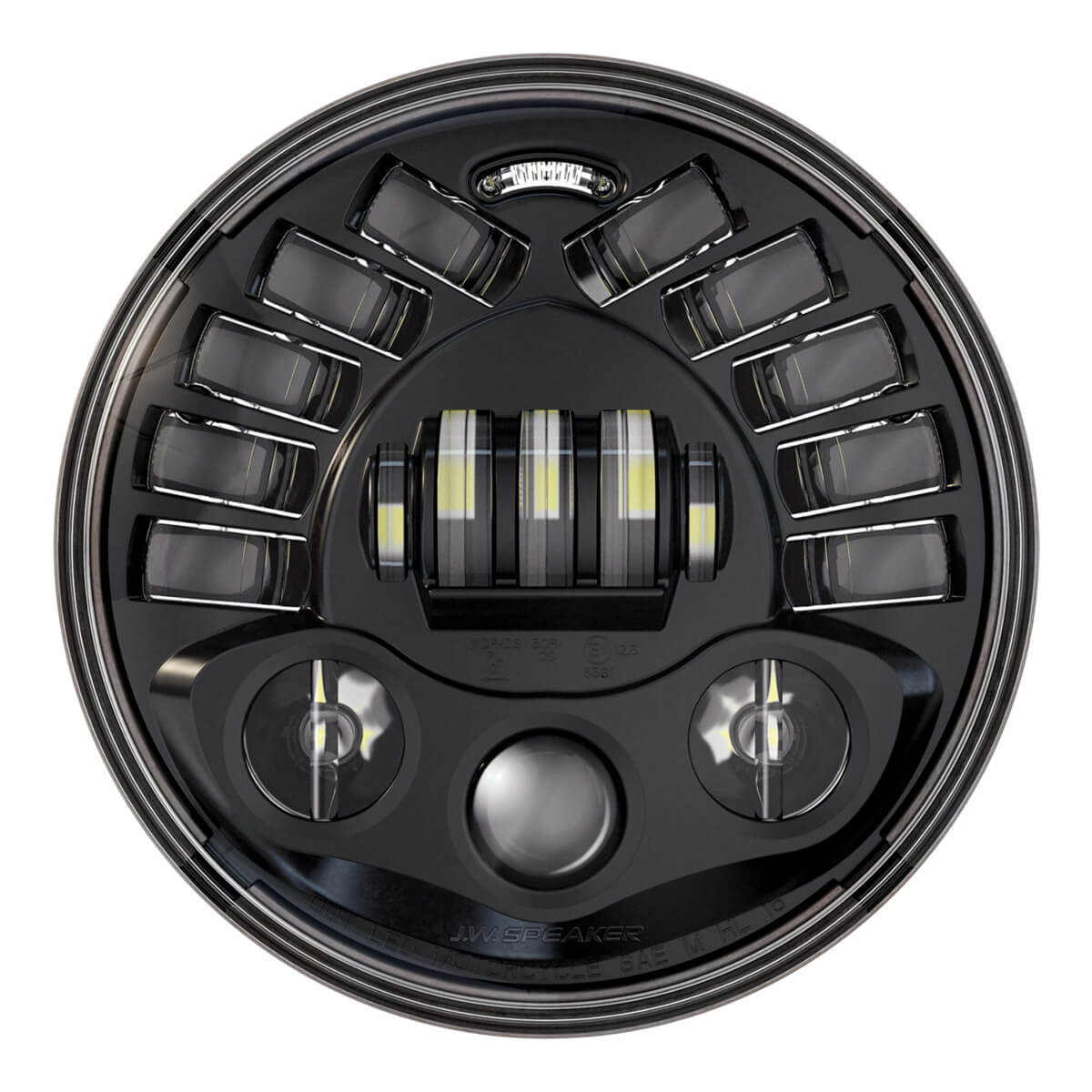

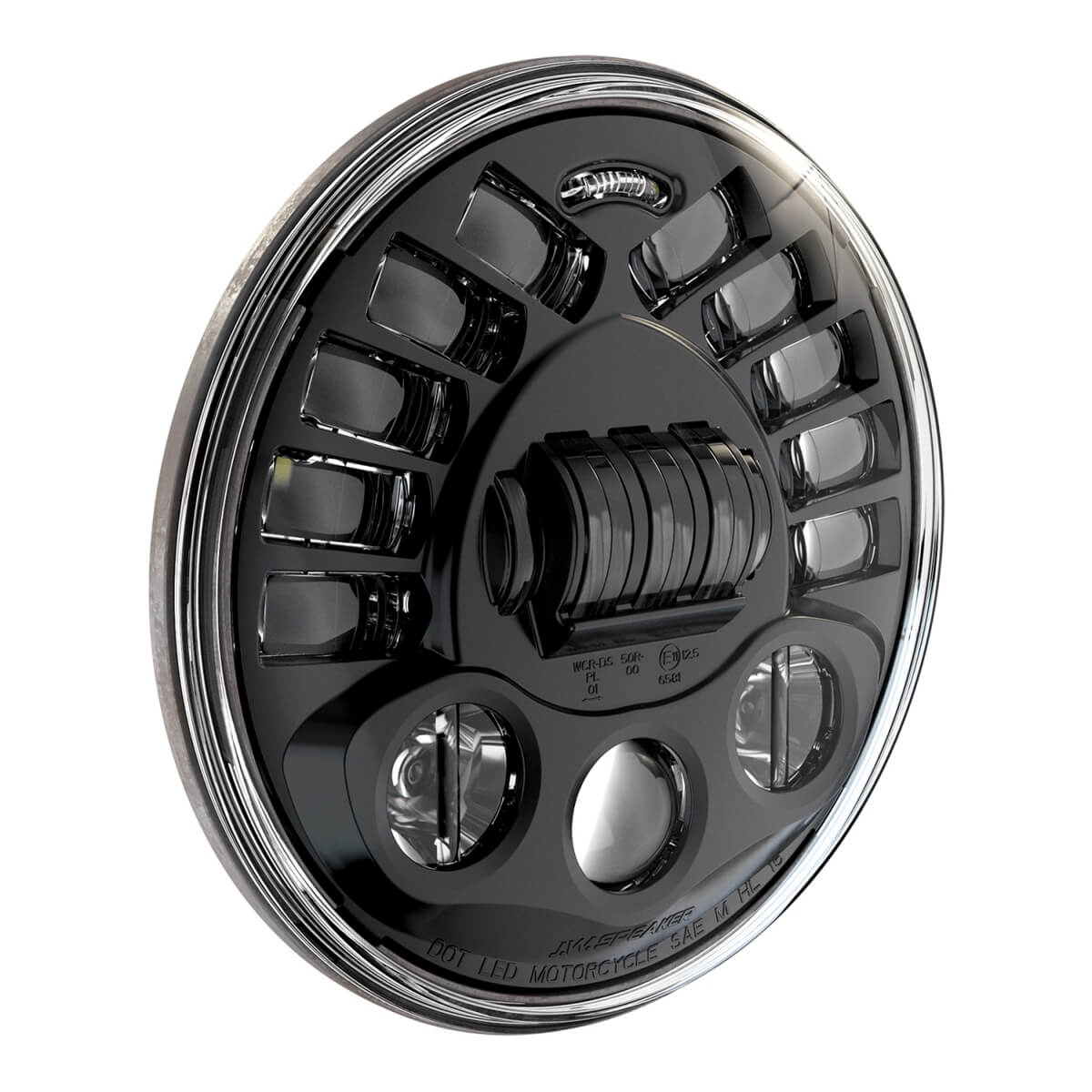

LED headlight modell 8790 Adaptive 2 dual burn
12 V, low and high beam (Dual Burn), adaptive cornering light, front position light, ECE road approval (Reg. 50, 113), black bezel
Adaptive Headlights has long been established in the automotive industry. But that was true only for cars until J.W. Speaker invented the Adaptive Series.

With these outstanding headlights from J.W. Speaker now even motorcycles benefit from a light that adapts to the road. When cornering the headlights always continue to go straight, but with the Adaptive Series additional LEDs are now switched on everytime the motorcycle goes into an inclined position. This LEDs illuminate the inside of the curve. No more driving into darkness!

With the development of the Adaptive 2 Series, these models are now "Dual Burn" headlights. The low beam remains active even when the high beam is switched on. The result is an even more harmonious illumination of the road.

Model 8790 Adaptive 2 is a 7 inch headlight, which can be exchanged for conventional headlights plug'n'play. Please see model 8690 Adaptive when a 5.75-inch housing is needed.
Factsheets
Standards
Operating voltage [V], nominal 12
Operating voltage [V], functional 9-16
Power consumption [W] 22.8 (low), 38,4 (high), 25.95 (cornering), 1.1 (position)
Temperature range [° C] -40 to 65
Protection class IP67
Standards ECE (Reg. 50, 113), FMVSS (108 XX)
EMC (electromagnetic compatibility) ECE (Reg. 10)
Output
Brightness [lm], theoretically 2025 (Abblendl.), 2250 (Fernl.)
Brightness [lm], eff. 850 (Abblendl.), 1150 (Fernl.)
Brightness [cd] 11500 (Abblendl.), 48000 (Fernl.)
Beam pattern / lens Abblend- und Fernlicht, Kurvenlicht, Positionslicht
Temperature range [° C] -40 to 65
Mounting
Connector H4 plug
Mating connector H4 (AMP 172615-2)
Mounting Built-in
Installation dimensions / diameter [mm] 177,2
Reverse polarity protection 1
Functions
Low beam
High beam
Parking light
Adaptive headlights
Road approval
