Item no.: FS-1717-88313

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

The third generation! Even though the main reason for the update of Model 8800 Evolution to the new Evolution 2 was the introduction of the heated lens, it would be a connotation not to provide...

Close menu

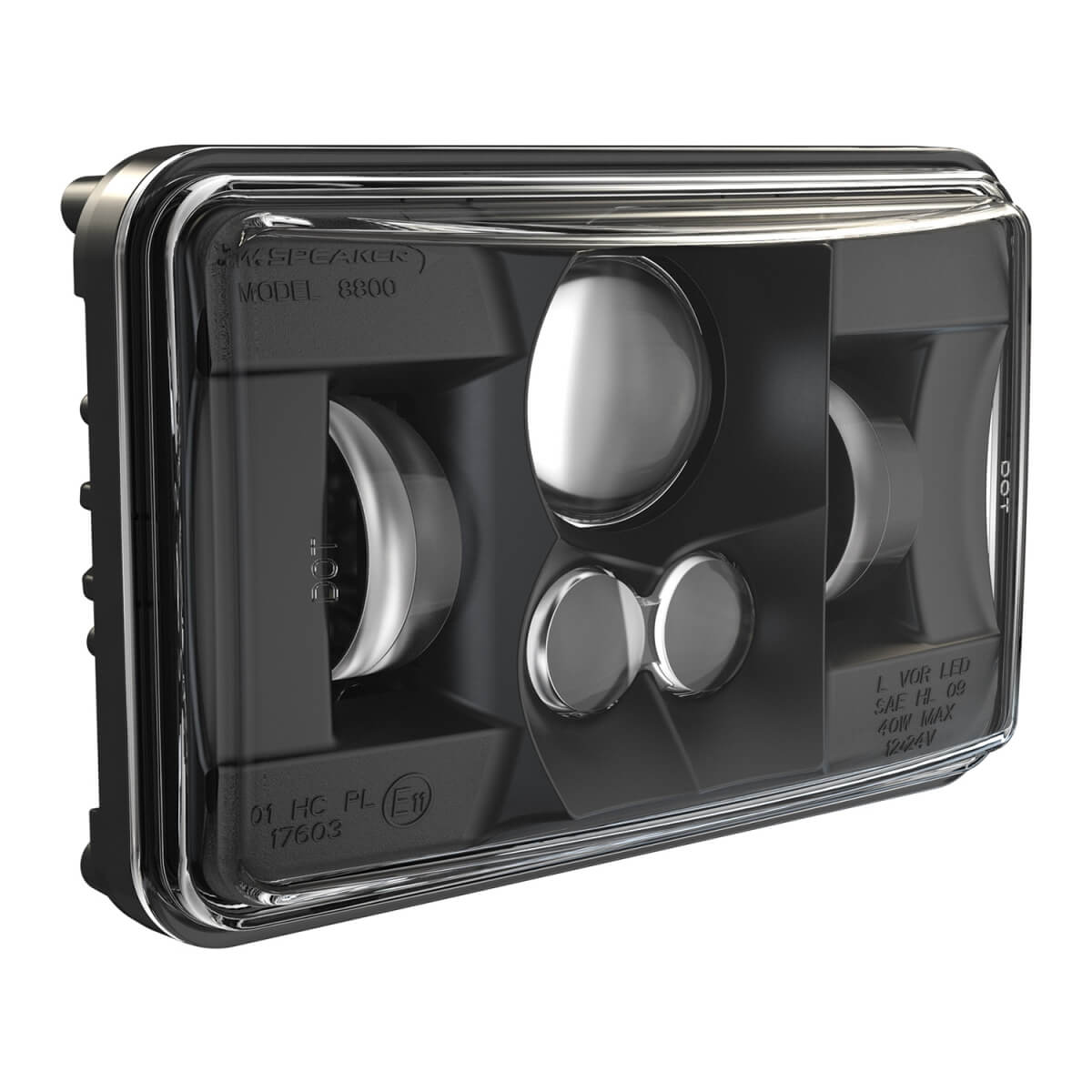

LED headlight model 8800 Evolution 2

12-24 V, low beam, ECE road approval (Reg. 112), black bezel

The third generation!

Even though the main reason for the update of Model 8800 Evolution to the new Evolution 2 was the introduction of the heated lens, it would be a connotation not to provide the unheated variant with the improved optics. A further improved beam pattern, as well as a slightly increased brightness are the result.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	9-32
Power consumption [W]	25.2-24.0
Temperature range [° C]	-40 to 65
Protection class	IP69K
Standards	ECE (Reg. 112), FMVSS (108)

Output

Brightness [lm], theoretically	2830
Brightness [lm], eff.	782
Brightness [cd]	29800
Temperature range [° C]	-40 to 65
