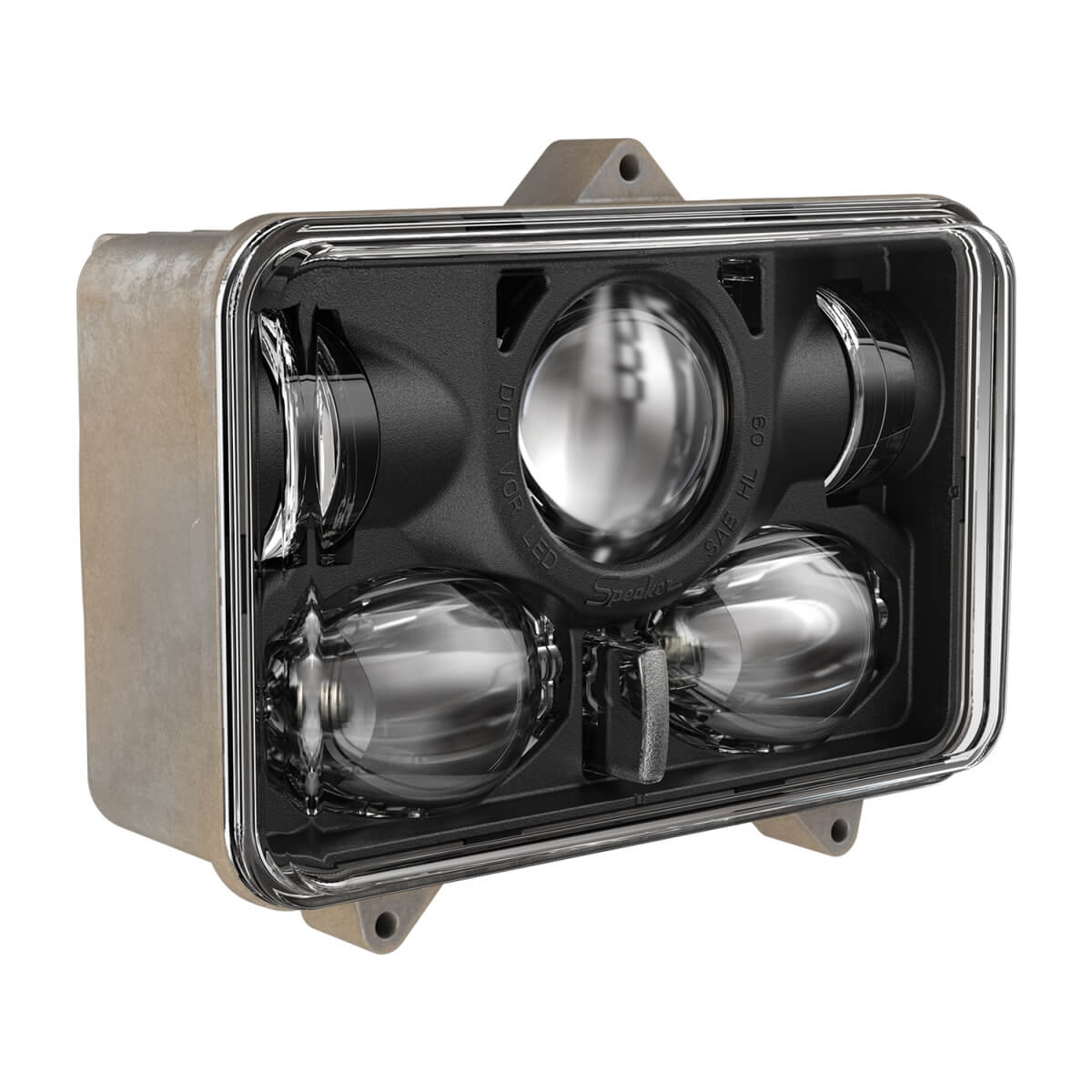

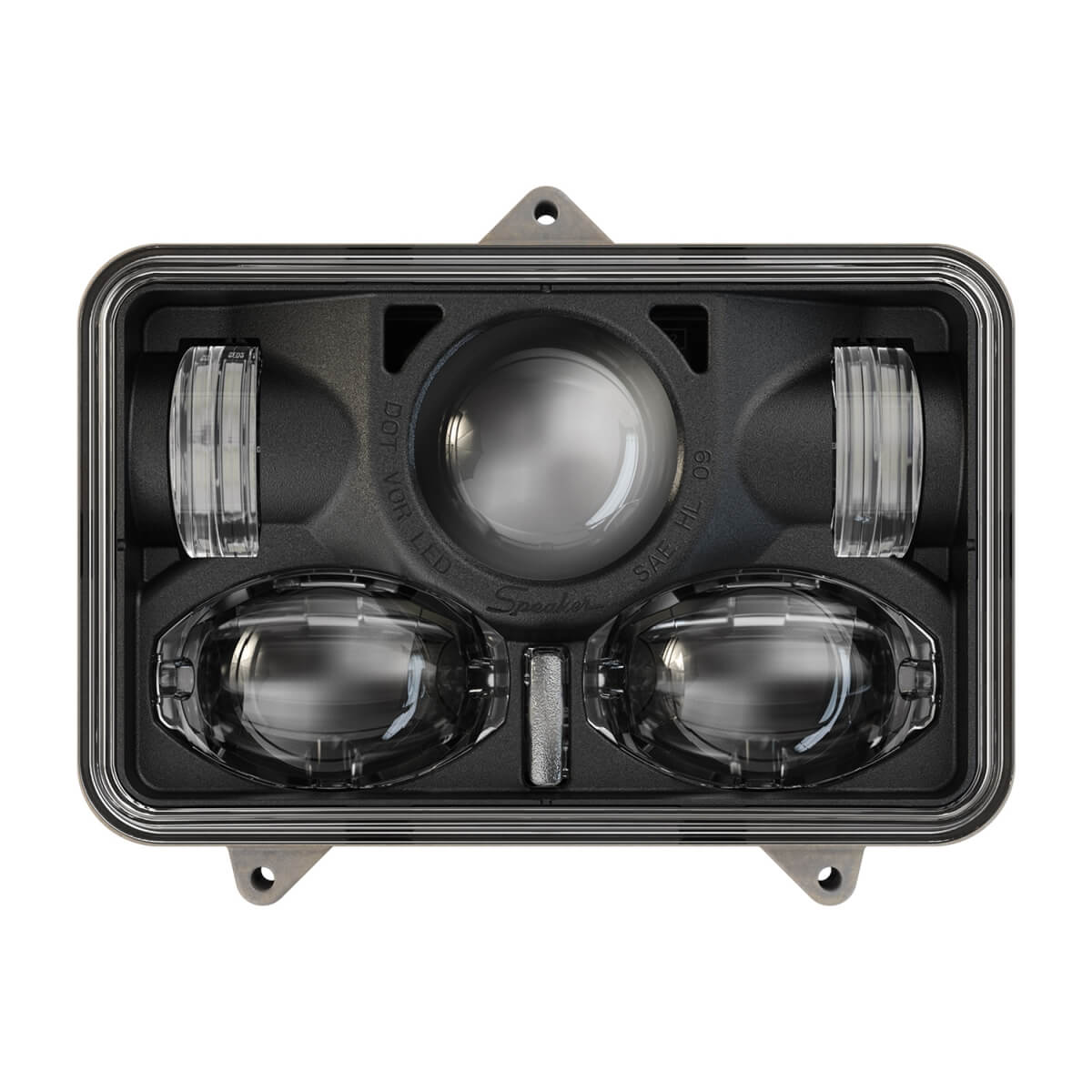

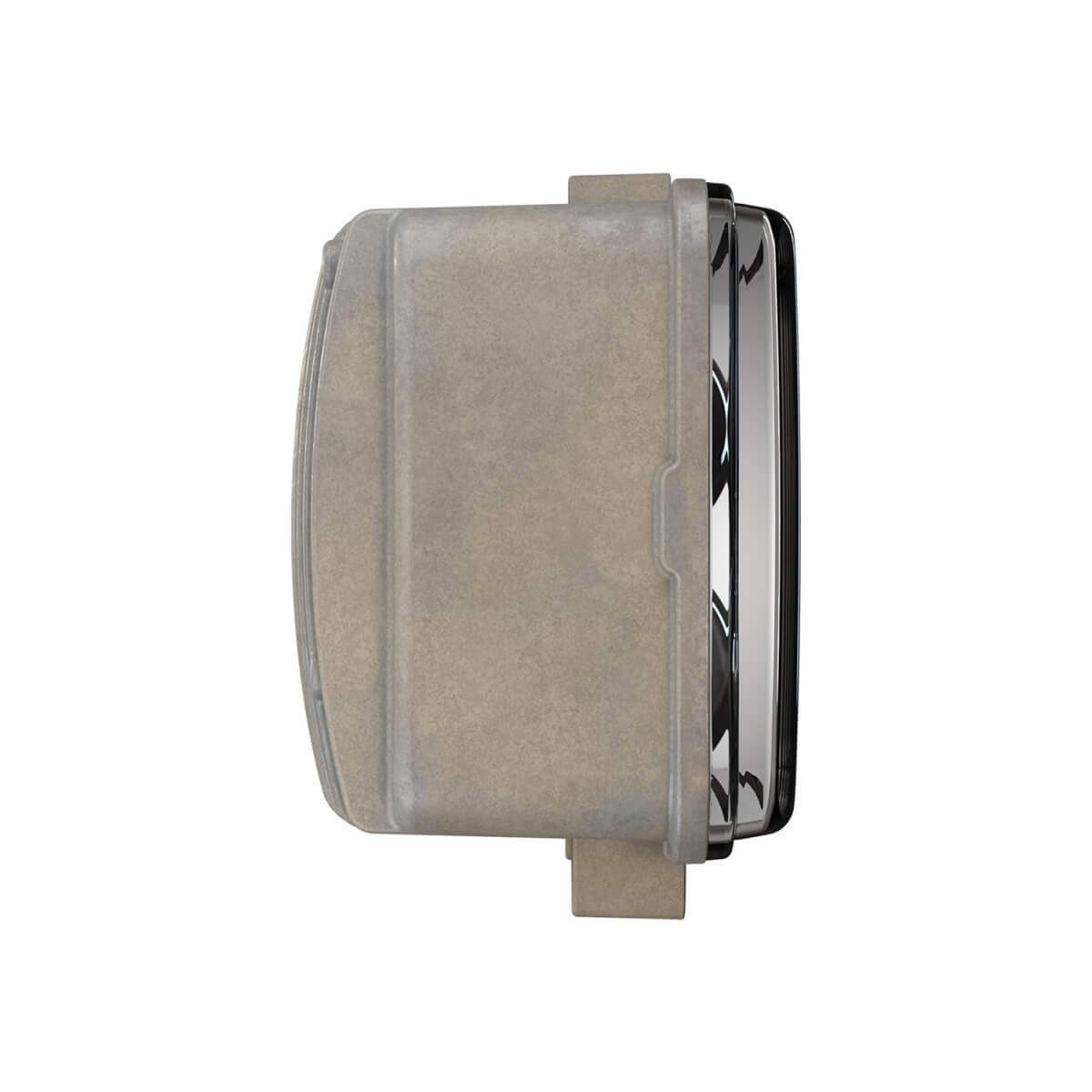

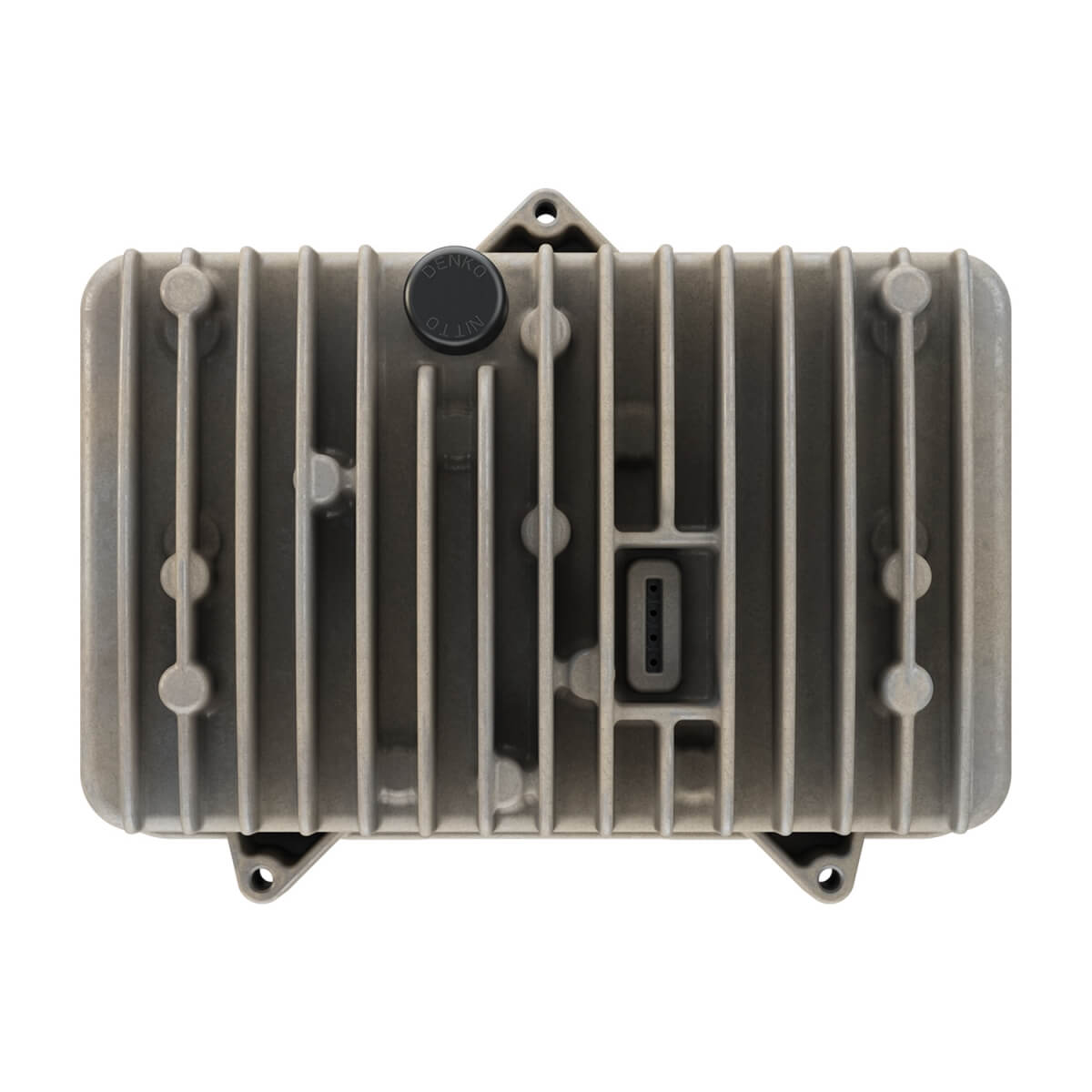

LED headlight model 8820

12-24 V, low and high beam, with front position, ECE road approval (Reg. 7, 112), 3 point mount

Model 8820 has been designed for military verhicles and offers heavy-duty construction. The harmonic beam pattern offers a low beam of 645 effective lumen and a high beam of 755 effective lumen.

In addition to the 3-point mount there is also a panel mount version.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-30
Power consumption [W]	13.32-23.04 (low), 25.68-23.72 (high), 0.67-1.56 (park)
Protection class	IP67
Standards	ECE (Reg. 7, 112), FMVSS (108 XIX, 108 XVII)

Output

Brightness [lm], theoretically	1850 (Abblendl.), 2100 (Fernl.)
Brightness [lm], eff.	645 (Abblendl.), 755 (Fernl.)
Beam pattern / lens	Abblend- und Fernlicht, Standlicht
