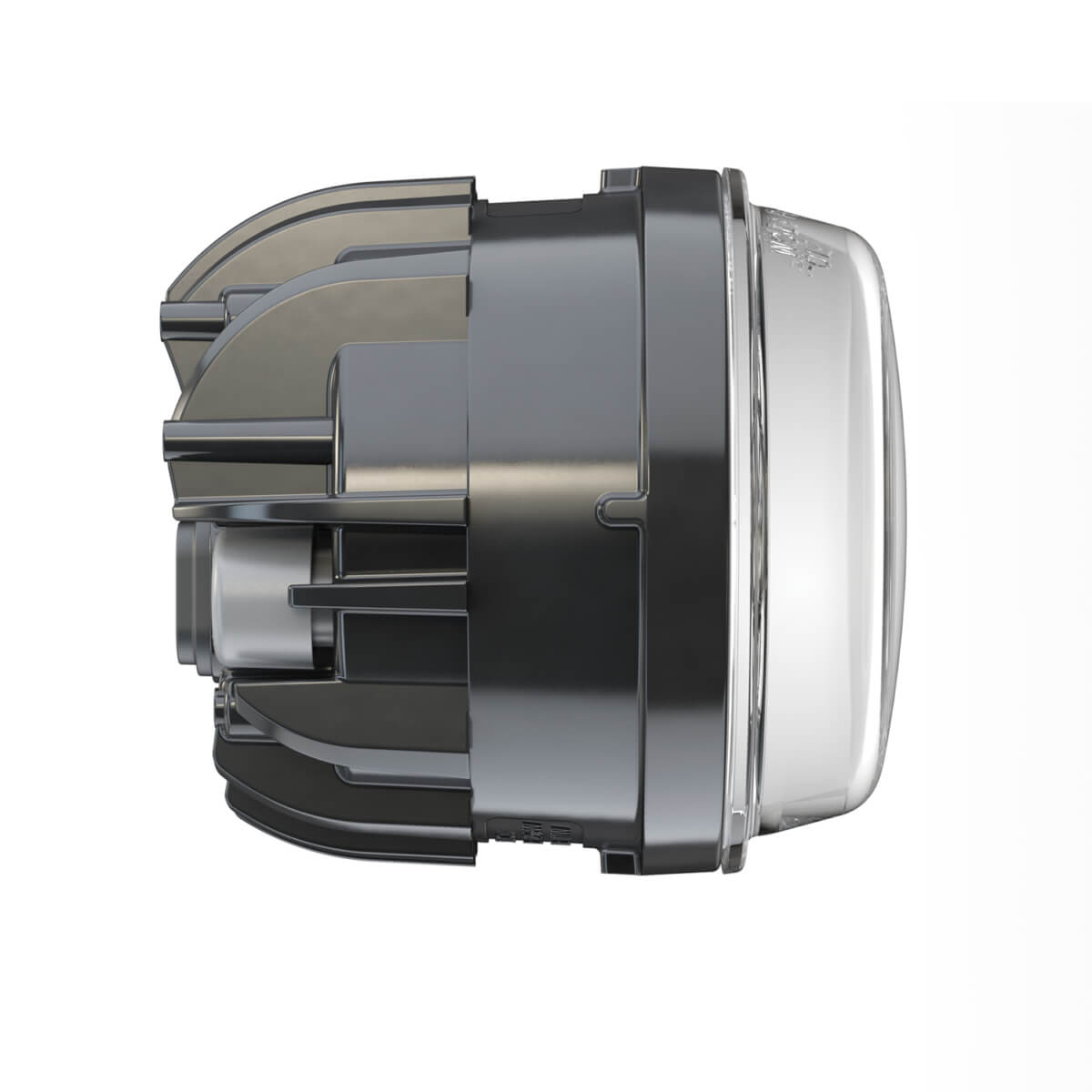

Preview: FS-1906_Fahrscheinwerfer_93.jpg

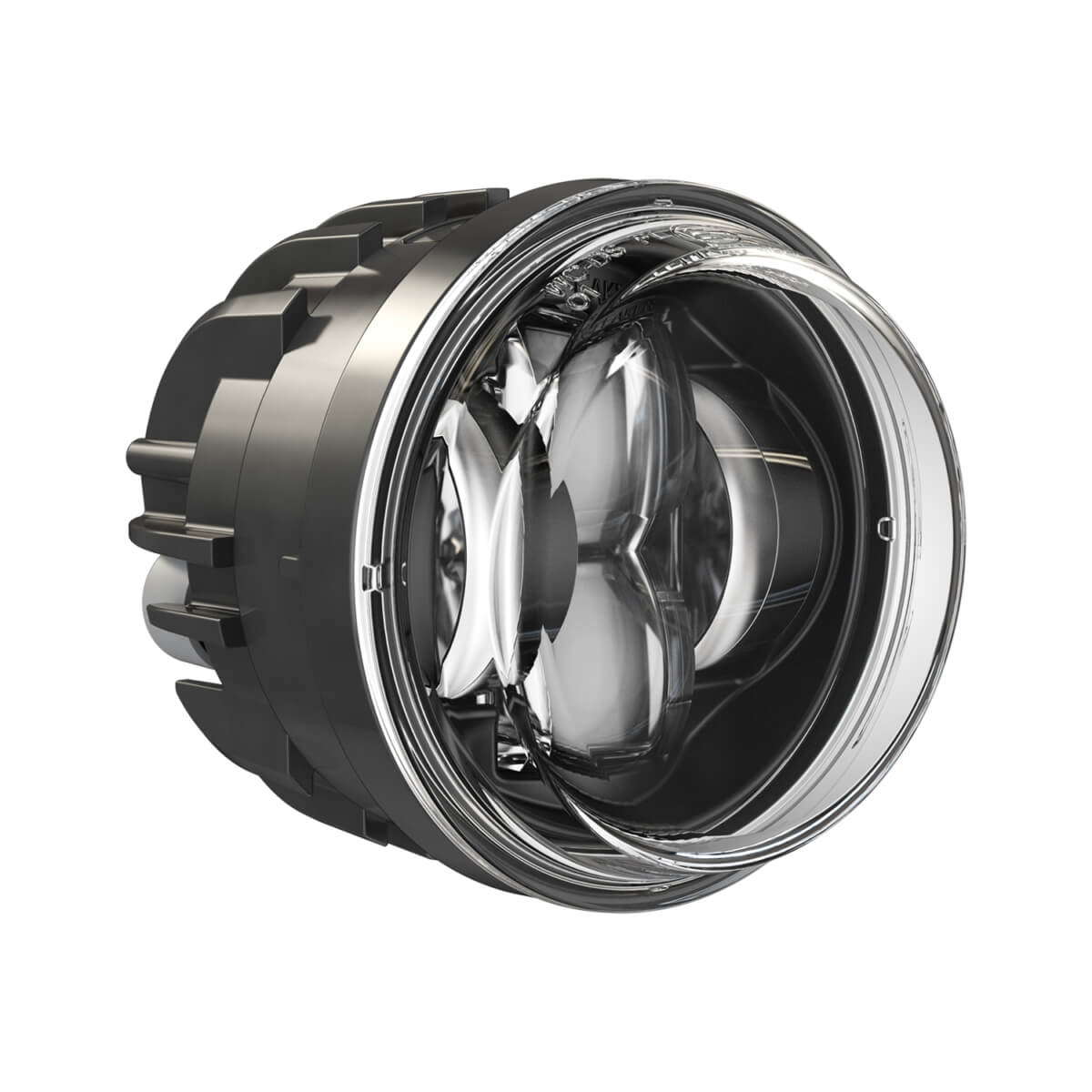

Preview: FS-1906_Fahrscheinwerfer_93_3.jpg

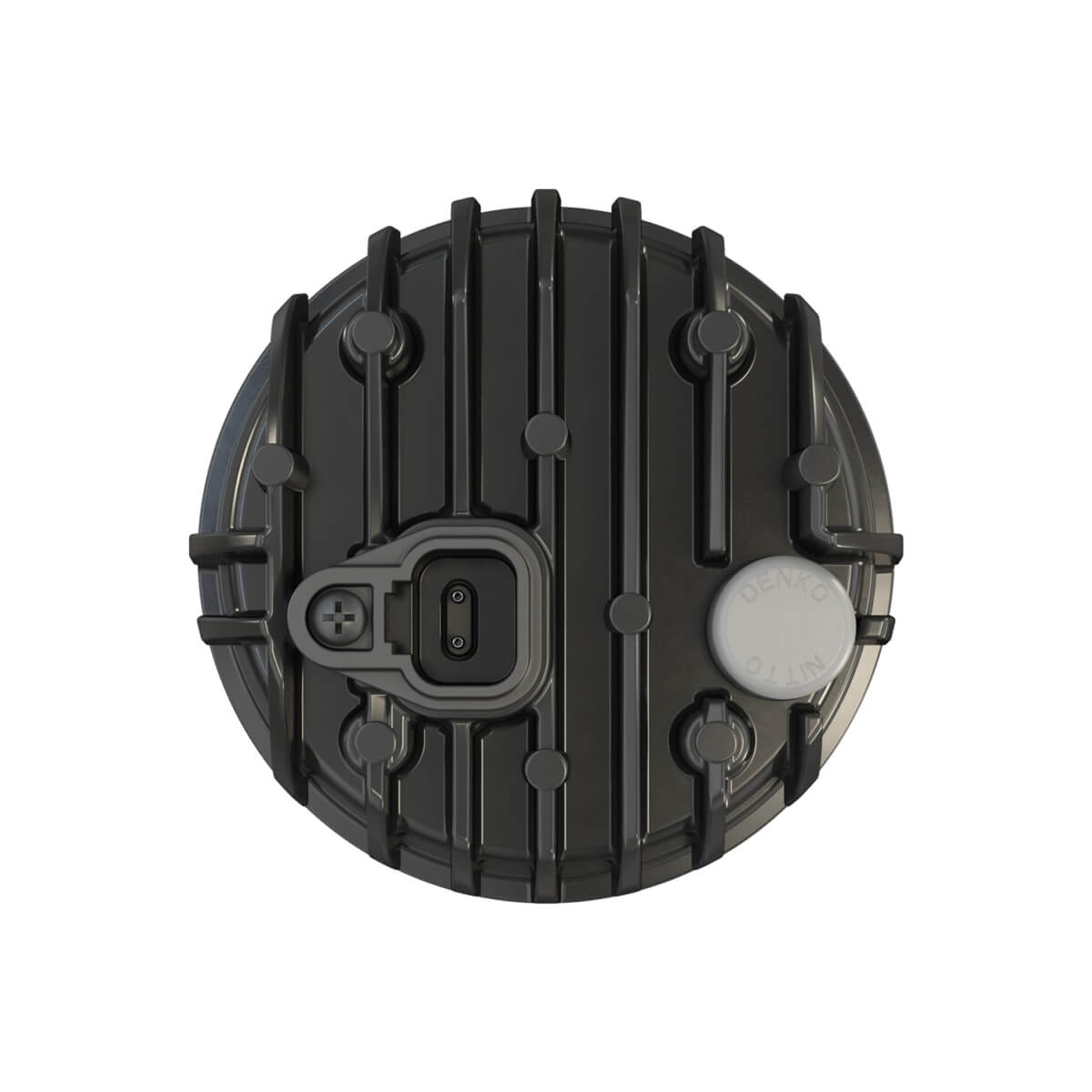

Preview: FS-1906_Fahrscheinwerfer_93_2.jpg

Item no.: FS-1906-93311

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

The Model 93 family from J.W. Speaker sets the new standard for 90 mm headlights. They can easily be used as a drop-in replacement for OEM headlights, or in the individual equipping of vehicles....

Close menu

LED headlight model 93

12-24 V, low beam, ECE road approval (Reg. 112, 113), DOT

The Model 93 family from J.W. Speaker sets the new standard for 90 mm headlights. They can easily be used as a drop-in replacement for OEM headlights, or in the individual equipping of vehicles.

Model 93 is available as low beam, high beam, fog light and as turn signal. With a variety of mounting brackets, including single and double mounts, as well as 3-point mounting brackets for 1.5mm and 3mm thick mounting frames.

All variants have a robust 90mm standard aluminium housing. This common form factor is used in buses, RVs, tractors, trams, motorcycles and various special vehicles.

Features:

- Retrofit for standard 90mm headlights

- 100% ECE- and DOT-compliant road approval.

- Can be used as both built-in and pedestal mount headlight due to separate mounting brackets.

- Meets the tough IP67 and IP69K criteria for the best protection against dust and water ingress.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-31
Power consumption [W]	23.64
Temperature range [° C]	-40 to 65
Standards	ECE (Reg. 112)

Output

Brightness [lm], theoretically	1910
Brightness [lm], eff.	575
Brightness [cd]	18500
Temperature range [° C]	-40 to 65
