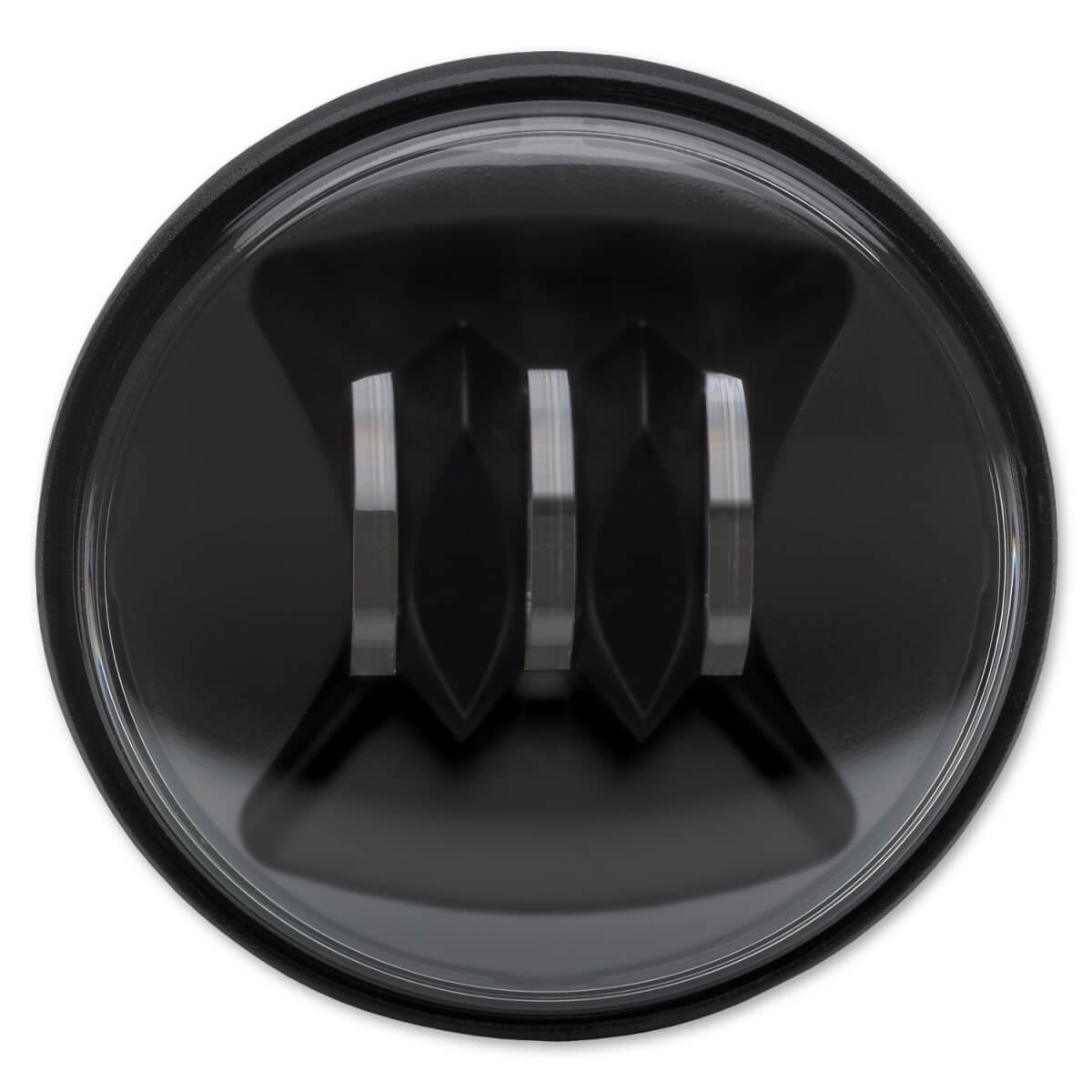

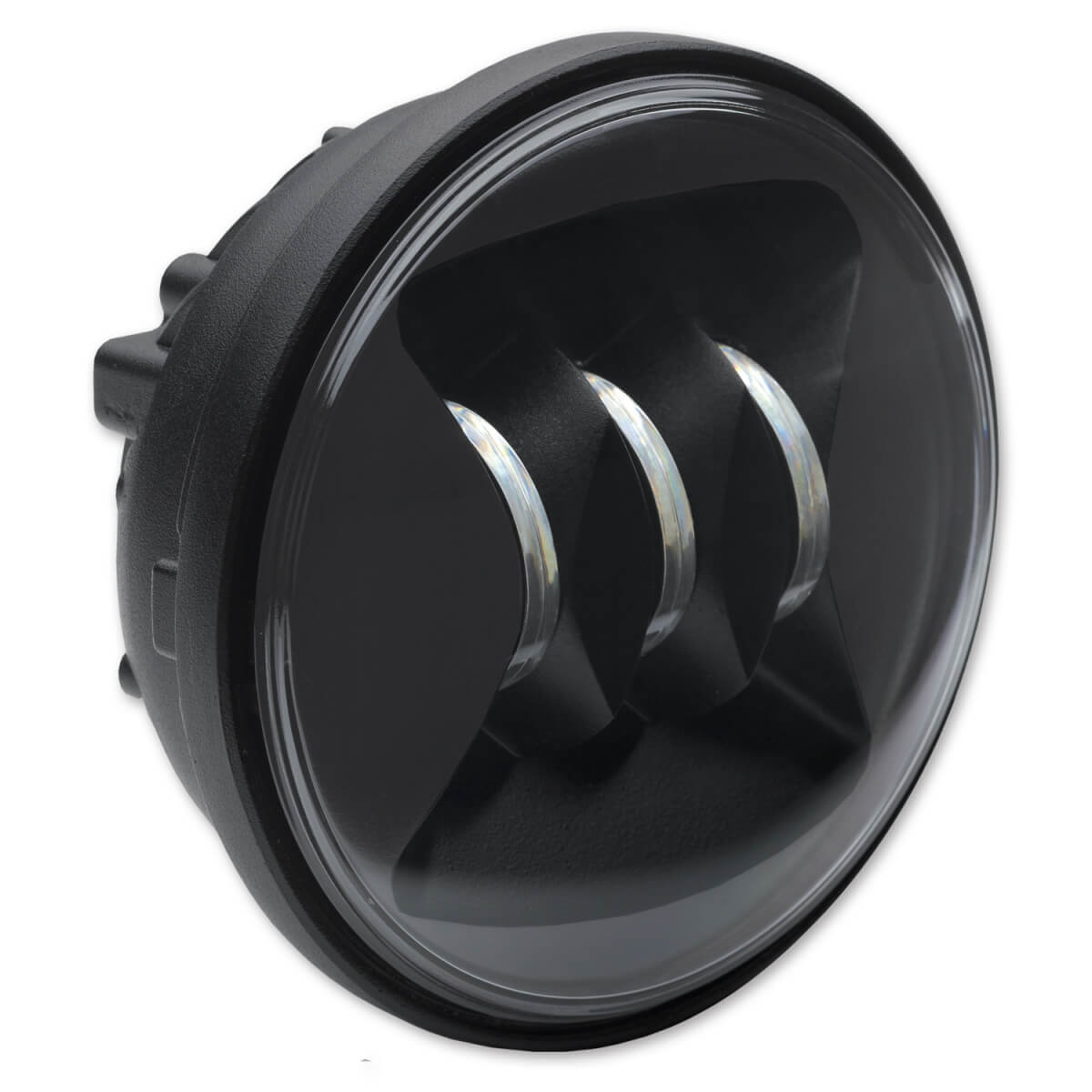

LED fog light model 6045 Mk II

12 V, ECE road approval (Reg. 19), black bezel

Unchanged look, new feel!

The well established LED fog light Model 6045 has received a meaningful update. In the version Mk II not only the sealing against rough weather conditions has been further improved. Above all, the revision of the electronics and the use of more efficient components results in a significantly lower power consumption. While the predecessor has taken 2.15 A from the electrical system (25.8 W) the update only takes 0.75 A (9 W). And at the same brightness!

Factsheets

Standards

Operating voltage [V], nominal	12
Operating voltage [V], functional	9-18
Power consumption [W]	9
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 19), SAE (J583)
Transient protection	150 V @ 1 Hz-100 pulses

Output

Brightness [lm], theoretically	750
Brightness [lm], eff.	500
Beam pattern / lens	Nebellicht
Temperature range [° C]	-40 to 65

Mounting

Connector	Delphi MP280-2M (12059450-B)
Mating connector	Delphi MP280-2F (12124819)
Mounting	Built-in
Installation dimensions / diameter [mm]	97
Installation depth [mm]	31 (plus Kabel)
Reverse polarity protection	1
