Model 8700 Evo 3 SmartHeat

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Back in 2009 J.W. Speaker introduced model 8700. It was the world`s first road approved retrofit LED headlight. In 2012 this light evolved and became the Evolution series with the introduction of...

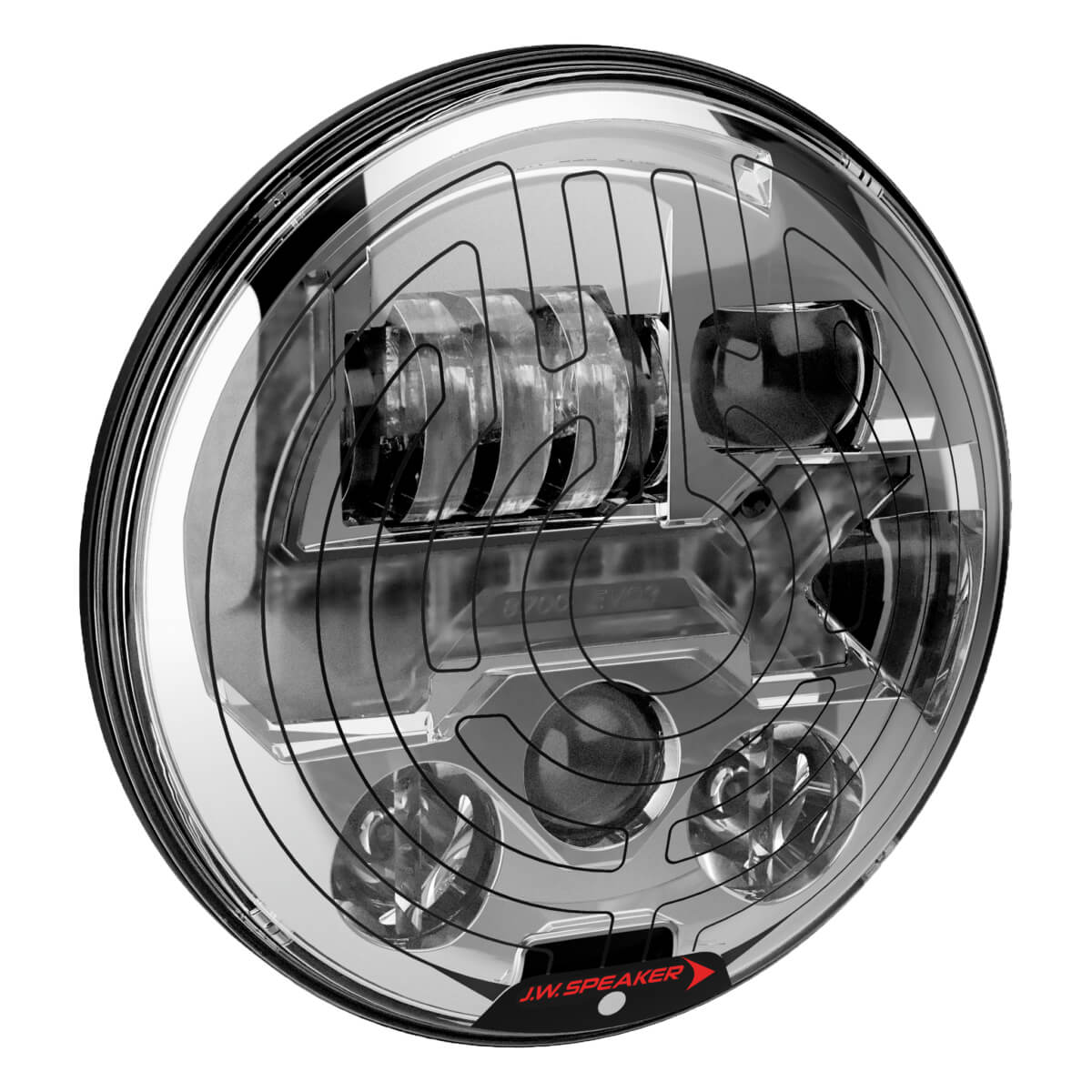

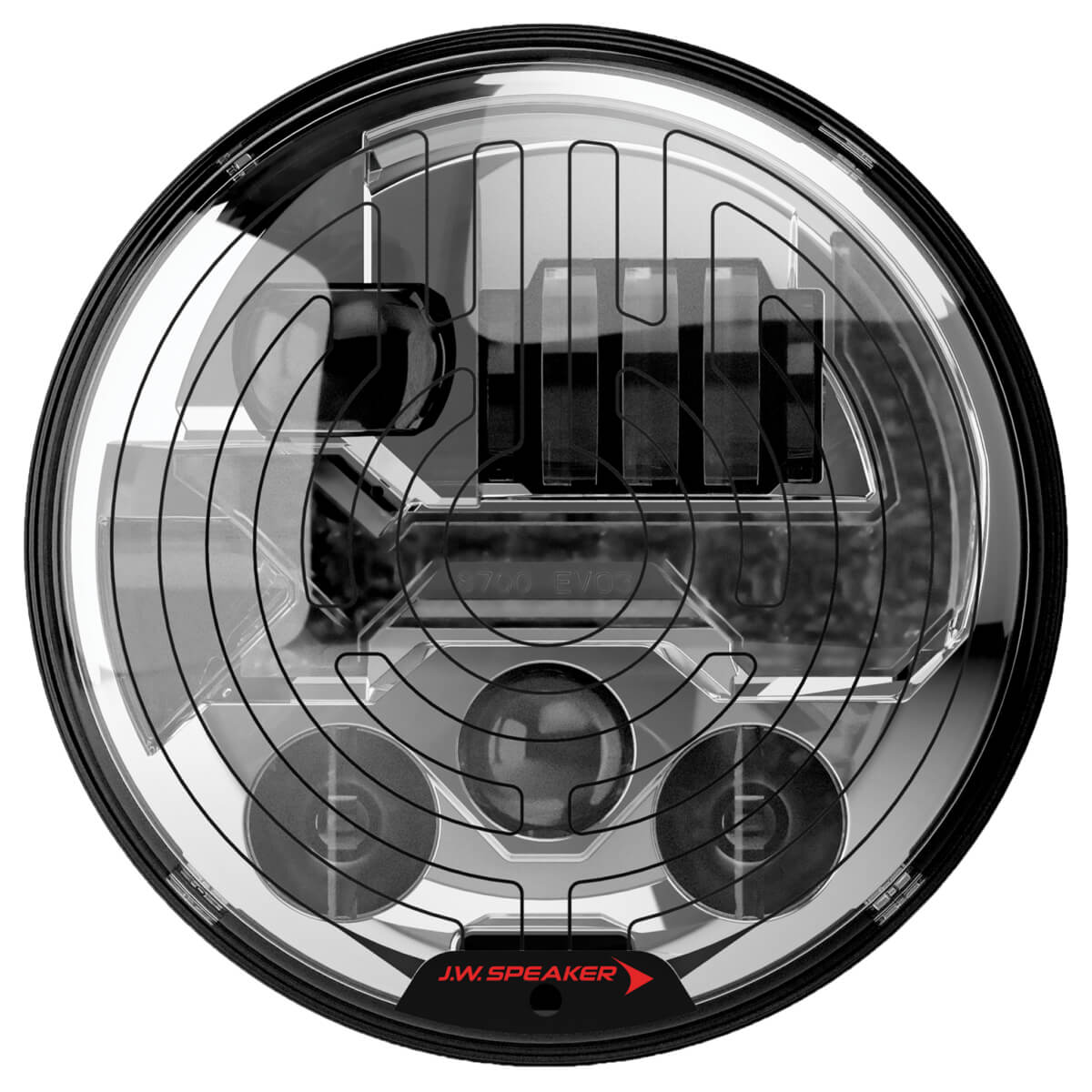

Model 8700 Evo 3 SmartHeat
12 V, low and high beam, with DRL, front position light and turn signal, ECE road approval (Reg. 7, 87, 112), with heated lens, chromed bezel, Dual Burn, left
Back in 2009 J.W. Speaker introduced model 8700. It was the world`s first road approved retrofit LED headlight. In 2012 this light evolved and became the Evolution series with the introduction of various options such as a choice of chrome or black bezel and with or without position light. The next generation Evolution 2 had improved beam patterns with the so-called "ComfortLite", which allowed a harmonious illumination of the street. And the Evolution-J models were specifically designed for the electrics of jeeps.

The actual model 8700 Evolution 3 combines the best fo all predecessors!

Bright, robust, rugged, and with a no-nonsense designed look!

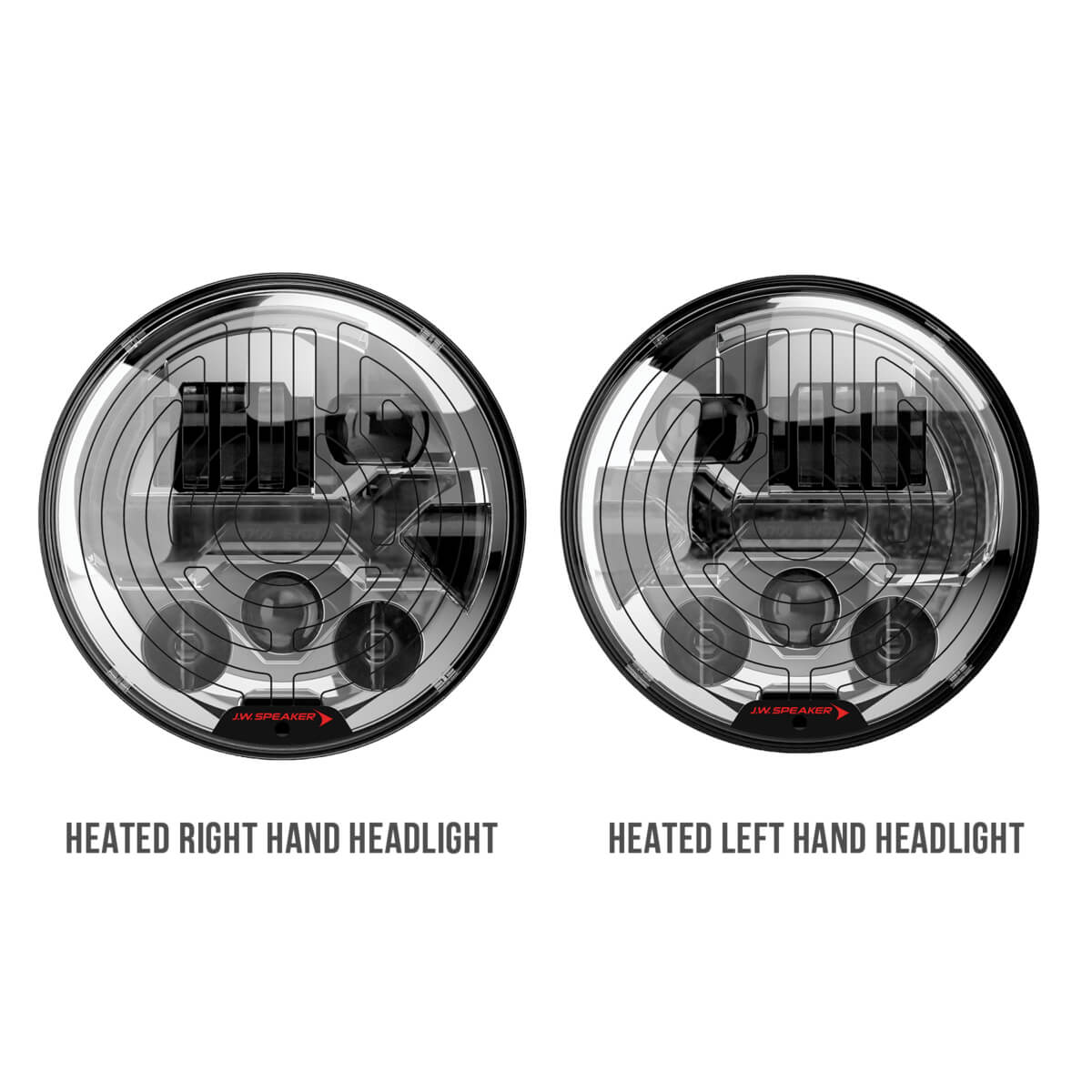

This special version of the headlight again features a heated front lense, which effectively prevents fogging of the lens even in cloudy and cold weather. And in harsh winter conditions it always ensures ice-free light!

Modell 8700 Evolution 3 is a 7 inch round 2D1 PAR56 replacement.
Factsheets
Standards
Operating voltage [V], nominal 12
Operating voltage [V], functional 9-16
Power consumption [W] 27.9 (low); 39.0 (high); 5.4 (position); 36.0 (turn); 36.0 (drl)
Temperature range [° C] -40 to 65
Protection class IP69K
Standards ECE (Reg. 7, 87, 112), FMVSS (108 s10.1 XIX, 108 s10.1 XVIII, 108 s7.1 VI)
EMC (electromagnetic compatibility) ECE (Reg. 10)
Transient protection 150 V @ 1 Hz-100 pulses
Output
Brightness [lm], theoretically 3020/3600 (Abblendl./Fernl.)
Brightness [lm], eff. 1201/1320 (Abblendl./Fernl.)
Brightness [cd] 24800/68800 (Abblendl./Fernl.)
Temperature range [° C] -40 to 65
Mounting
Connector H4 plug + bare leads
Mounting Built-in
Reverse polarity protection 1
Functions
Low beam
High beam
Daytime running lights
Parking light
Turn signal
Road approval
