Item no.: FS-1374-86341

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

By using high quality LEDs with superior performance model 8630 Evolution offers a significantly improved performance than its predecessor. This unique looking headlights combined low and high...

Close menu

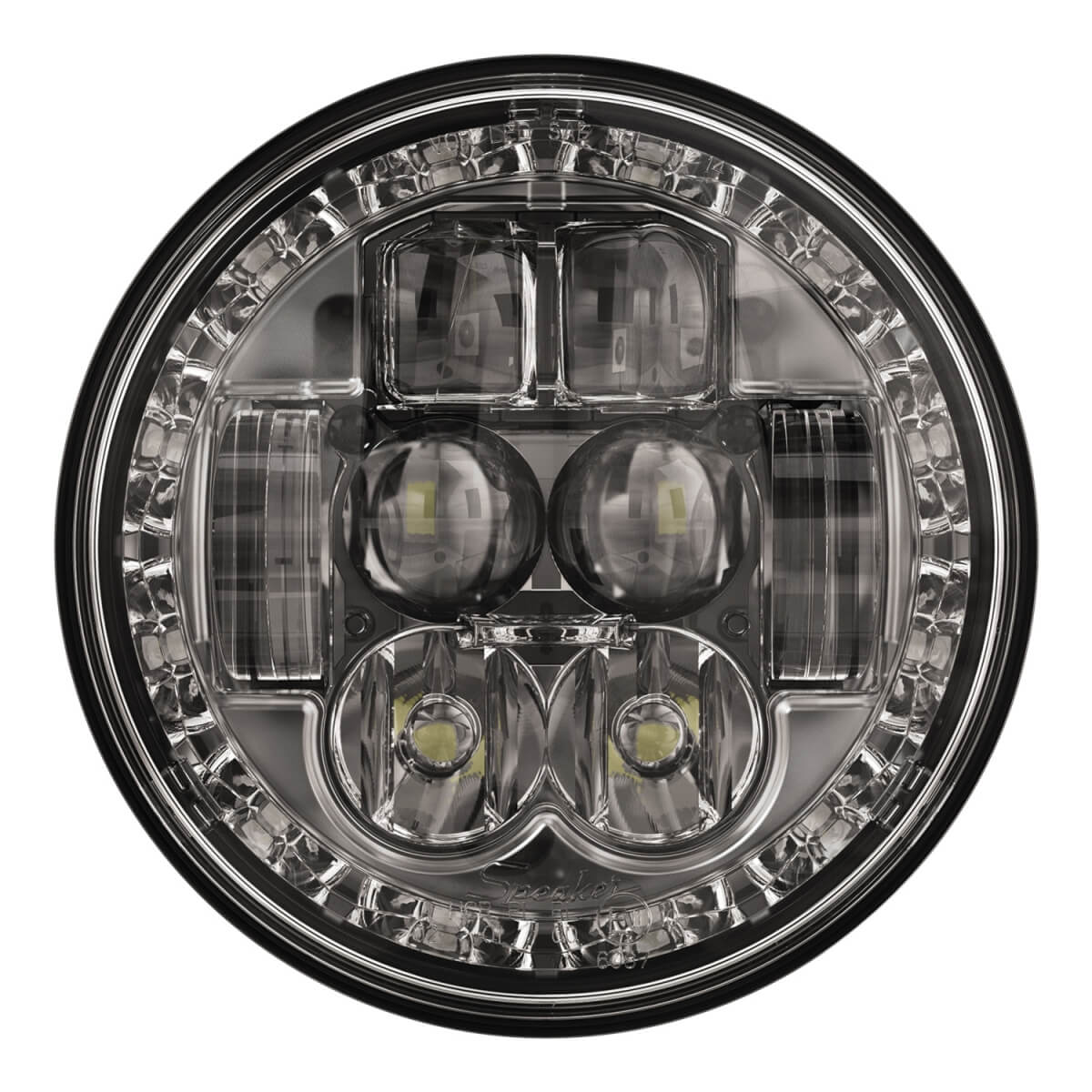

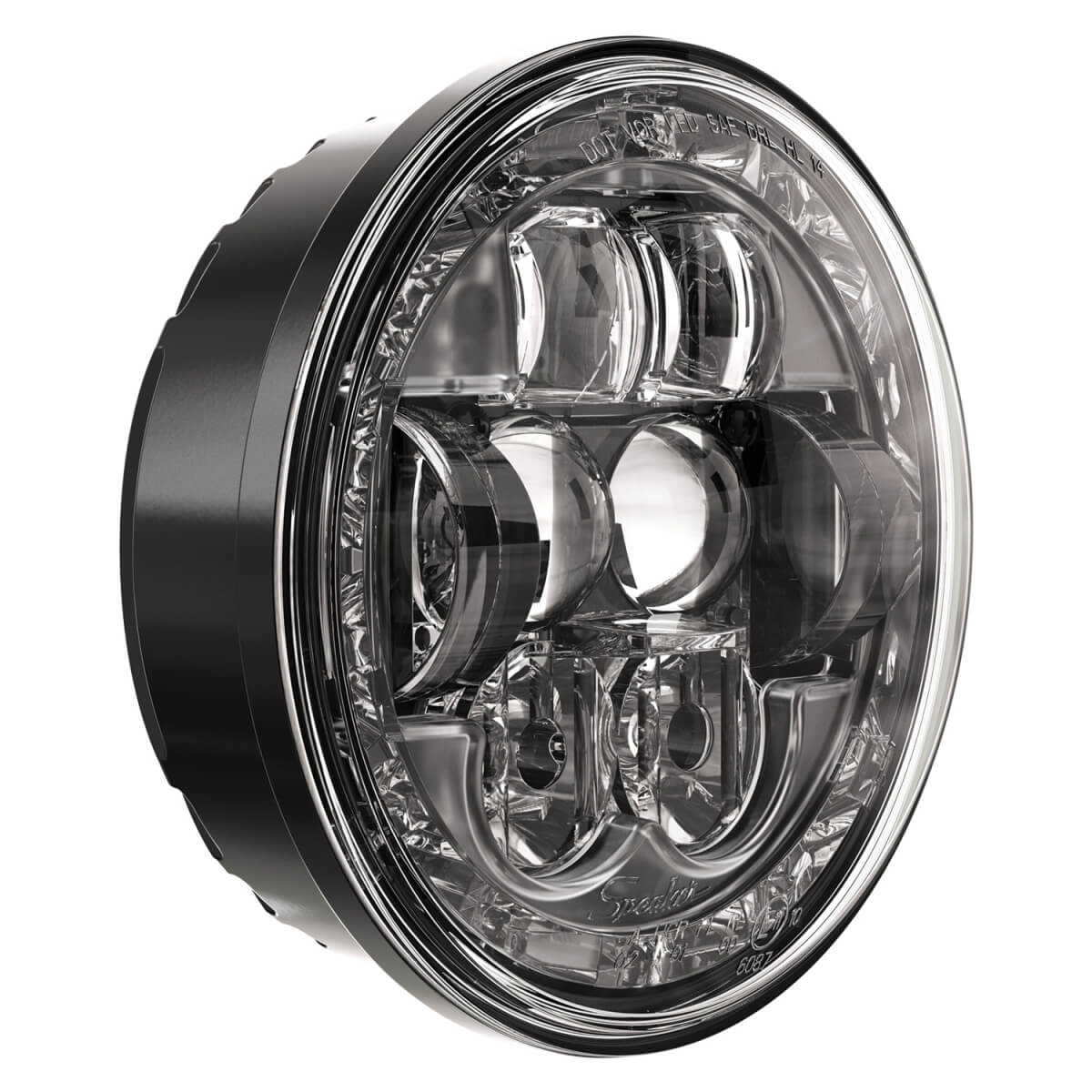

LED headlight model 8630 Evolution

12-24 V, low and high beam, with daytime running light and front position, ECE road approval (Reg. 112)

By using high quality LEDs with superior performance model 8630 Evolution offers a significantly improved performance than its predecessor.

This unique looking headlights combined low and high beam with daytime running light (DRL) and front position light. It can be used as a retrofit solution for all 5.75-inch headlights.

Features:

• A combined low and high beam

• New design with increased brightness (more than 50 percent)

• Easy plug & play installation with Delphi connector

• Daytime running light and front position light in the outer ring

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	10-32
Power consumption [W]	26.4 (low), 42 (high), 10.8 (DRL), 1.08 (position)
Temperature range [° C]	-34 to 49
Protection class	IP67
Standards	ECE (Reg. 7, 87, 112), FMVSS (108-XVIII), SAE (J222, J2087)
Transient protection	150 V @ 1 Hz-10 pulses

Output

Brightness [lm], eff.	630 (Abblendl.), 1000 (Fernl.)
Brightness (reference ID)	12,5
Beam pattern / lens	Abblend- und Fernlicht, Standlicht, Tagfahrlicht
Temperature range [° C]	-34 to 49

Mounting

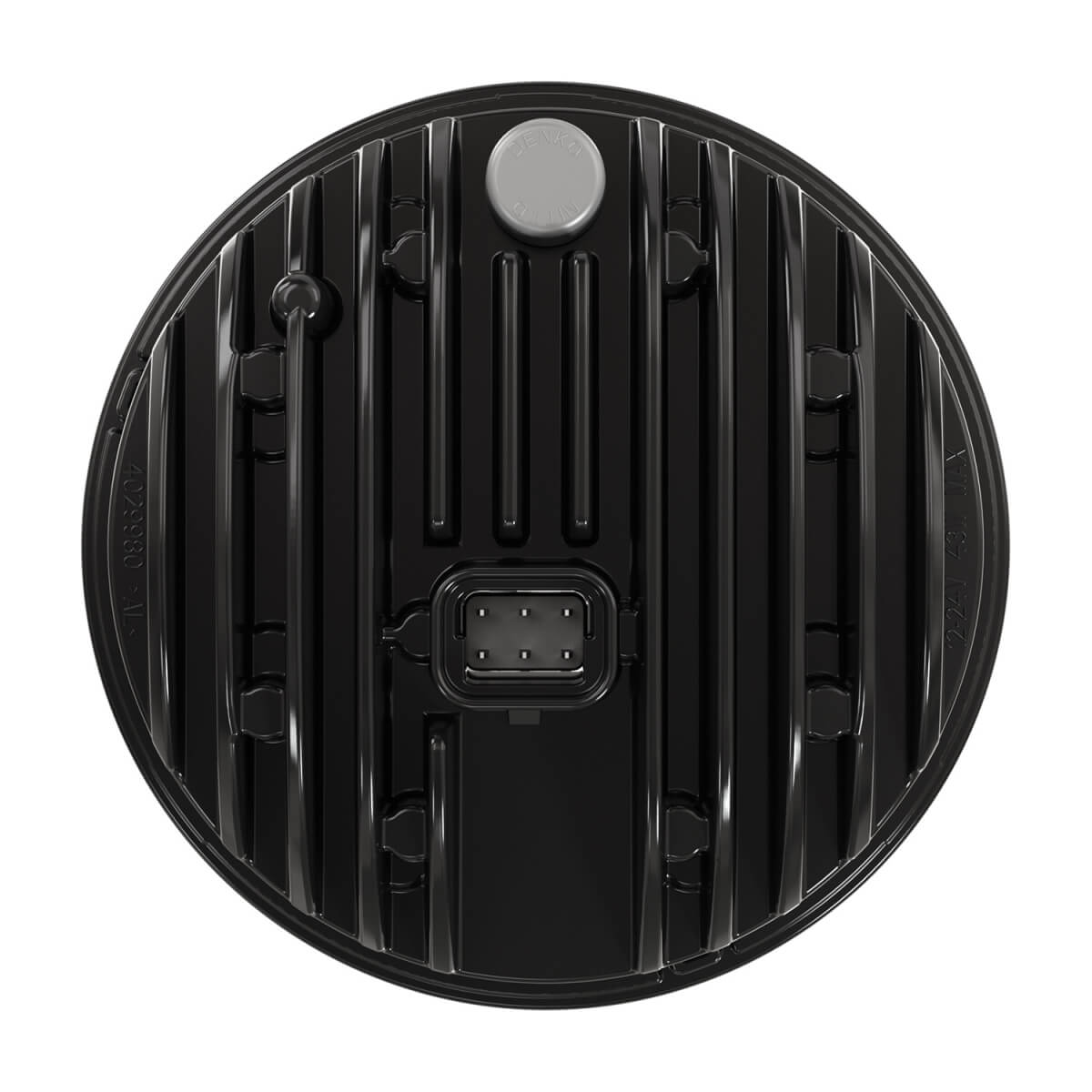

Connector	Delphi MP150-6M (12124107)
Mating connector	Delphi MP150-6F (12052848)
Mounting	Built-in
Installation dimensions / diameter [mm]	129,32

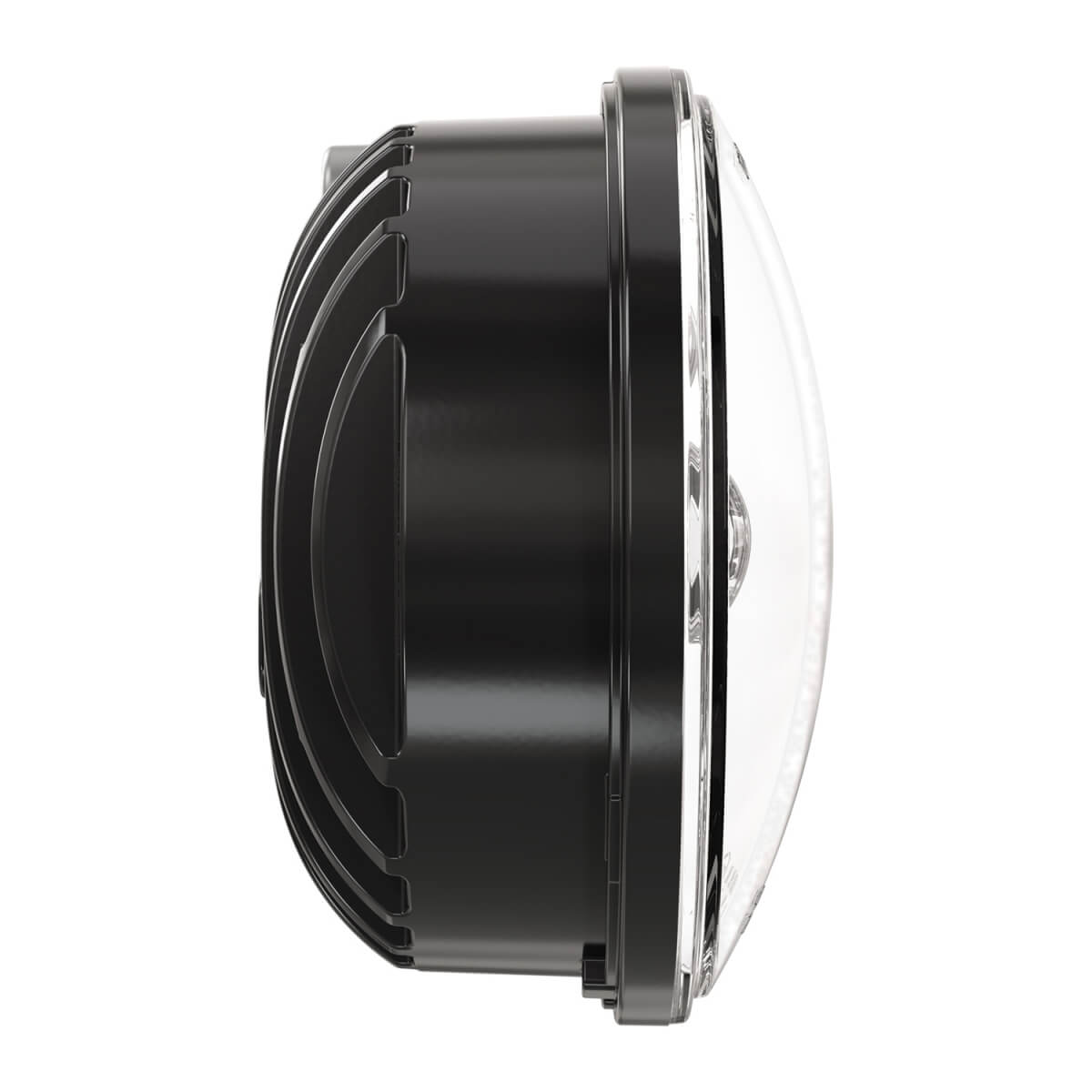

Installation depth [mm]	51 (plus Stecker)
Reverse polarity protection	1
