Item no.: FS-2052-87341

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

Back in 2009 J.W. Speaker introduced model 8700. It was the world`s first road approved retrofit LED headlight. This headlight is now available in the 6th generation. This ECE-approved LED...

Close menu

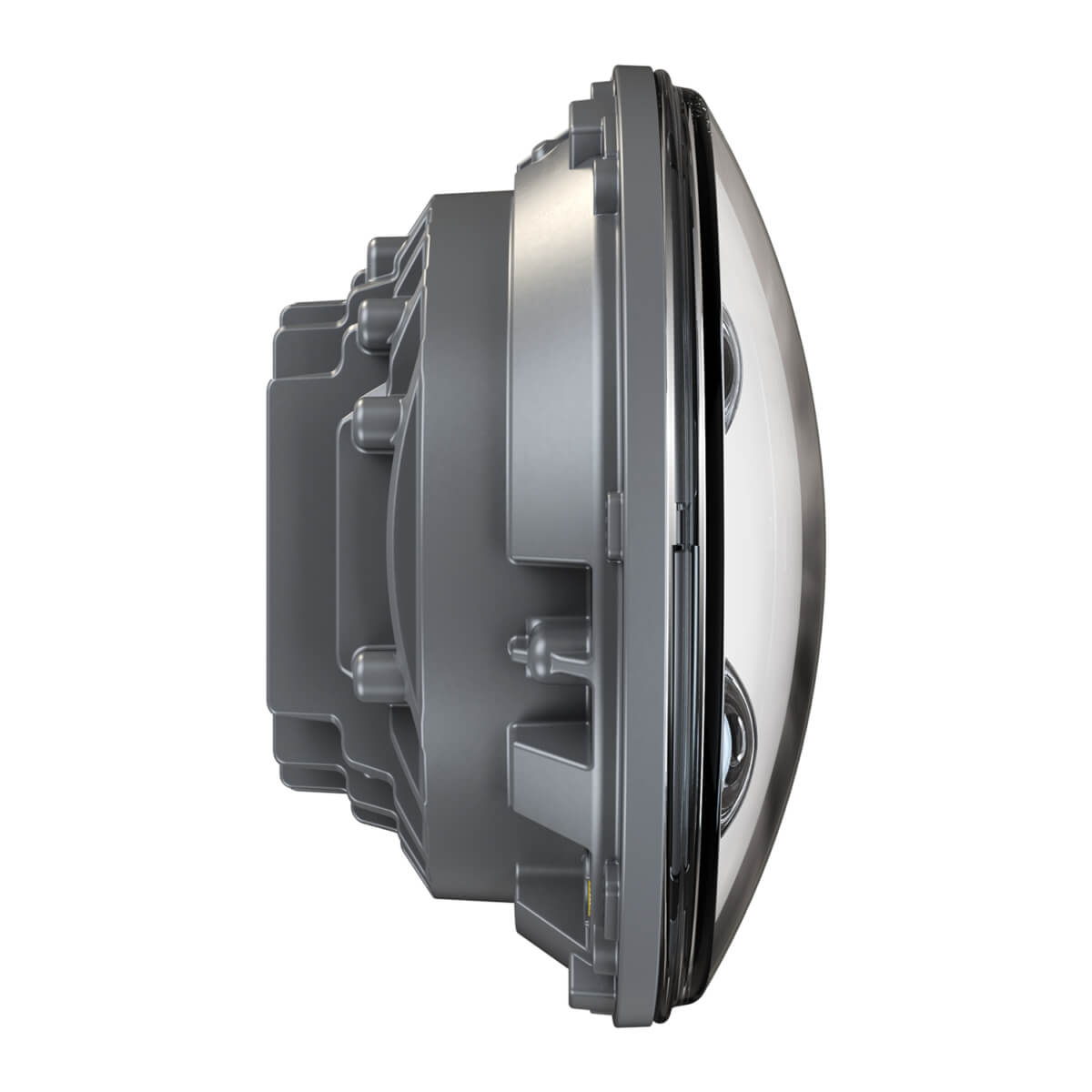

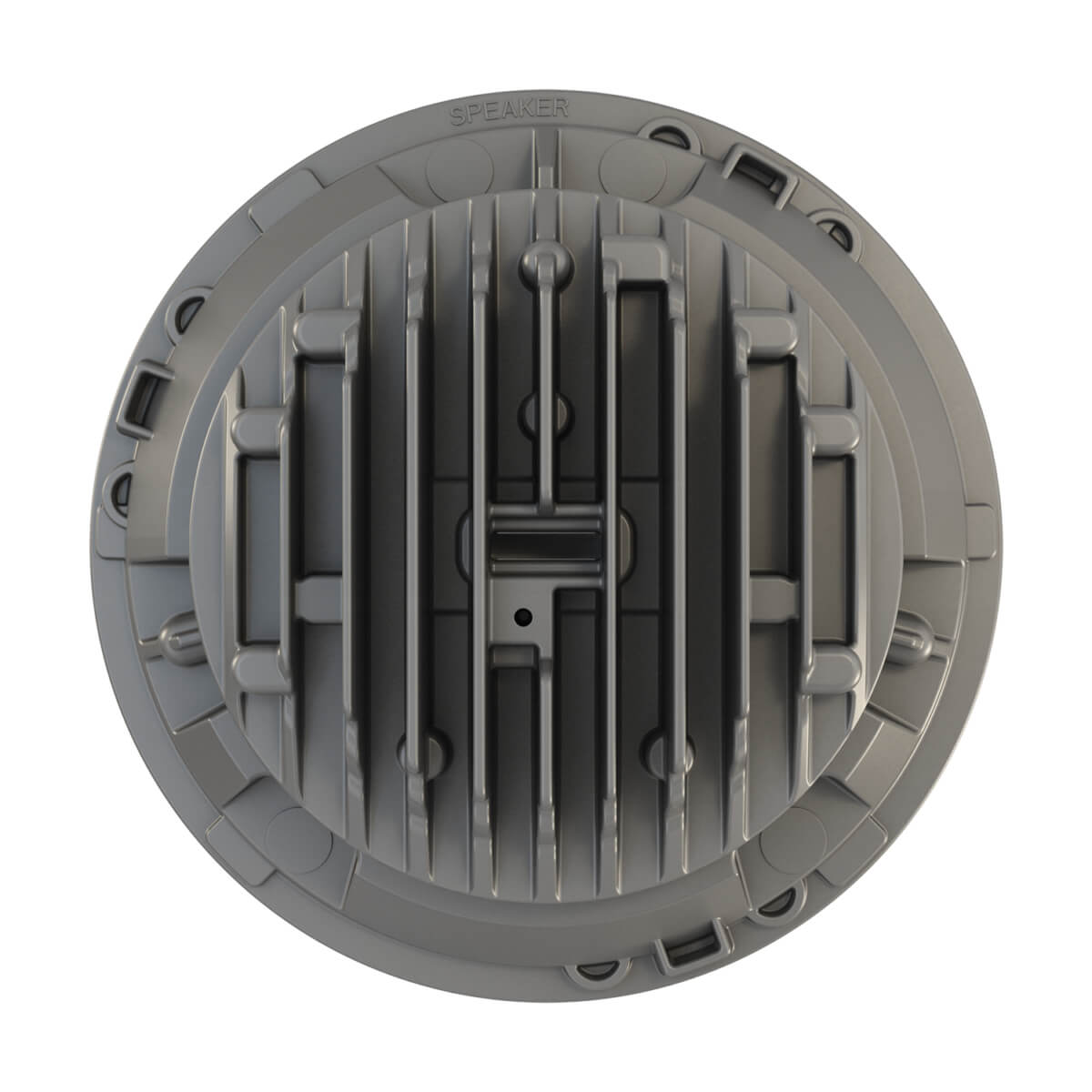

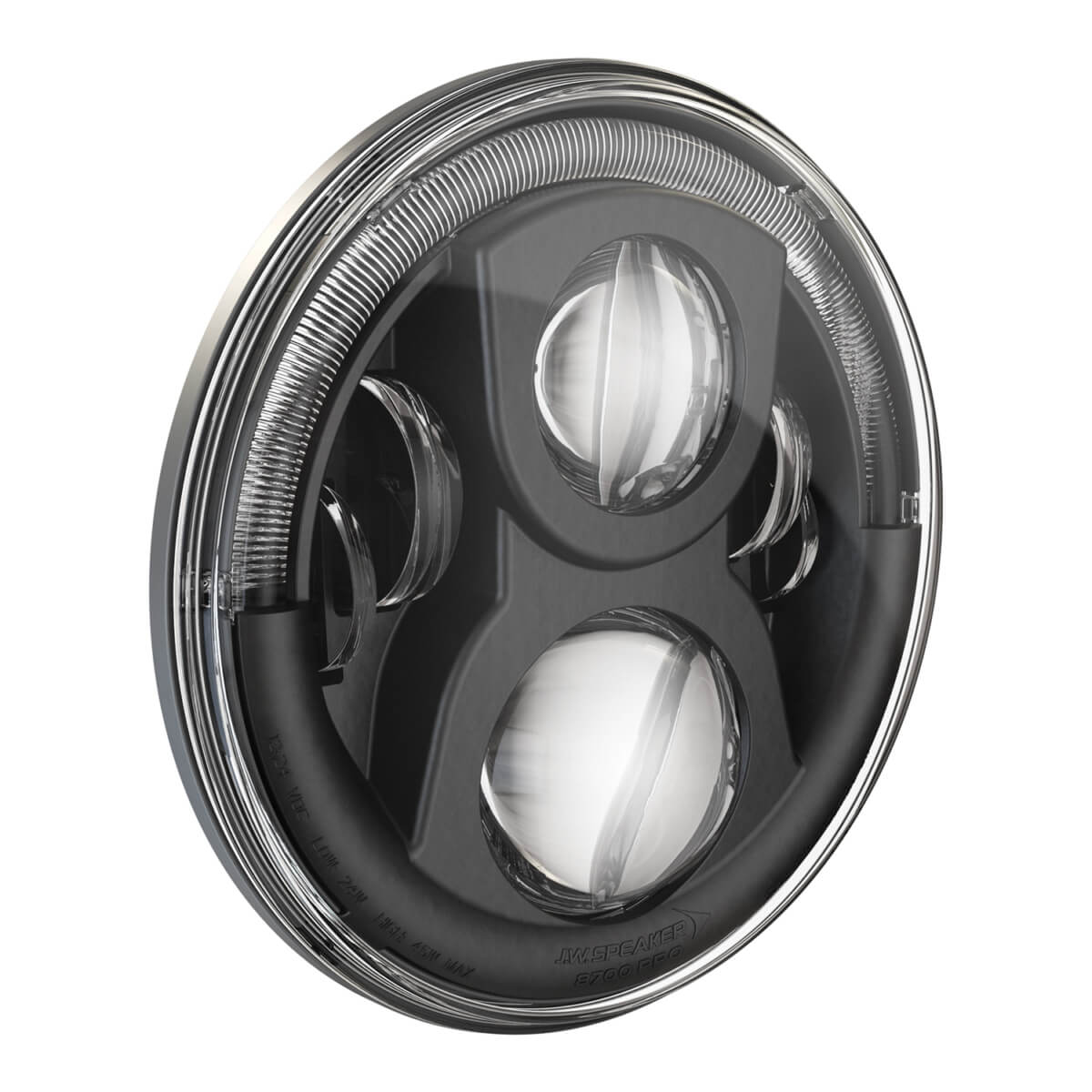

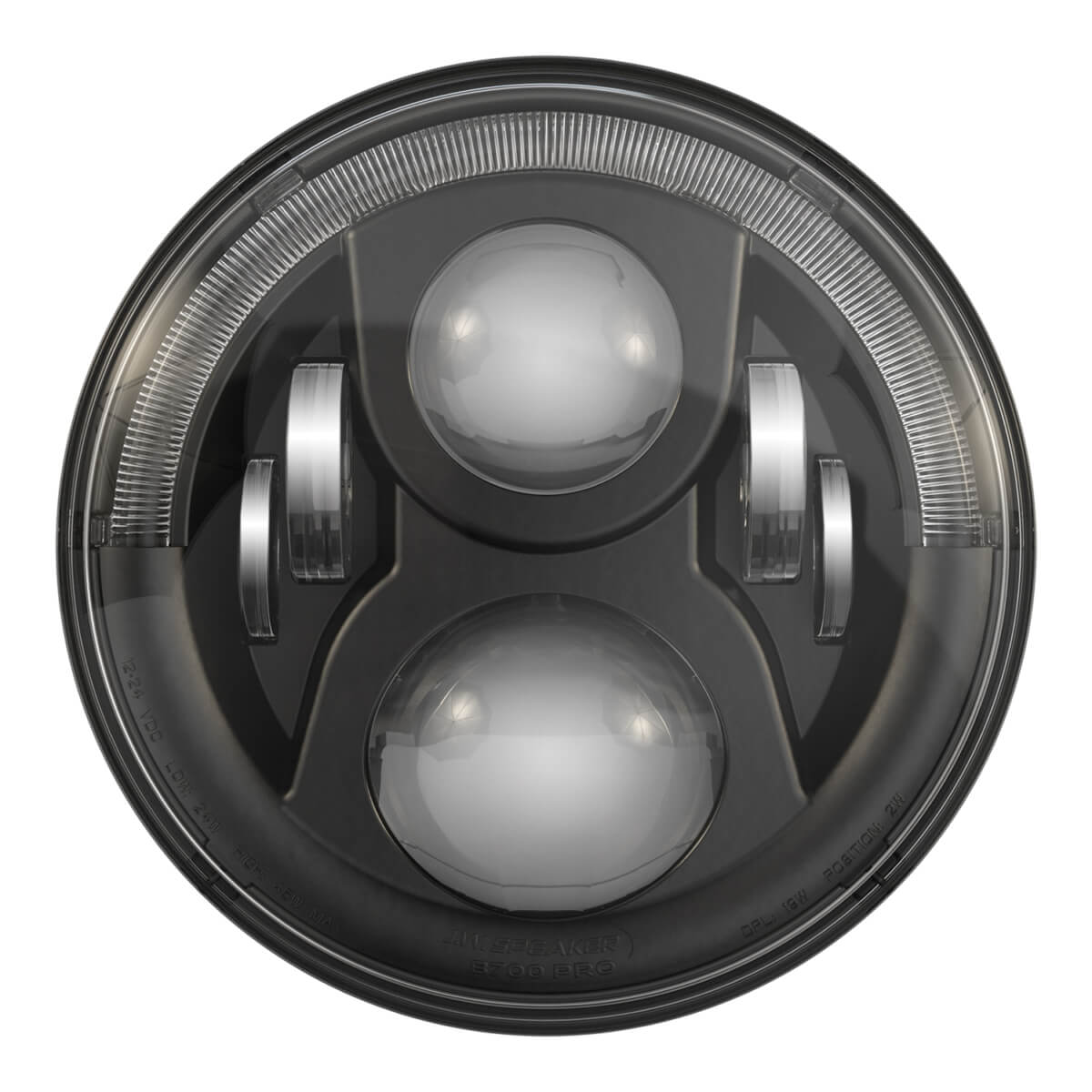

Model 8700 Evo 2 Pro

12-24 V, low and high beam, DRL, front position light, ECE road approval (Reg. 7, 87, 112), black bezel, LHT

Back in 2009 J.W. Speaker introduced model 8700. It was the world`s first road approved retrofit LED headlight. This headlight is now available in the 6th generation.

This ECE-approved LED headlight is THE retrofit headlight for all who use round 7" headlights. Be it on classic cars, motorcycles or trucks. Hardly any headlight will improve the driver's visibility in such a way.

Features:

• Dual Burn - With high beam, the low beam remains switched on. The result is a dramatically well-lit road!

• ComfortLite - This technology ensures harmonious illumination of the road.

Model 8700 EVO 2 PRO is certainly the best 7" headlamp on the market.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	9-32
Power consumption [W]	24-26.4 (low), 43.2 (high), 19.2 (DRL), 1.92-2.4 (position)
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 7, 87, 112
EMC (electromagnetic compatibility)	ECE (Reg. 10)
Transient protection	150 V @ 1 Hz-100 pulses

Output

Brightness [lm], theoretically	2340 (Abblendl.), 4170 (Fernl.)
Brightness [lm], eff.	694 (Abblendl.), 1340 (Fernl.)
Brightness [cd]	30600 (Abblendl.), 84700 (Fernl.)
Temperature range [° C]	-40 to 65
