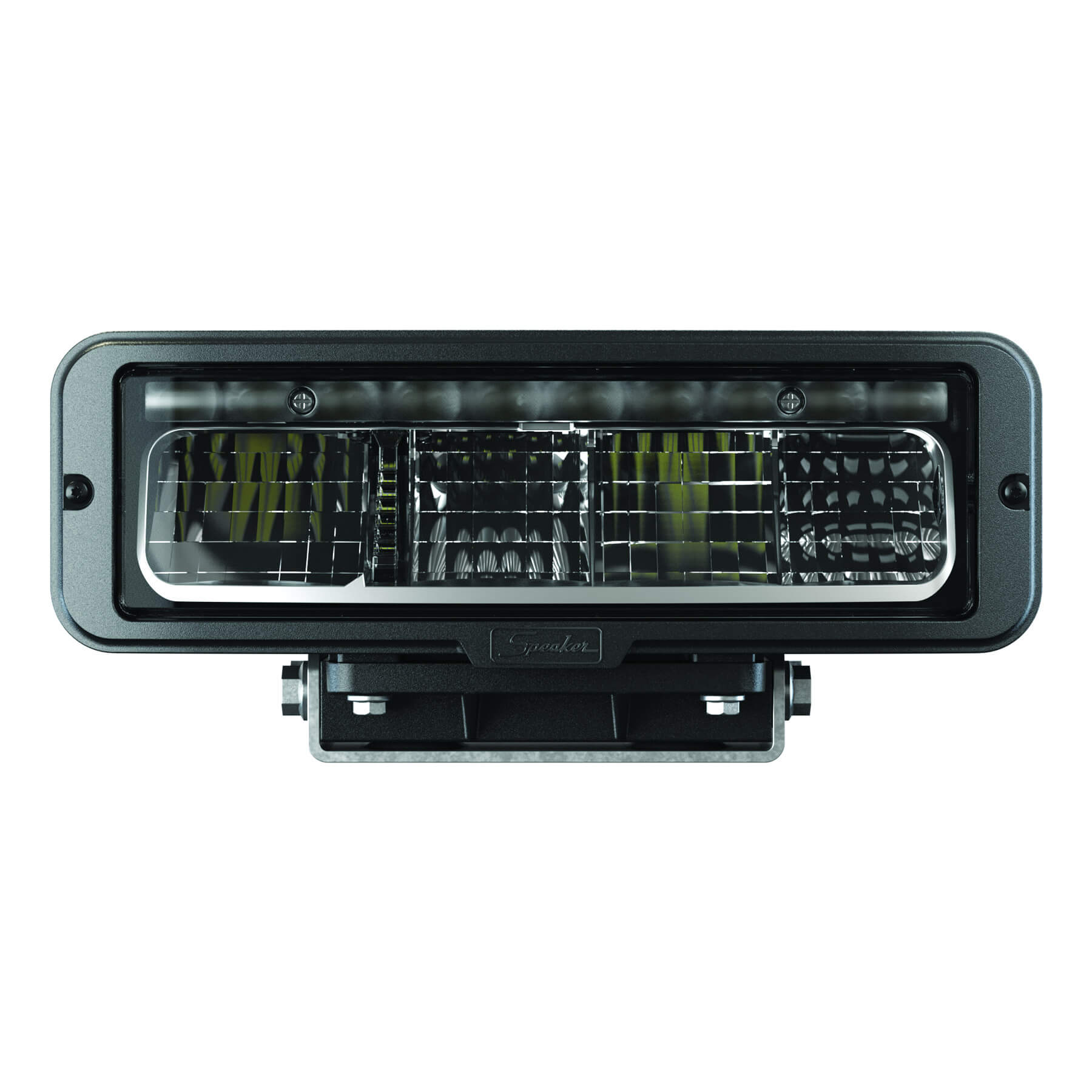

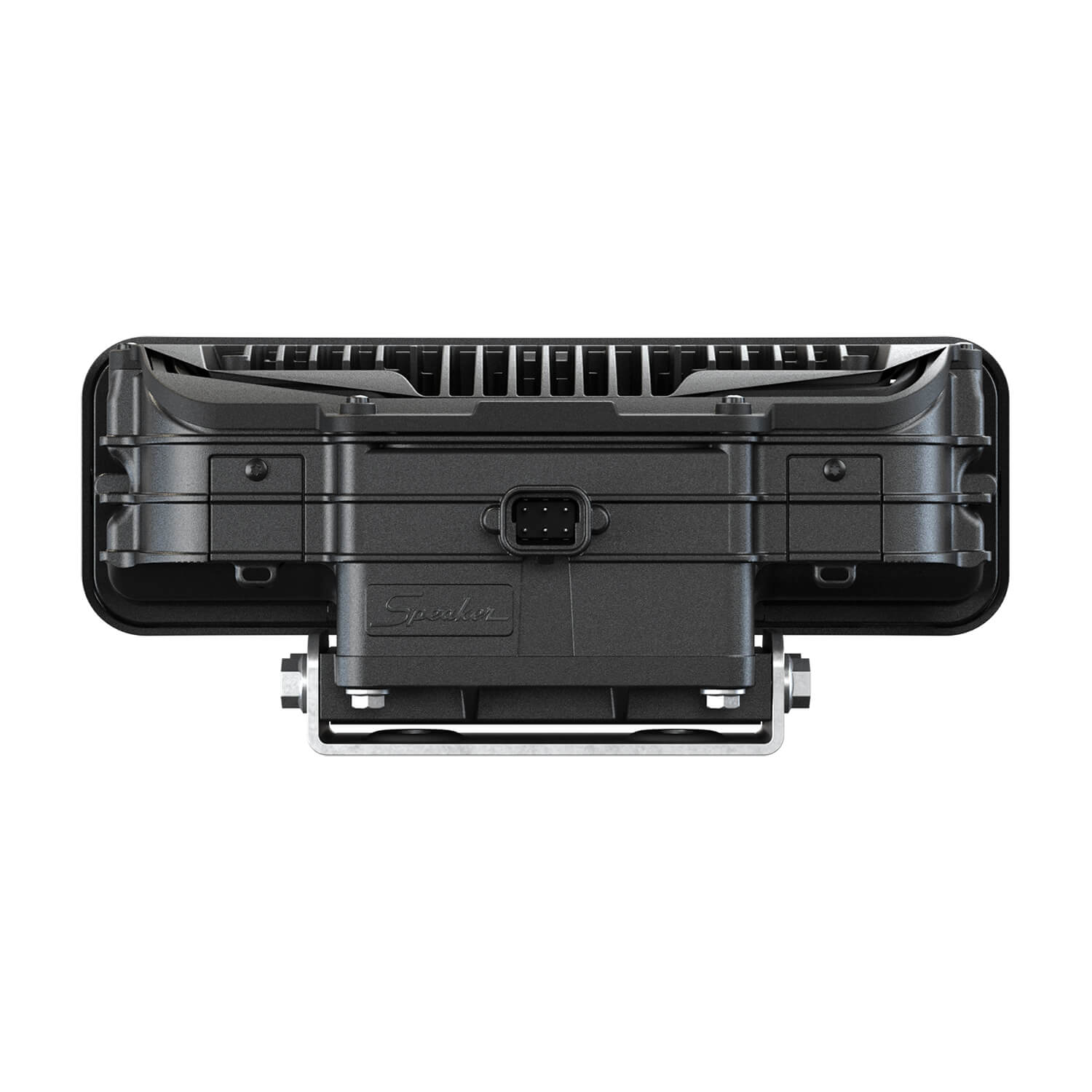

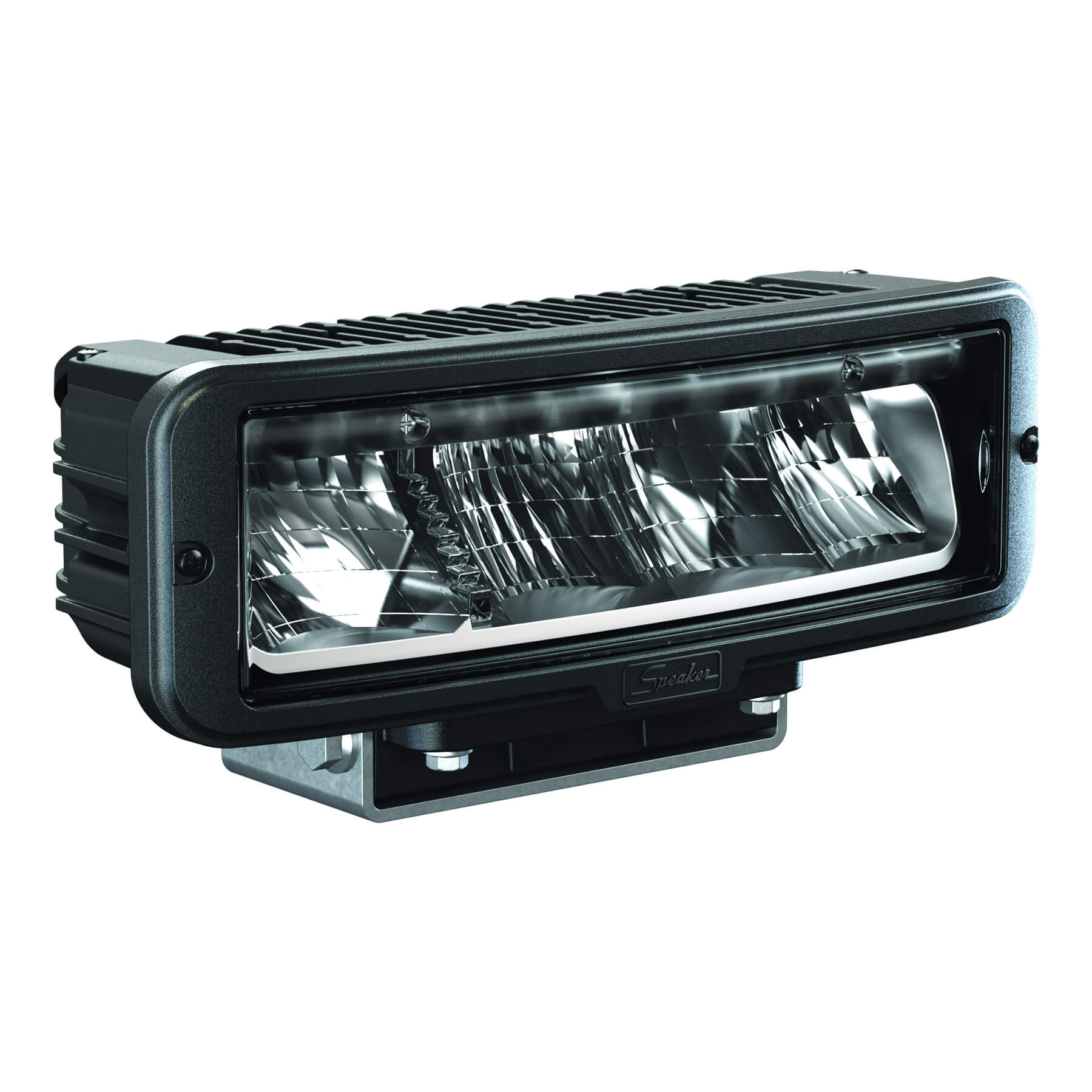

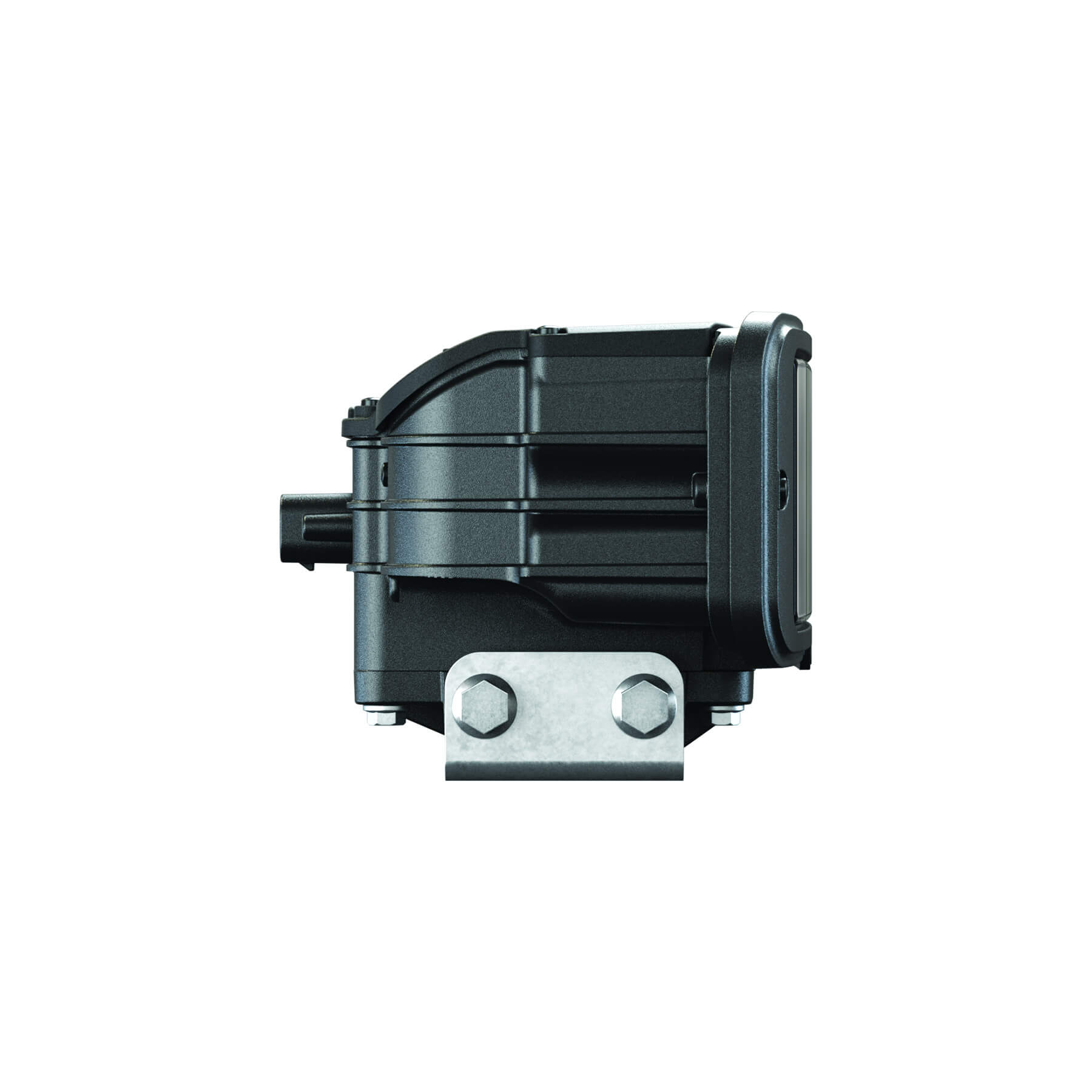

LED headlight model 9800

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Road approved solution for all industrial vehicles. This light has originally been developed for the use on plow trucks. But this is of course not limiting its use. Model 9800 is a complete...
LED headlight model 9800
12-24 V, low and high beam, daytime running light, with front posiition, with turn signal, ECE road approval (Reg. 6, 7, 112), left head light, RHT
Road approved solution for all industrial vehicles.

This light has originally been developed for the use on plow trucks. But this is of course not limiting its use.

Model 9800 is a complete solution for vehicles that need to be equipped for the street legal. In this headlight, all functions for the vehicle front are united: low and high beam, daytime running light and front position as well as a turn signal. Of course, all approved according to ECE.

For harsh winters there is also a variant with a heated lens.
Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 10-32
Power consumption [W] 32.4 (low), 43.2 (high), <0.12 (DRL), 10.2 (turn), <0.12 (position)
Protection class IP67
Standards ECE (Reg. 6, 7, 87, 112)
Output
Brightness [lm], theoretically 2115 (Abblendl.), 2835 (Fernl.)
Brightness [lm], eff. 785 (Abblendl.), 1135 (Fernl.)
Brightness [cd] 52000
Beam pattern / lens Abblend- und Fernlicht, Tagfahrlicht, Fahrtrichtungsanzeiger
Mounting
Connector Delphi MP150-6M (12124107)
Mating connector Delphi MP150-6F (12052848)
Mounting Universal mount, M8-1.25x25 (2x)
Reverse polarity protection 1
