LED headlight model 9800 SmartHeat

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Road approved solution for all industrial vehicles. This light has originally been developed for the use on plow trucks. But this is of course not limiting its use. Model 9800 is a complete...
LED headlight model 9800 SmartHeat

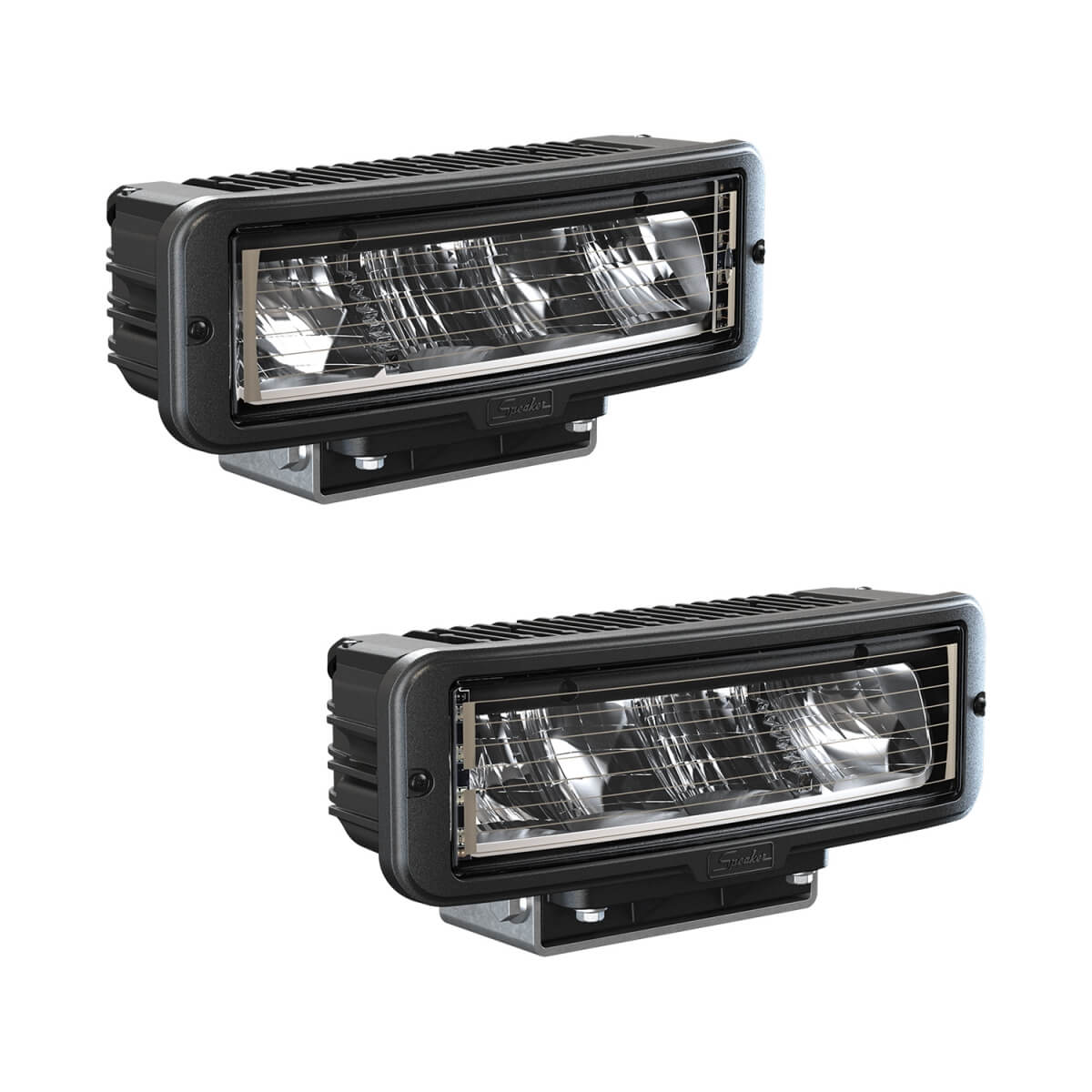

12 V, low and high beam, with DRL and front position, with turn signal, ECE road approval (Reg. 6, 7, 87, 112), with heated lens, 2 light kit (left and right), RHT
Road approved solution for all industrial vehicles.

This light has originally been developed for the use on plow trucks. But this is of course not limiting its use.

Model 9800 is a complete solution for vehicles that need to be equipped for the street legal. In this headlight, all functions for the vehicle front are united: low and high beam, daytime running light and front position as well as a turn signal. Of course, all approved according to ECE.

This variant of the LED headlight model 9800 is ready for harsh winters. It has been equipped with a heated lens that senses ambient temperature and turns the integrated heating system in the lens on & off. Thus you always get optimum light.
Factsheets
Standards
Operating voltage [V], nominal 12
Operating voltage [V], functional 10-15
Power consumption [W] 32.4 (low), 40.8 (high), 0.48 (DRL), 10.2 (turn)
Standards ECE (Reg. 6, 7, 87, 112)
Output
Brightness [lm], theoretically 2160 (Abblendl.), 2880 (Fernl.)
Brightness [lm], eff. 785 (Abblendl.), 1150 (Fernl.)
Beam pattern / lens Abblend- und Fernlicht, Tagfahrlicht, Fahrtrichtungsanzeiger
Mounting
Connector Delphi MP150-6M (12124107)
Mating connector Delphi MP150-6F (12052848)
Mounting Universal mount, M8-1.25x25 (2x)
Reverse polarity protection 1
Functions
Low beam
High beam
Daytime running lights
Parking light
Turn signal
Road approval
