Item no.: FS-1620-79331

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

Model 791 is a small fog light in a housing measuring just 5x15 cm (2"x6"). With its housing made of die-cast aluminum, a lens of glass and the black bezel this small light is a truly high-quality...

Close menu

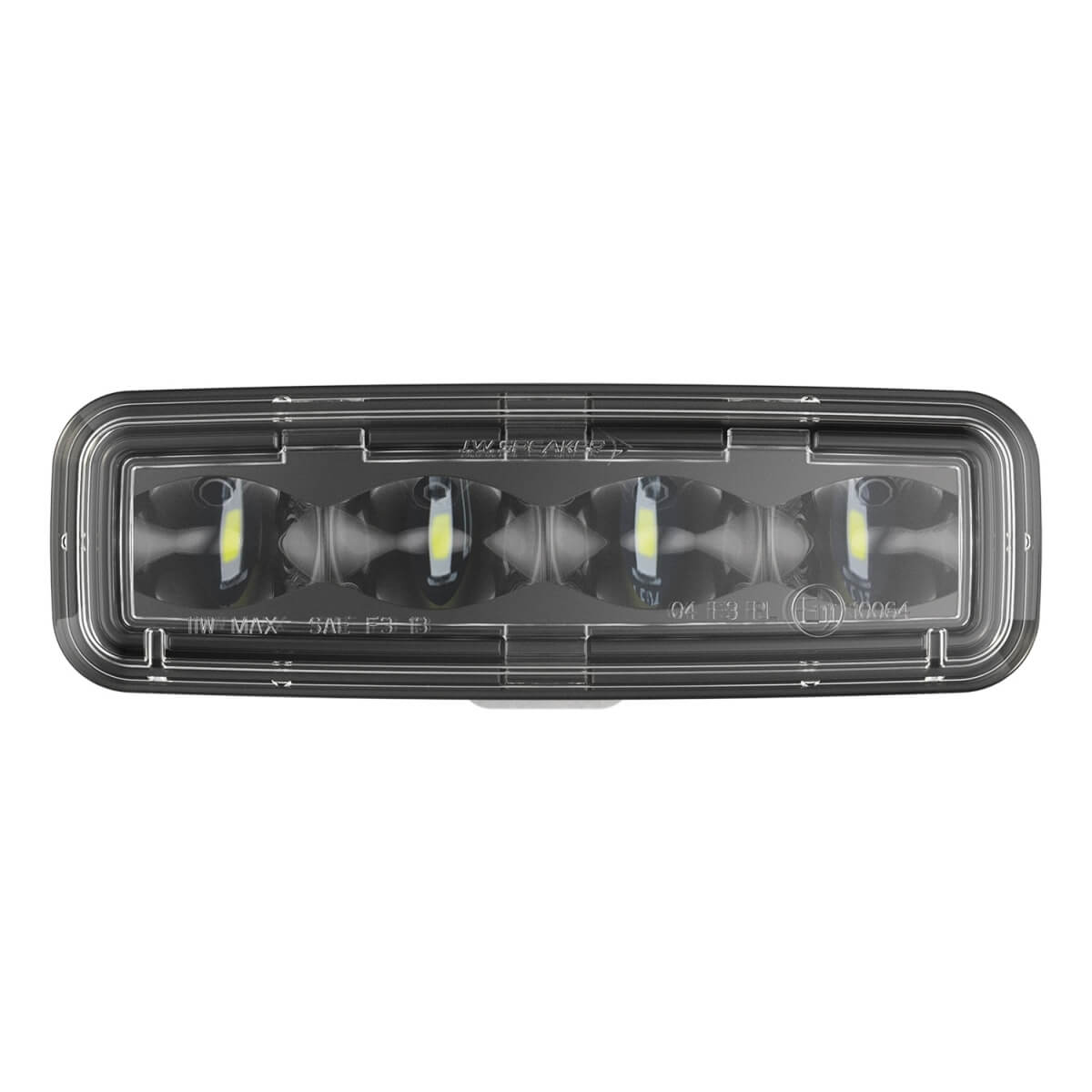

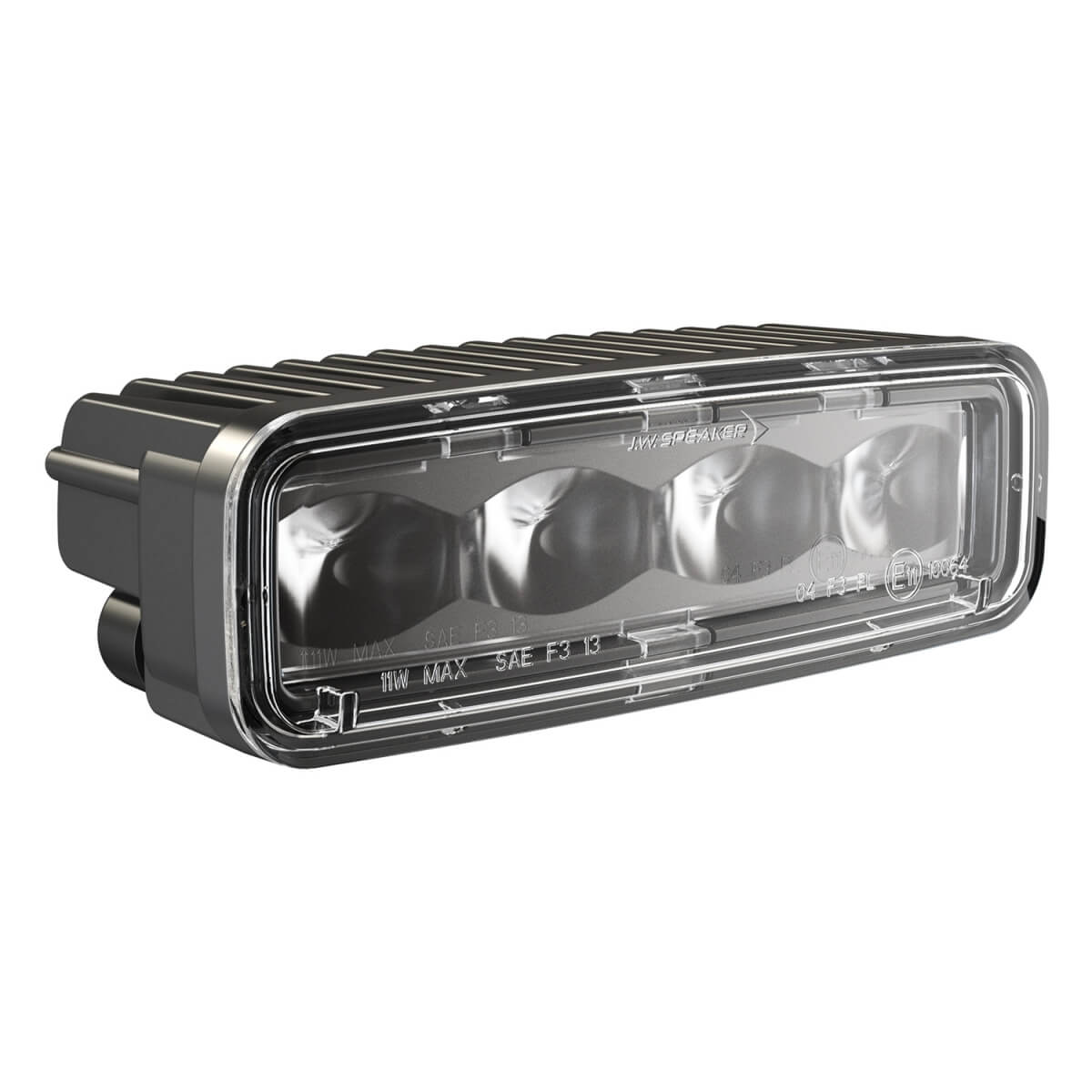

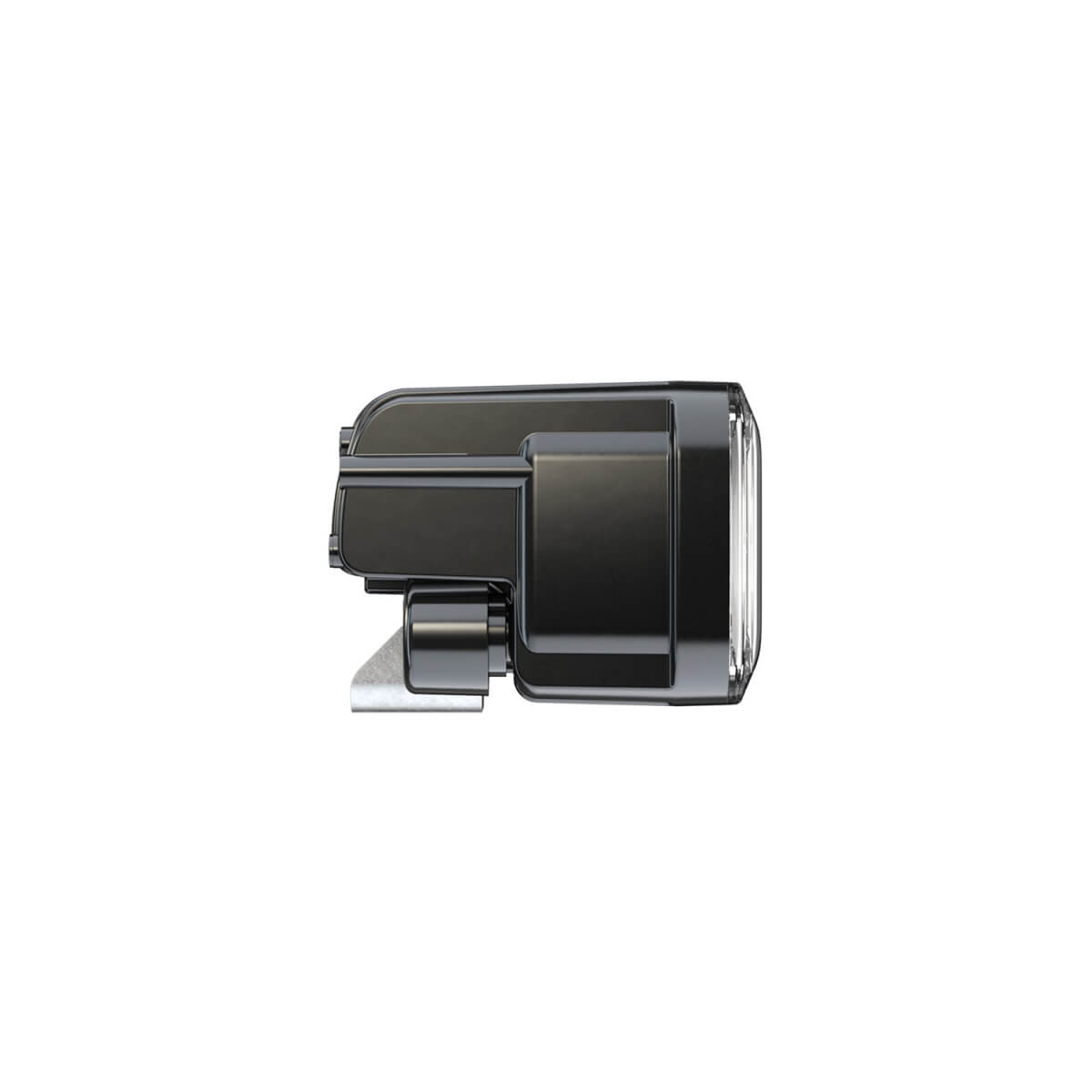

LED fog light model 791

12 V, 250 lm, ECE road approval (Reg. 10)

Model 791 is a small fog light in a housing measuring just 5x15 cm (2"x6"). With its housing made of die-cast aluminum, a lens of glass and the black bezel this small light is a truly high-quality combination of robust materials.

Also available as driving light or as driving light with flood beam.

Factsheets

Standards

Operating voltage [V], nominal	12
Operating voltage [V], functional	10-18
Power consumption [W]	10.56
Temperature range [° C]	-40 to 65
Protection class	IP69K
Standards	ECE (Reg. 19), SAE (J578, J583)
EMC (electromagnetic compatibility)	ECE (Reg. 10)
Transient protection	150 V @ 1 Hz-100 pulses

Output

Brightness [lm], theoretically	800
Brightness [lm], eff.	250
Brightness [cd]	6700
Beam pattern / lens	Nebellicht
Temperature range [° C]	-40 to 65
