LED auxiliary light model 791

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Small and very compact. And quite bright for its size! Model 791 delivers an impressive 1150 lumens from a housing measuring just 5x15 cm (2"x6"). With its housing made of die-cast aluminum, a...

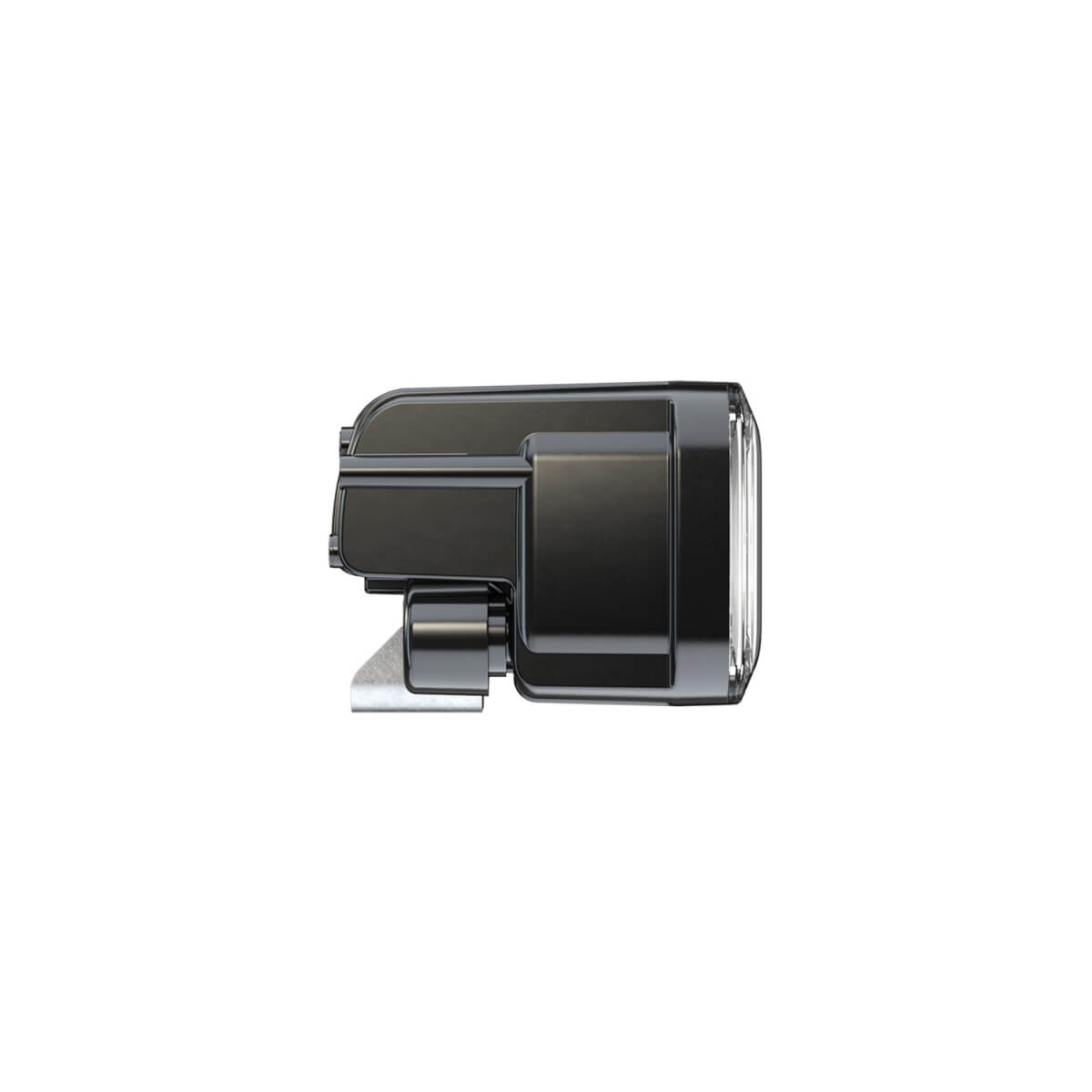

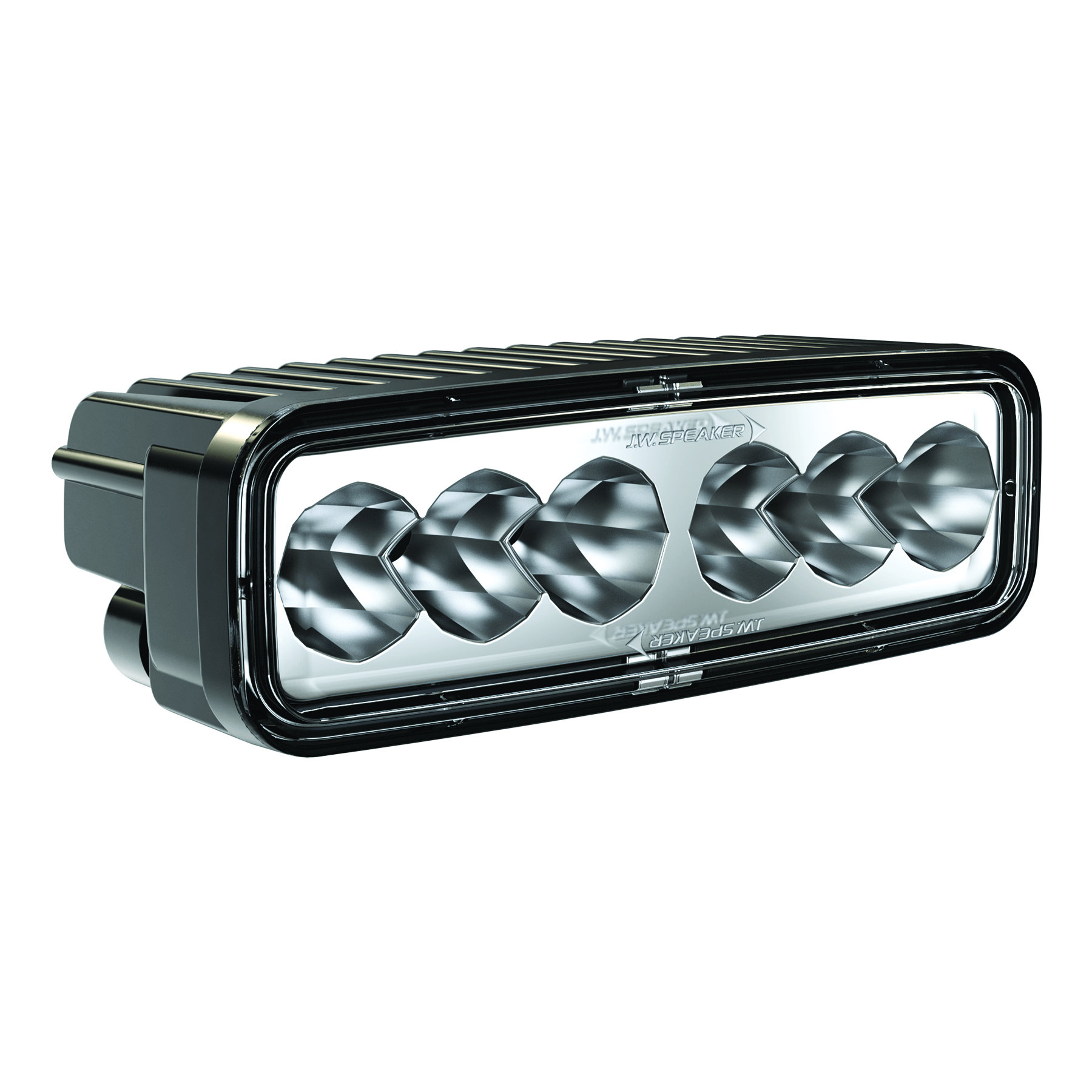

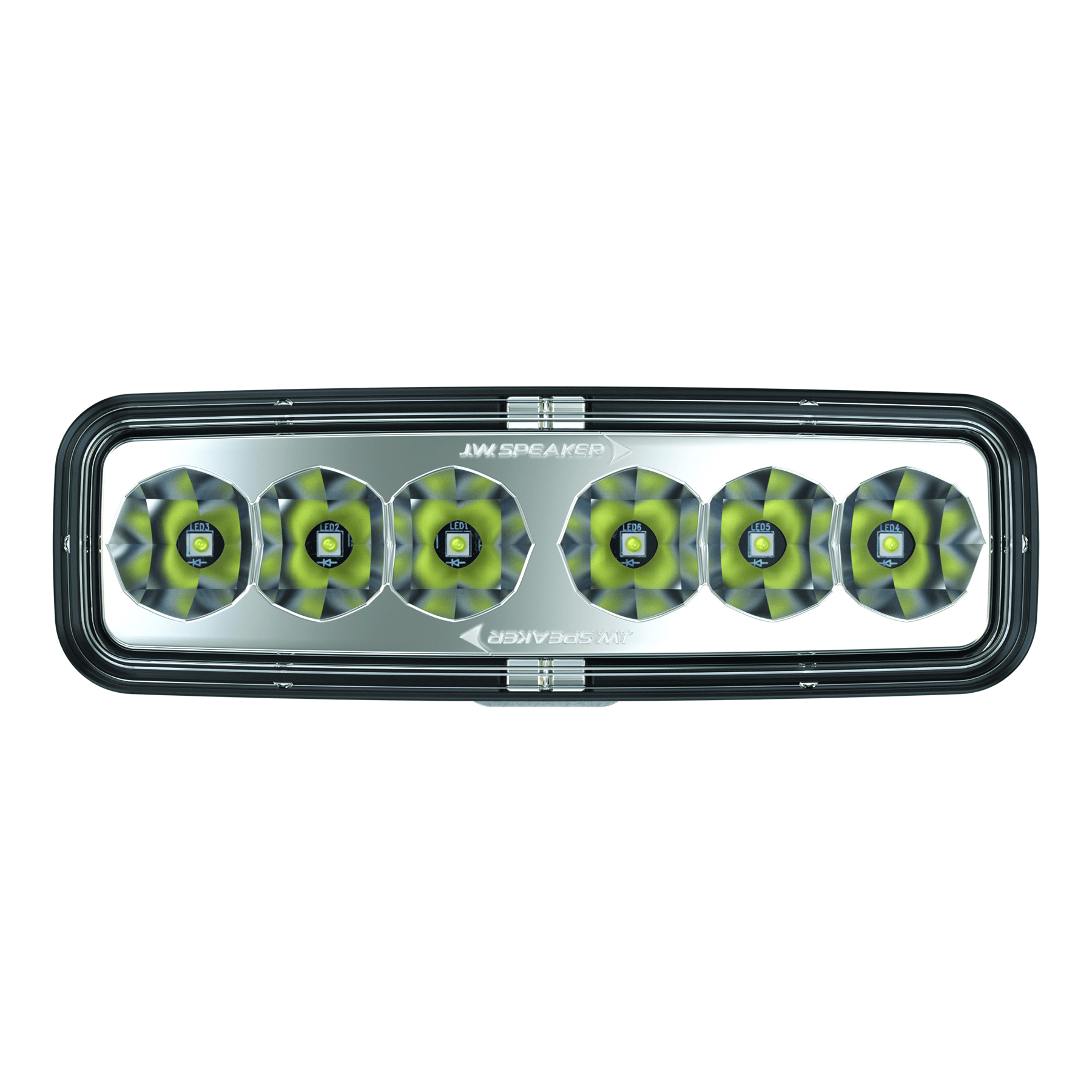

LED auxiliary light model 791
12-24 V, 1150 lm, driving light
Small and very compact. And quite bright for its size!

Model 791 delivers an impressive 1150 lumens from a housing measuring just 5x15 cm (2"x6"). With its housing made of die-cast aluminum, a lens of glass and the chromed bezel this small light is a truly high-quality combination of robust materials.

In the flood variant it is a perfect worklight, a second variant, called driving light, has a narrow beam pattern, which could also be called a spot.
Factsheets
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 9-32
Power consumption [W] 15.24-18.72
Temperature range [° C] -40 to 65
Protection class IP67
Transient protection 150 V @ 1 Hz-100 pulses
Output
Brightness [lm], eff. 1150
Beam pattern / lens Fahrlicht (Spot)
Temperature range [° C] -40 to 65
Mounting

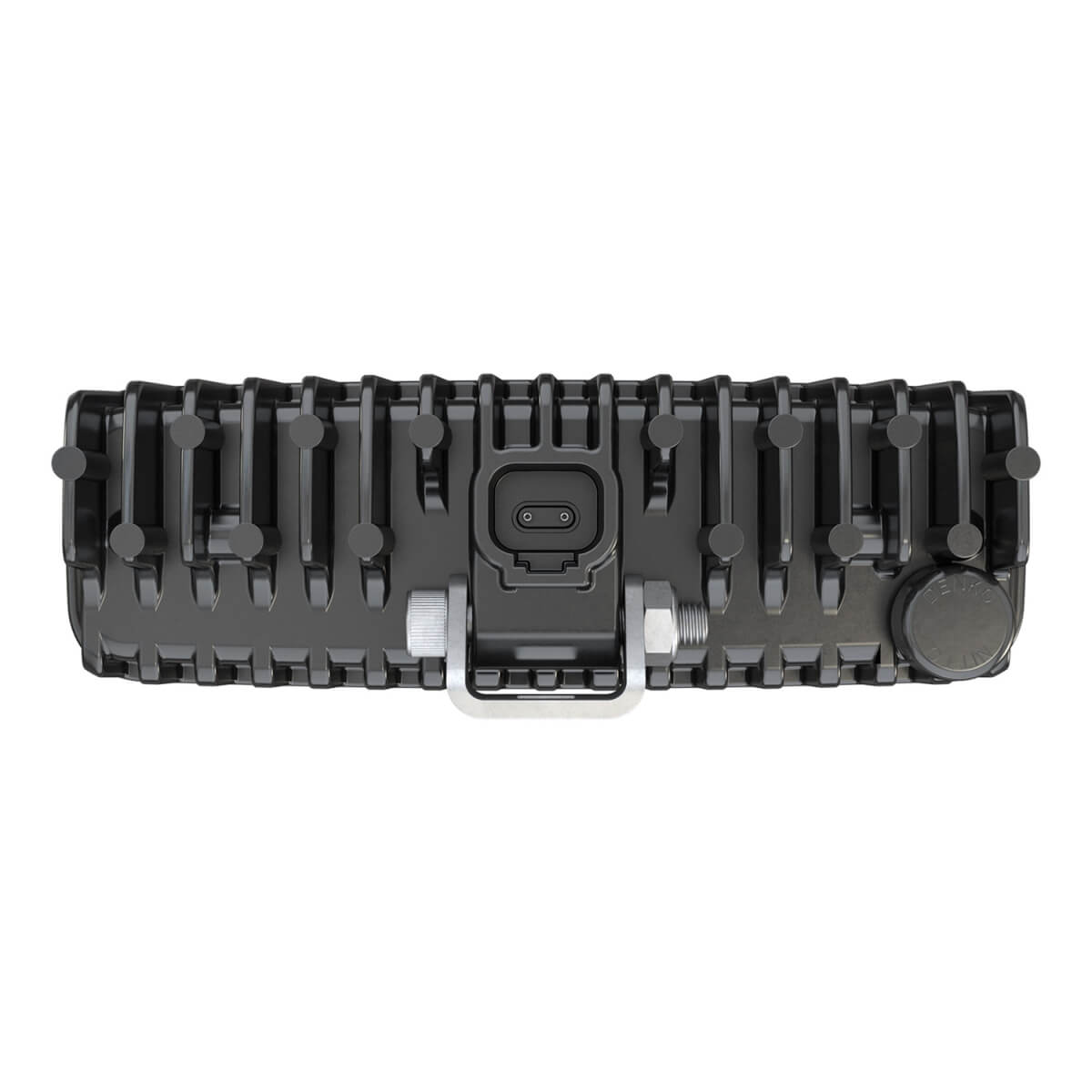

Connector Deutsch plug (DT04-2P)
Mating connector Deutsch plug (DT06-2S)
Mounting Universal mount
Reverse polarity protection 1
Functions
Spot
Driving lights
