Pedestal mounted headlight with indicator and heated front lens. Combination headlights with integrated indicators are often installed on industrial vehicles in particular. Now there is finally a...

Close menu

Model 8633

12-24 V, low and high beam, with DRL, front position light and turn signal, ECE road approval, with heated lens

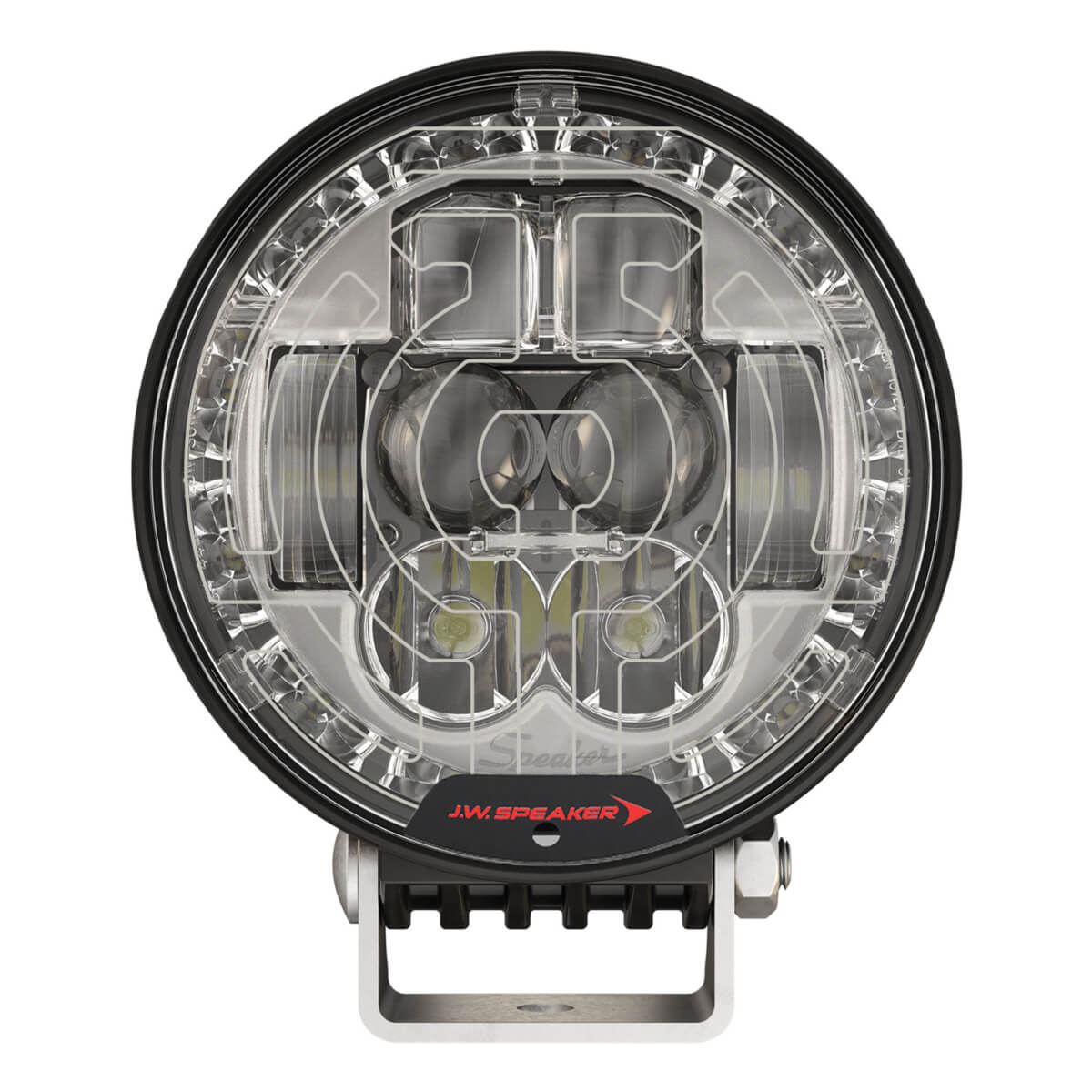

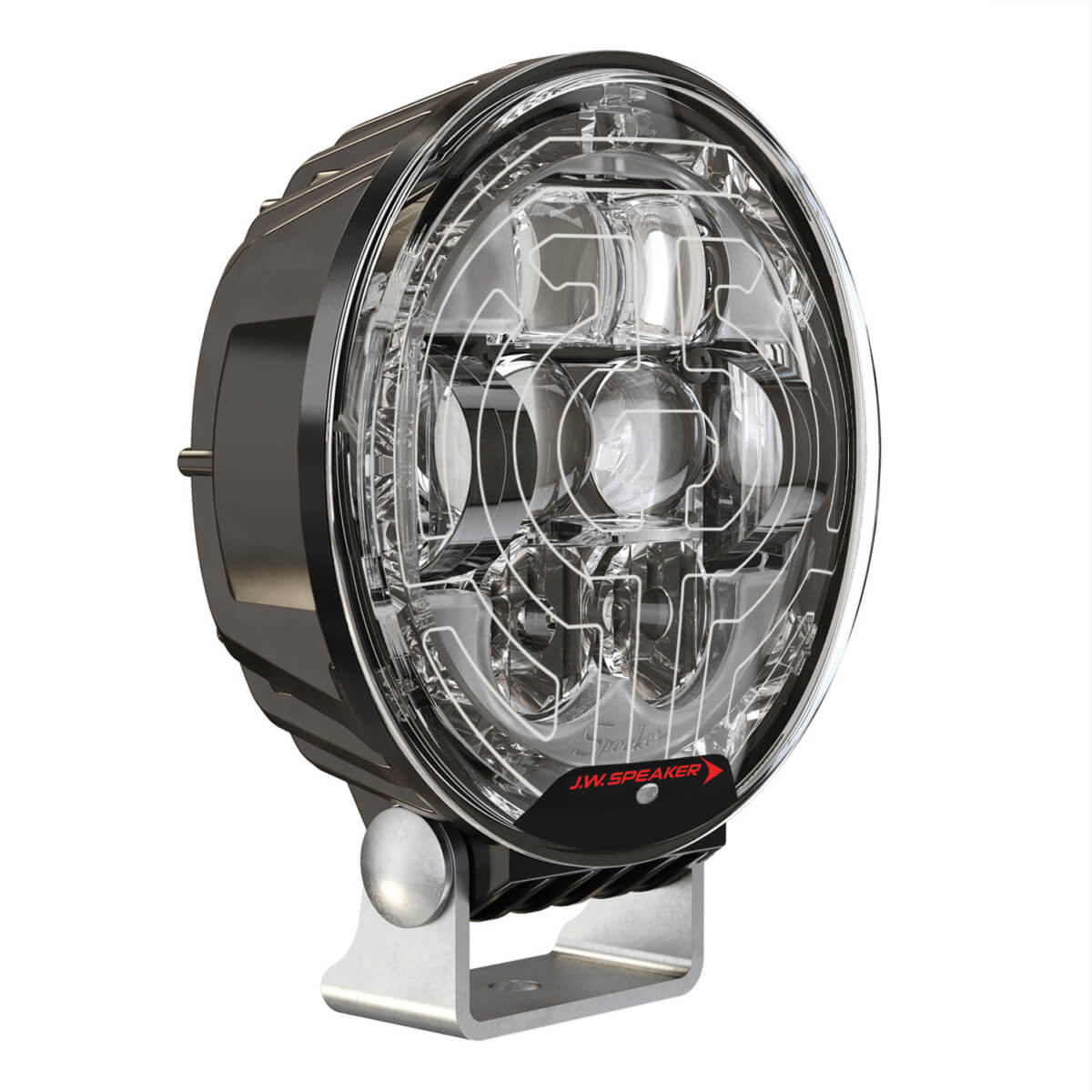

Pedestal mounted headlight with indicator and heated front lens.

Combination headlights with integrated indicators are often installed on industrial vehicles in particular. Now there is finally a high-quality LED solution in a pedestal mounted housing.

Model 8633 Evolution is based on model 8362 Evolution and therefore offers low beam, high beam, parking light, daytime running light and an indicator. In addition, this version of the small recovery light has a heated front lens so that it shines even in the harshest of winters and adverse climates.

Features:

- Combined low beam and high beam

- Indicator, daytime running light and parking light in the outer ring

- Heated front lens to prevent fogging and icing up

Factsheets

Standards

Operating voltage [V], nominal	12-24
Power consumption [W]	47.25-56 (low), 54-56 (high), 37.8-39.2 (DRL), 33.12-33.6 (front position), 8.1-11.2 (turn signal)
Protection class	IP67 & IP69K
Standards	ECE (Reg. 148-1b, 148-A, 148-RL, 149-HC, 149-HR)
EMC (electromagnetic compatibility)	ECE (Reg. 10)

Output

Brightness [lm], theoretically	2025/2925 (Abblendl./Fernl.)
Brightness [lm], eff.	660/1000 (Abblendl./Fernl.)
Brightness [cd]	23.000/51.000 (Abblendl./Fernl.)
