Model 793 warning line
12-36 V, blue line
Warning zone light with clear demarcation of the danger zone.

Warning Zone Lights prevent accidents during operation with industrial trucks and protect your employees from injury. Mark the areas with an increased risk. Even if they are not stationary, but also move with the vehicle! Whether it is a tug truck, a forklift truck or gantry crane.

With us you get warning zone lights with different mechanisms of action:

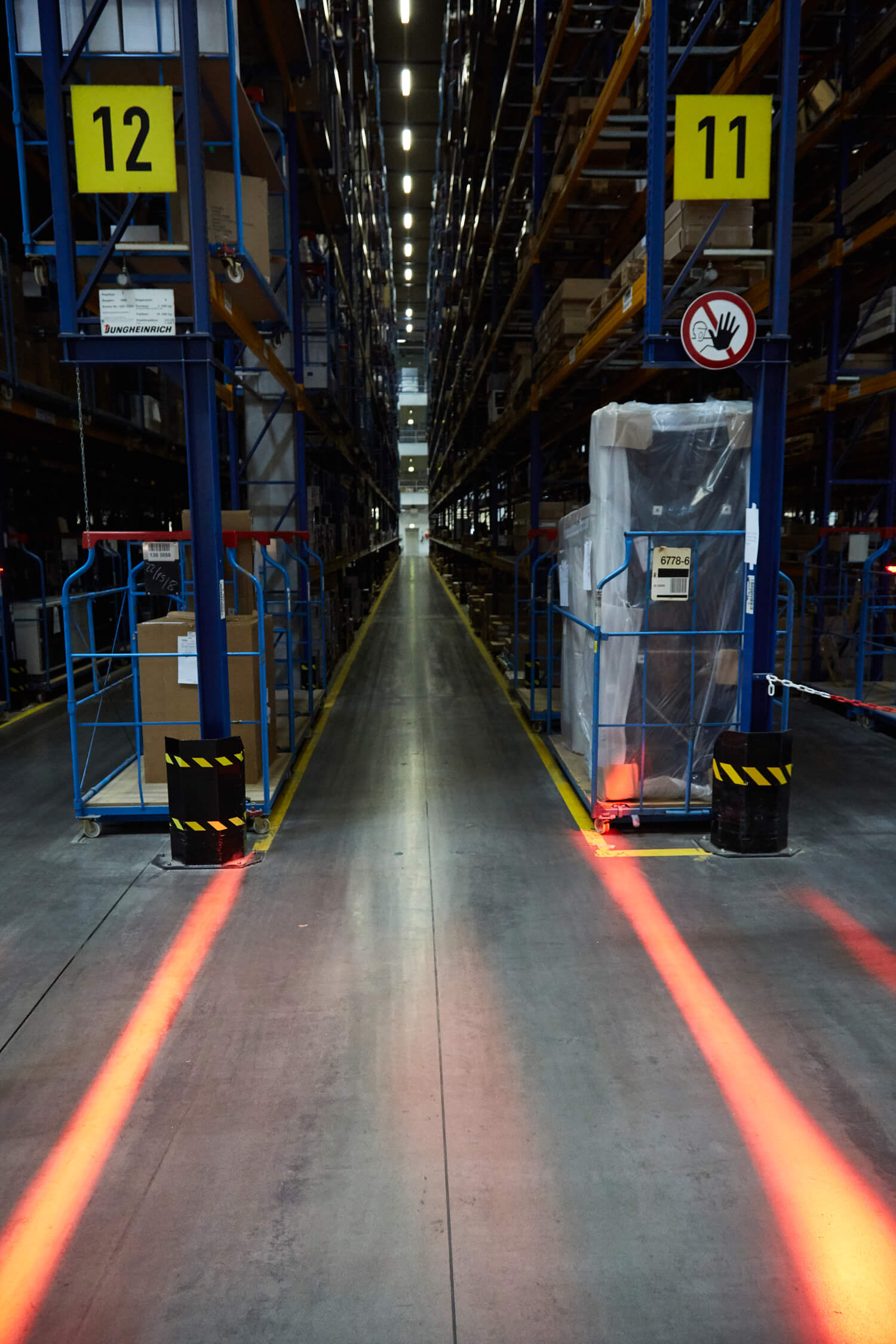

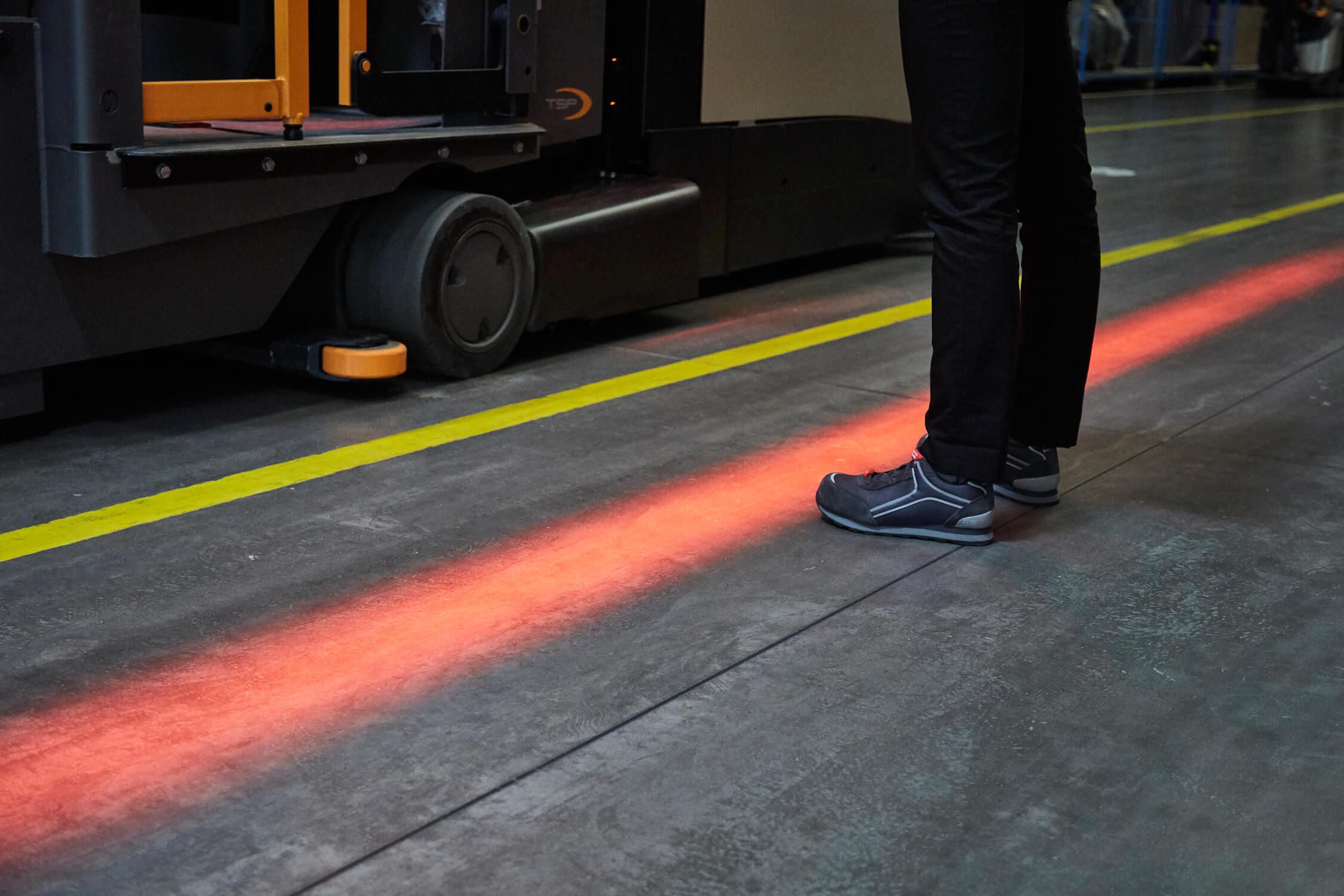

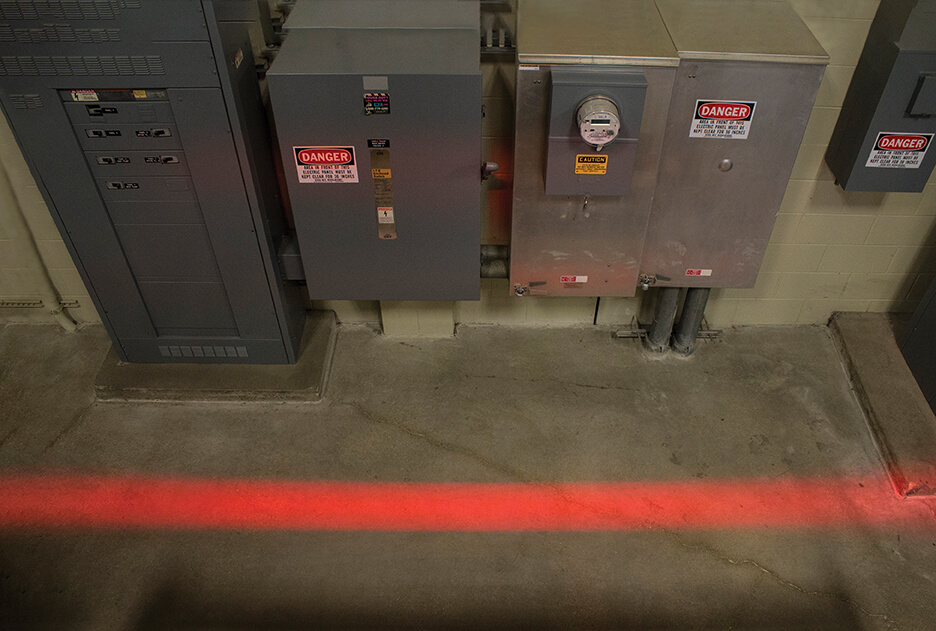

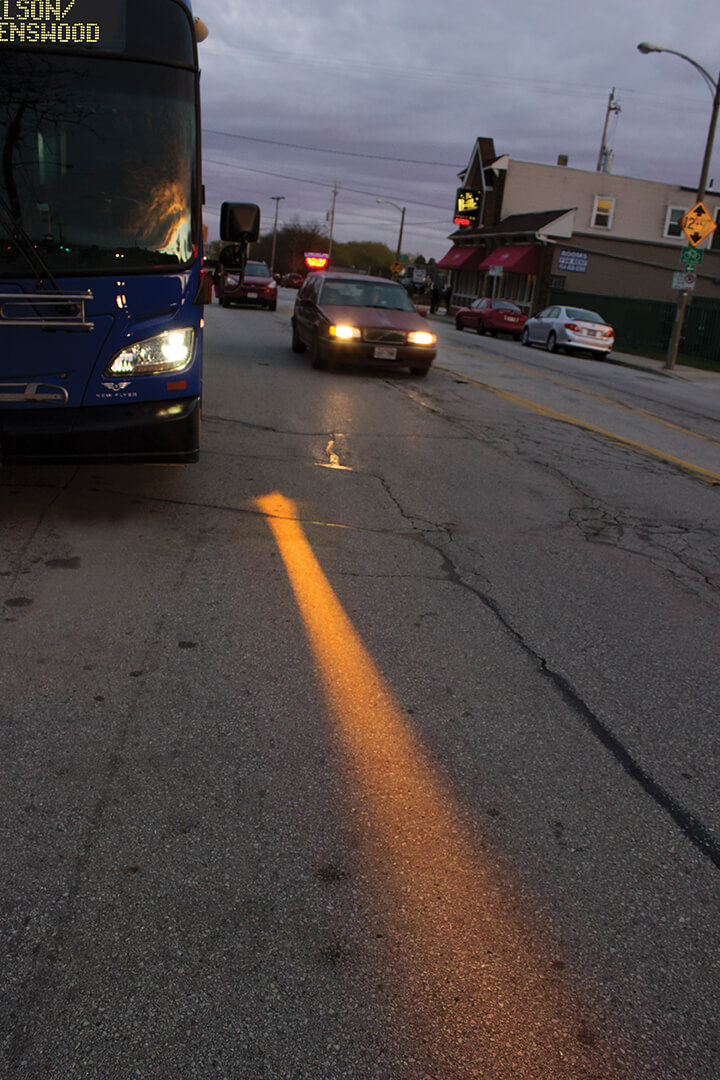

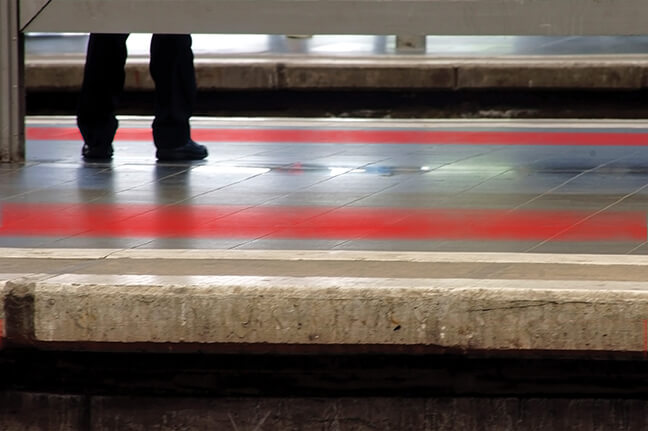

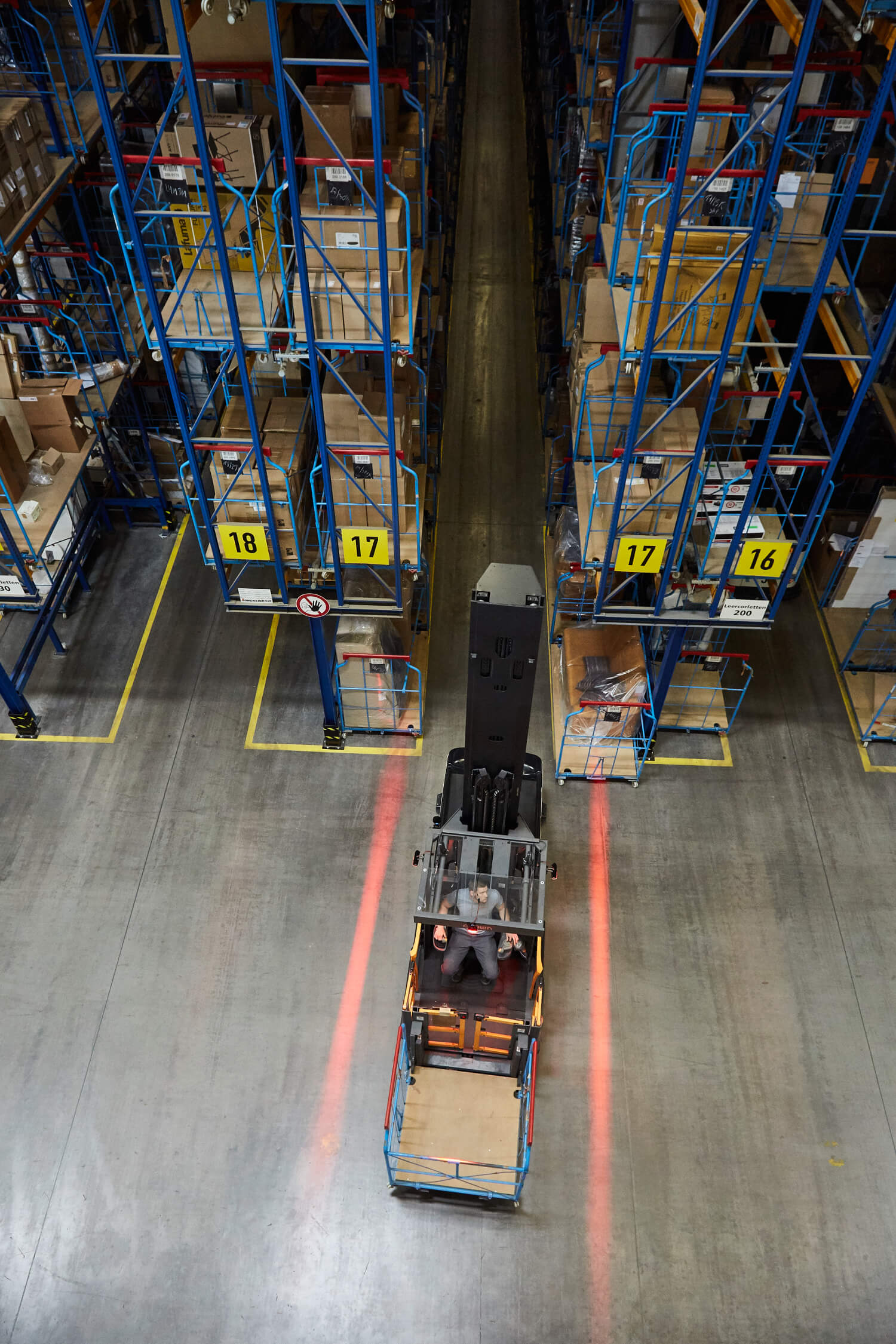

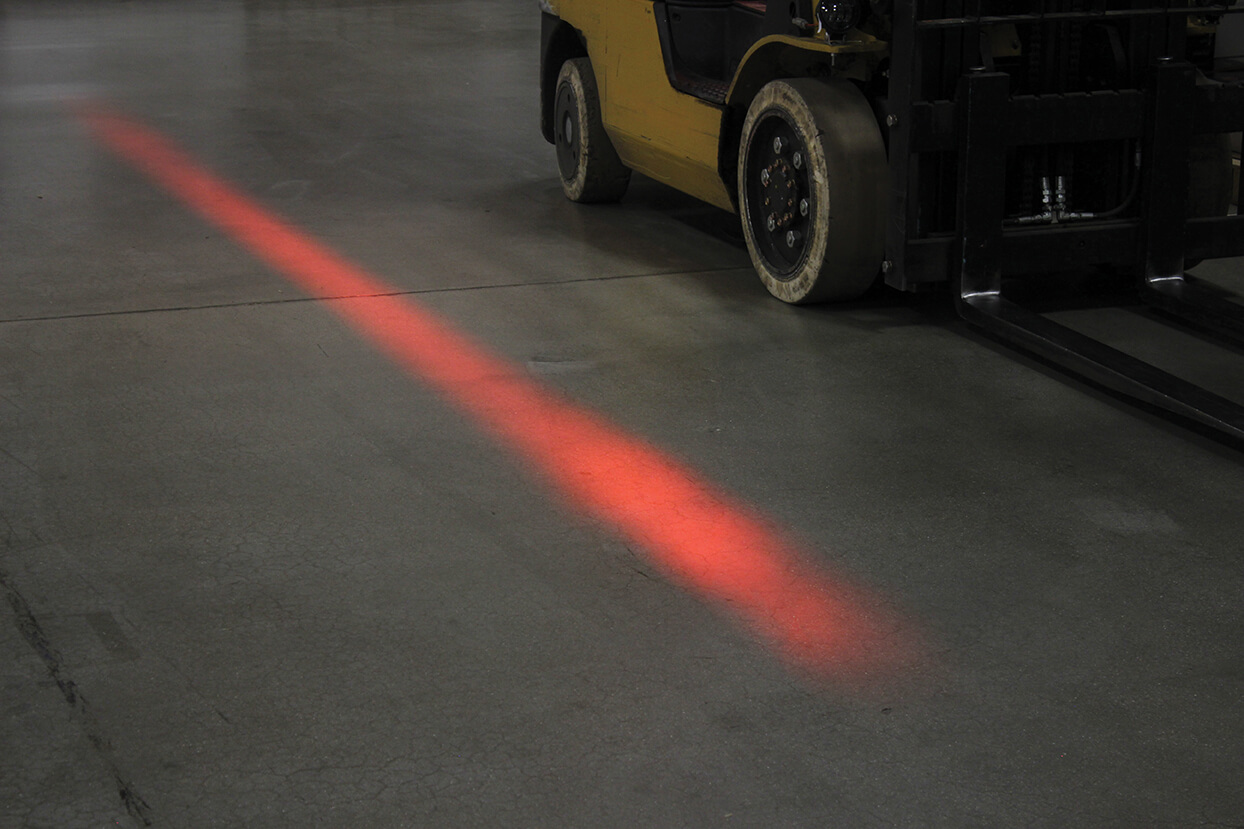

• Periphery lights draw a colored line on the ground which uniquely marks the boundary of a dangerous zone.

• Area lights dive the entire zone of increased danger into easily visible light.

• Spot lights project a bright spot on the ground, indicating a approaching danger.

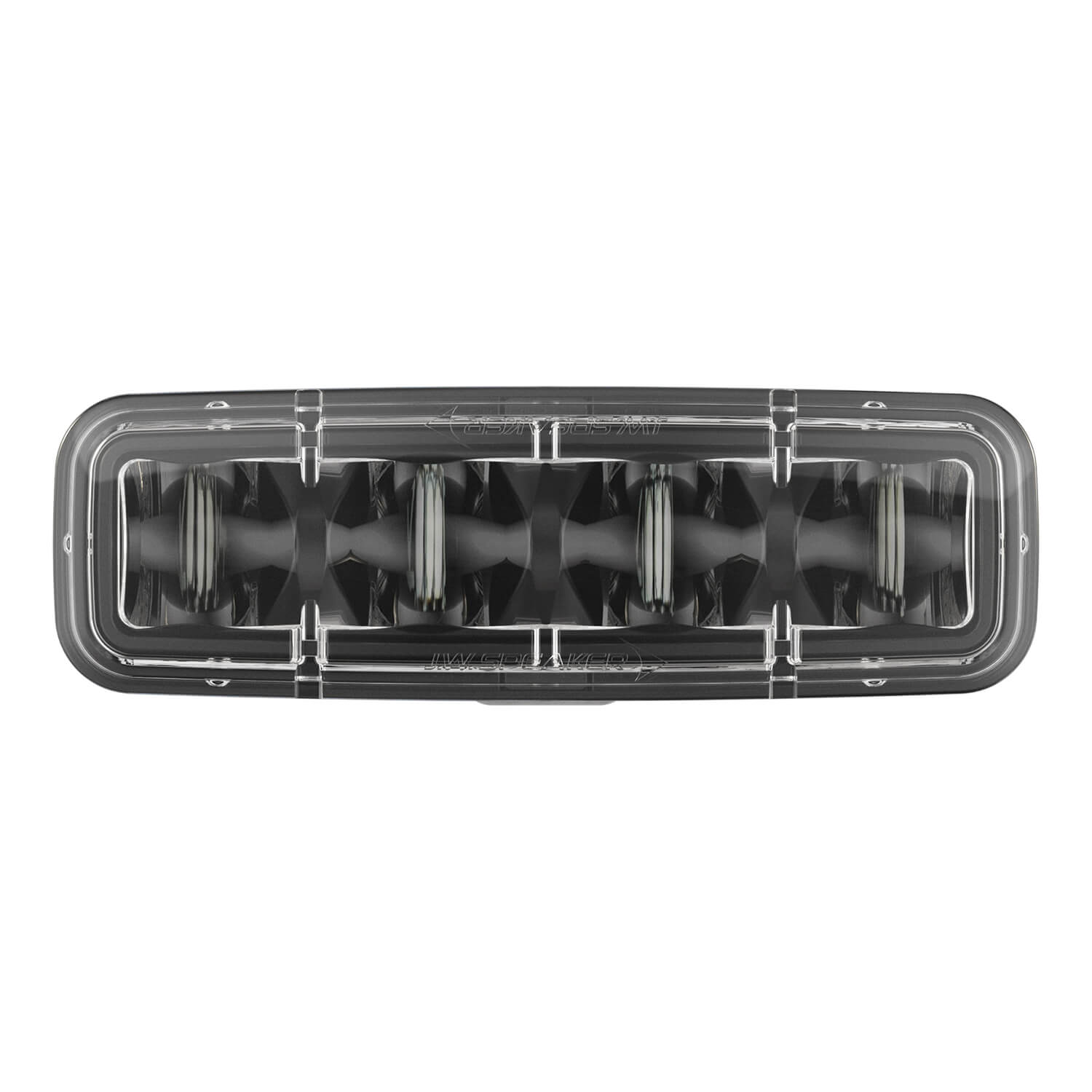

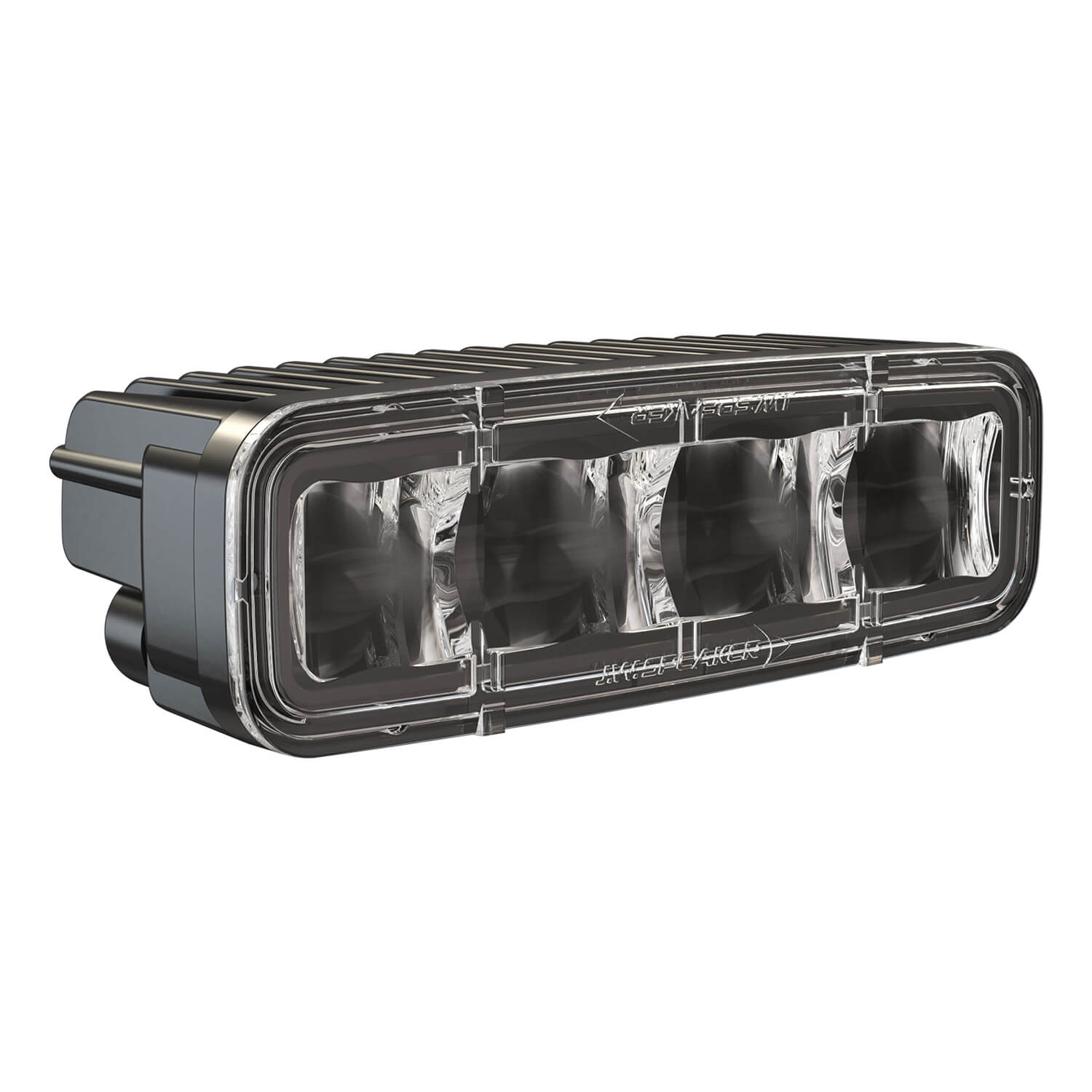

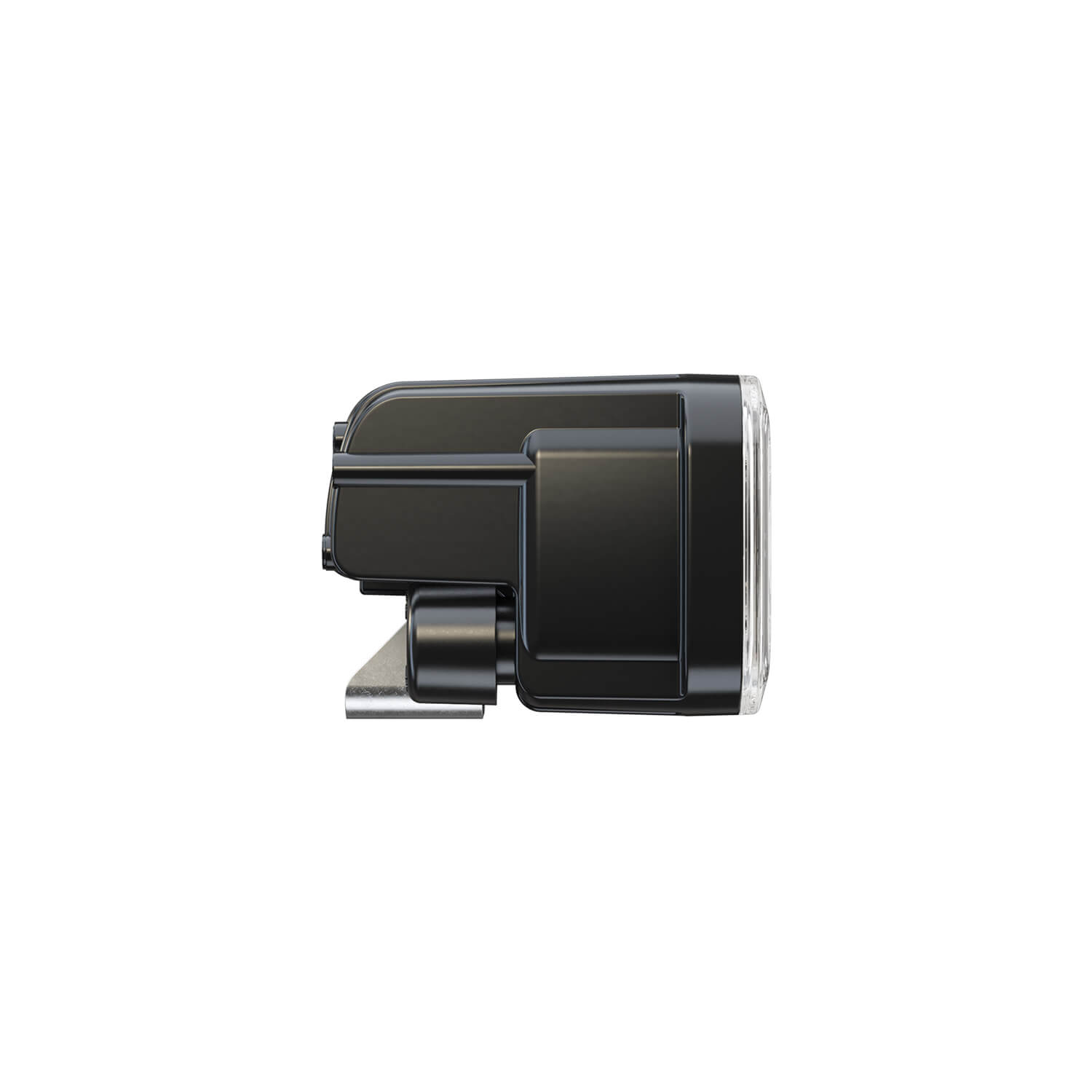

Model 793 is a periphery light for small industrial vehicles like forklift trucks, ground conveyors or tug trucks. It replaces model 791 with its very clear and visible colored line.

Model 793 is available in three variants, choose from red, blue or amber line.
Factsheets
Standards
Operating voltage [V], nominal 12-36
Operating voltage [V], functional 10-45
Power consumption [W] 12.0-16.2
Temperature range [° C] -40 to 65
Protection class IP69K
Standards UL
EMC (electromagnetic compatibility) ECE (Reg. 10)
Transient protection 330 V @ 1 Hz-100 pulses
Output
Brightness [lm], theoretically 496
Brightness [lm], eff. 110
Brightness [cd] 1200
Temperature range [° C] -40 to 65
Mounting

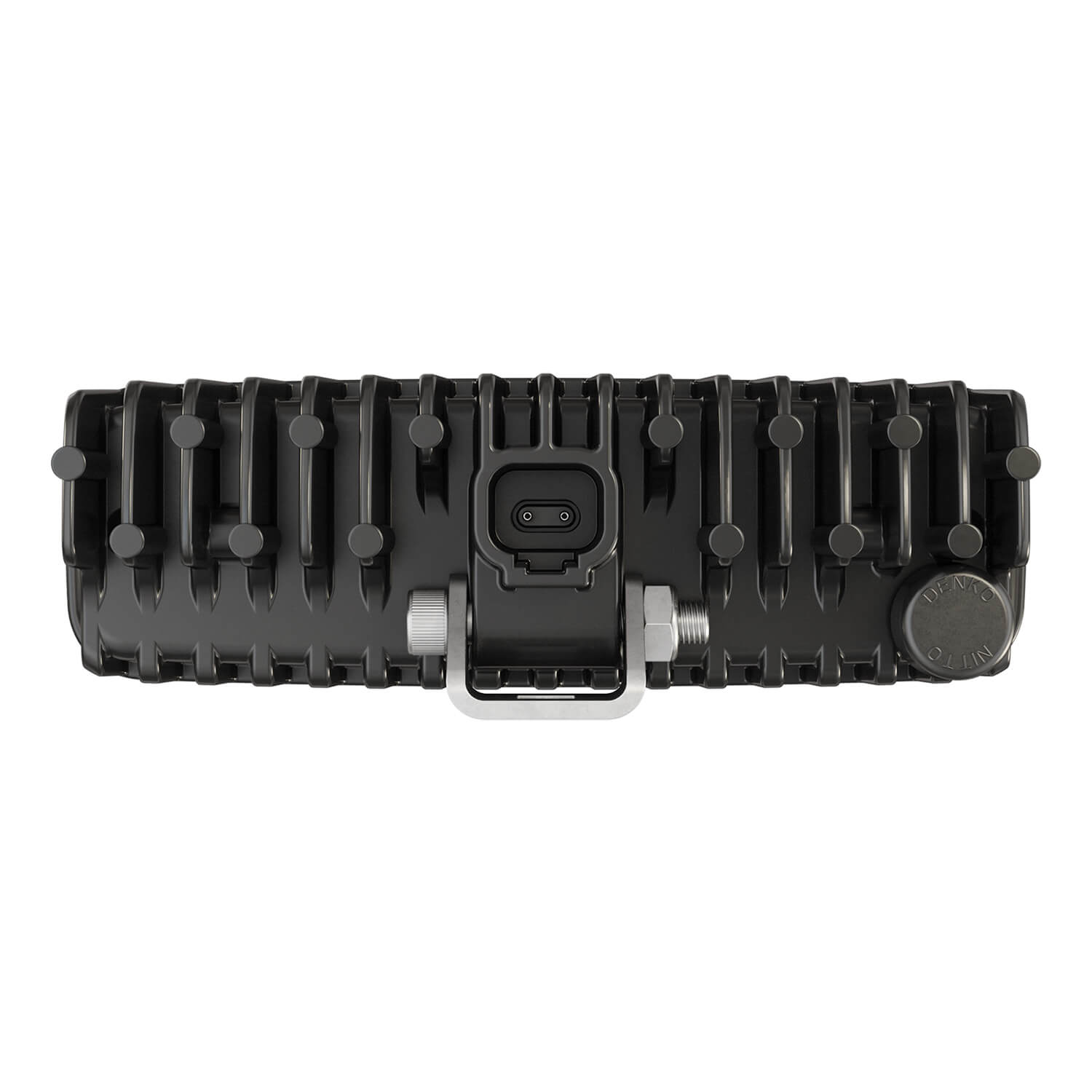

Connector Deutsch plug (DT04-2P)
Mating connector Deutsch plug (DT06-2S)
Mounting Spec. mounting bracket
Reverse polarity protection 1
Functions
Warning line
