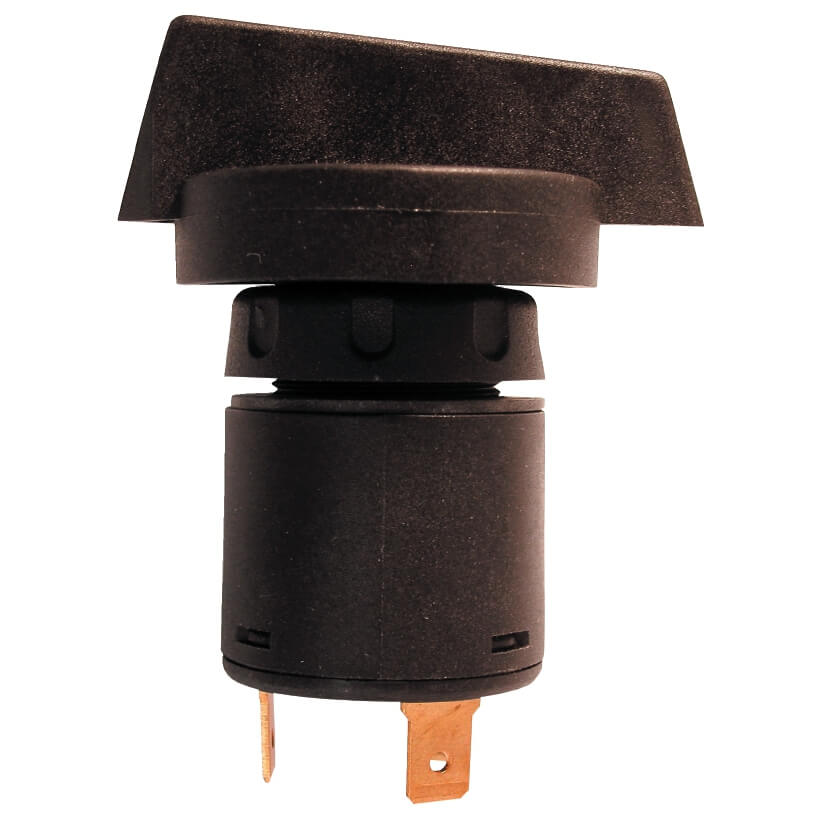

Start switch 470017

Preview: SS-395_Schaltschloss_470017.jpg


  • Item no.: SS-395-20017

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Description Technical data Installation Dimension drawing Funktionszeichnungen
Description
This switches are identical to our normal start switches but can be operated without a key.
Close menu
Start switch 470017
with large turn knob
This switches are identical to our normal start switches but can be operated without a key.
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12-24
Load capacity [A] 17.5 (12 V)
Temperature range [° C] -40 to 90
Protection class IP54 (key side)
Resilience Vibration 3 g 10-500 Hz
Output
Temperature range [° C] -40 to 90
Lifespan >50,000/<100,000 work cycles (electr./mechan.)
Mounting
Mounting
Connector Plug contacts
Mounting Einbau
Installation dimensions / diameter [mm] 22,5 / 30,7
Installation depth [mm] 35.5
Dimension drawings
Functional drawing
