Ignition, heat and start switch 470008

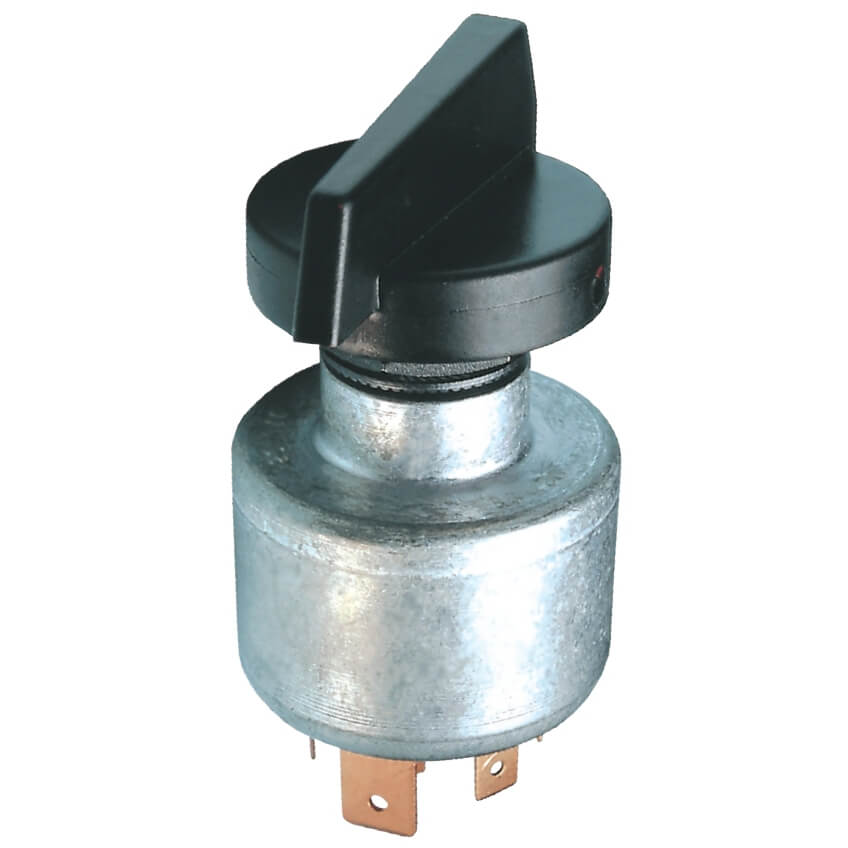

Preview: SS-789_Startschalter_471208.jpg


  • Item no.: SS-789-71208

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Description Technical data Installation Dimension drawing Funktionszeichnungen
Description
Type 470008 is a standard ignition, heat and start switch in proven Keya quality. As Type 471208 it comes with re-start inhibit and with a black knob.
Close menu
Ignition, heat and start switch 470008
type 471208, with turn knob (black), with re-start-inhibitor
Type 470008 is a standard ignition, heat and start switch in proven Keya quality. As Type 471208 it comes with re-start inhibit and with a black knob.
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12-24
Temperature range [° C] -40 to 90
Protection class IP54 (knob side)
Resilience Vibration 3 g 10-50 Hz
Output
Temperature range [° C] -40 to 90
Lifespan >50,000/<100,000 work cycles (electr./mechan.)
Mounting
Mounting
Connector Plug contacts
Mounting Built-in
Installation dimensions / diameter [mm] 16,5 / 45
Installation depth [mm] 58
Dimension drawings
Functional drawing
