Ignition and start switch 470108 / 471308

Preview: SS-985_Zuendstartschalter_471308.jpg


  • Item no.: SS-985-47138

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Description Technical data Installation Dimension drawing Funktionszeichnungen
Description
Type 470108 is a standard ignition, heat and start switch in proven Keya quality. As Type 471308 it comes with a red knob.
Close menu

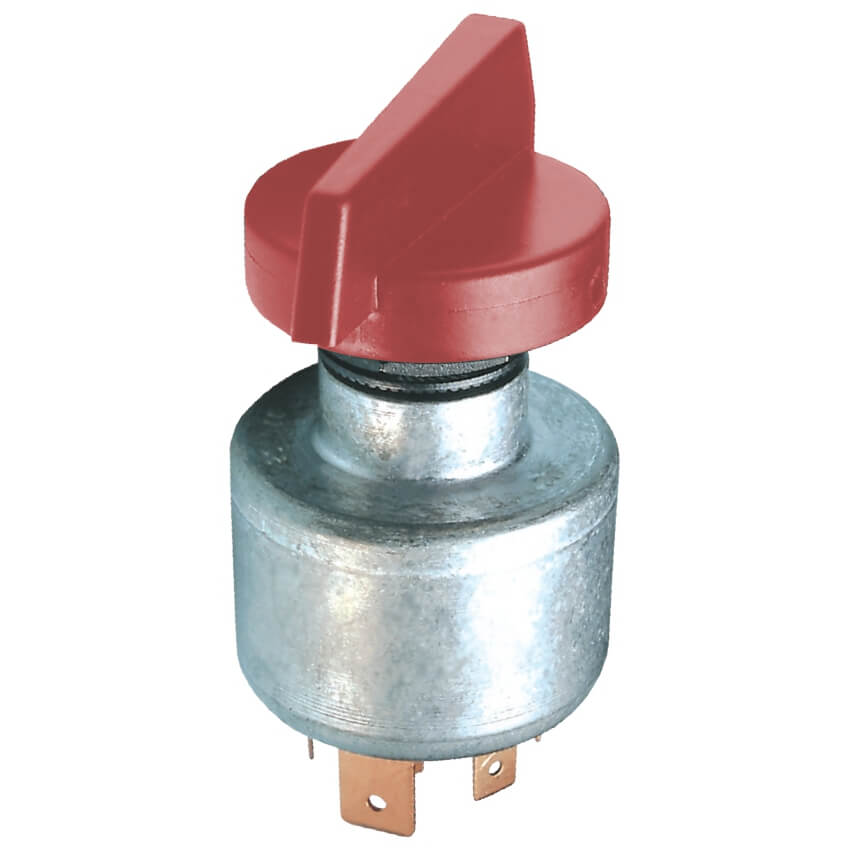

Ignition and start switch 470108 / 471308
with turn knob (red), with re-start-inhibitor
Type 470108 is a standard ignition, heat and start switch in proven Keya quality. As Type 471308 it comes with a red knob.
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12-24
Temperature range [° C] -40 to 90
Protection class IP54 (key side)
Resilience Vibration 3 g 10-500 Hz
Output
Temperature range [° C] -40 to 90
Lifespan >50,000/<100,000 work cycles (electr./mechan.)
Mounting
Mounting
Connector Plug contacts
Mounting Built-in
Installation dimensions / diameter [mm] 16,5 / 44
Installation depth [mm] 58.7
Dimension drawings
Functional drawing
