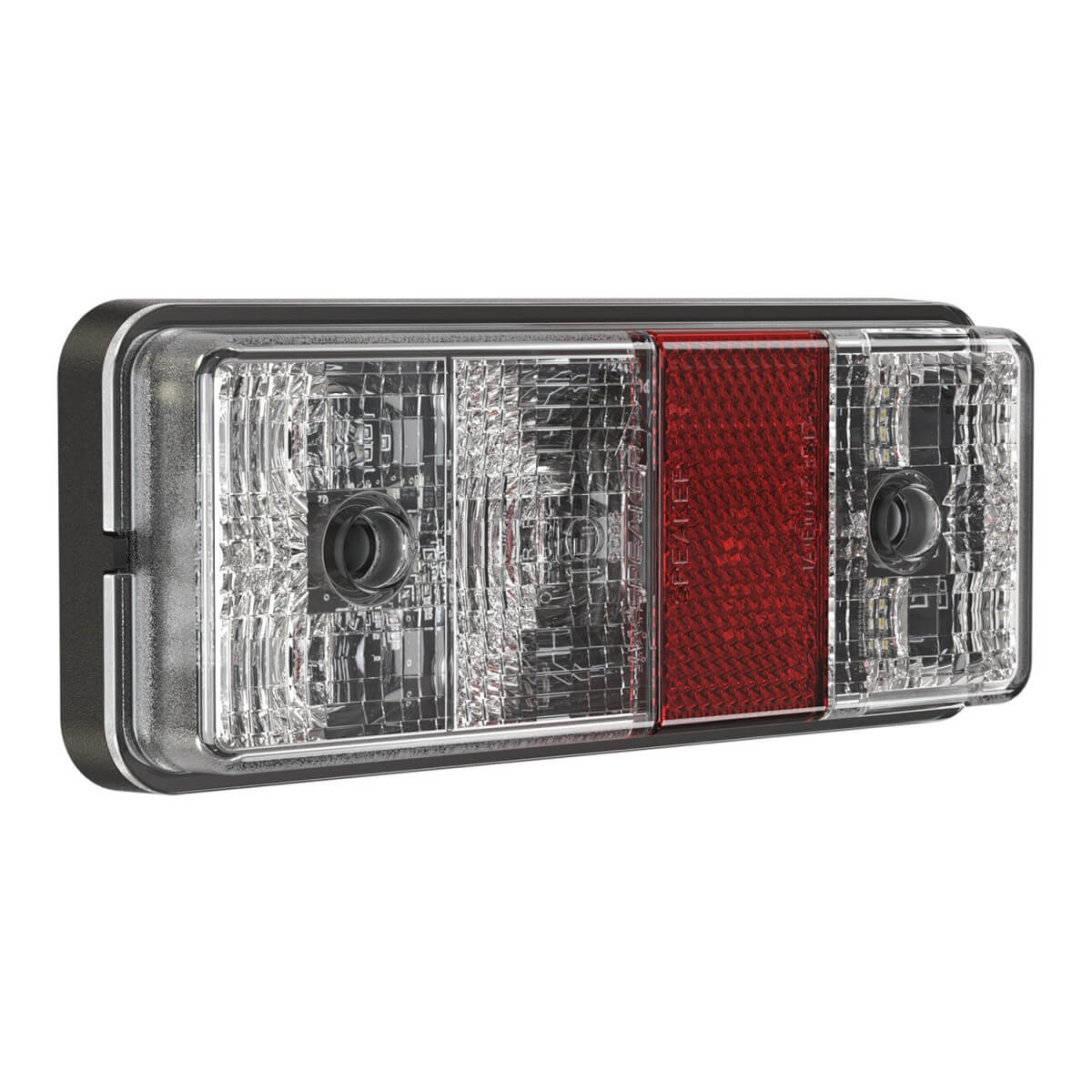

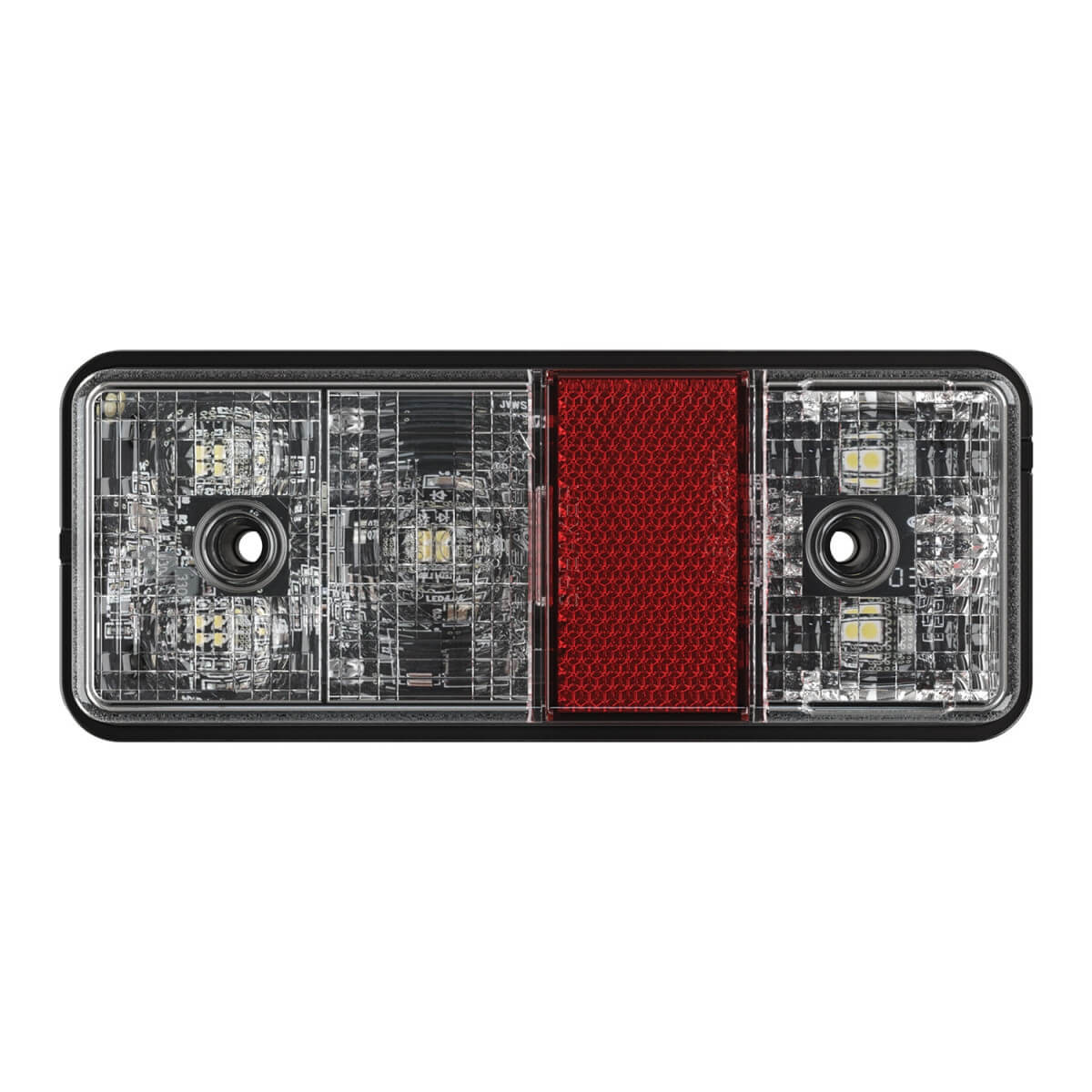

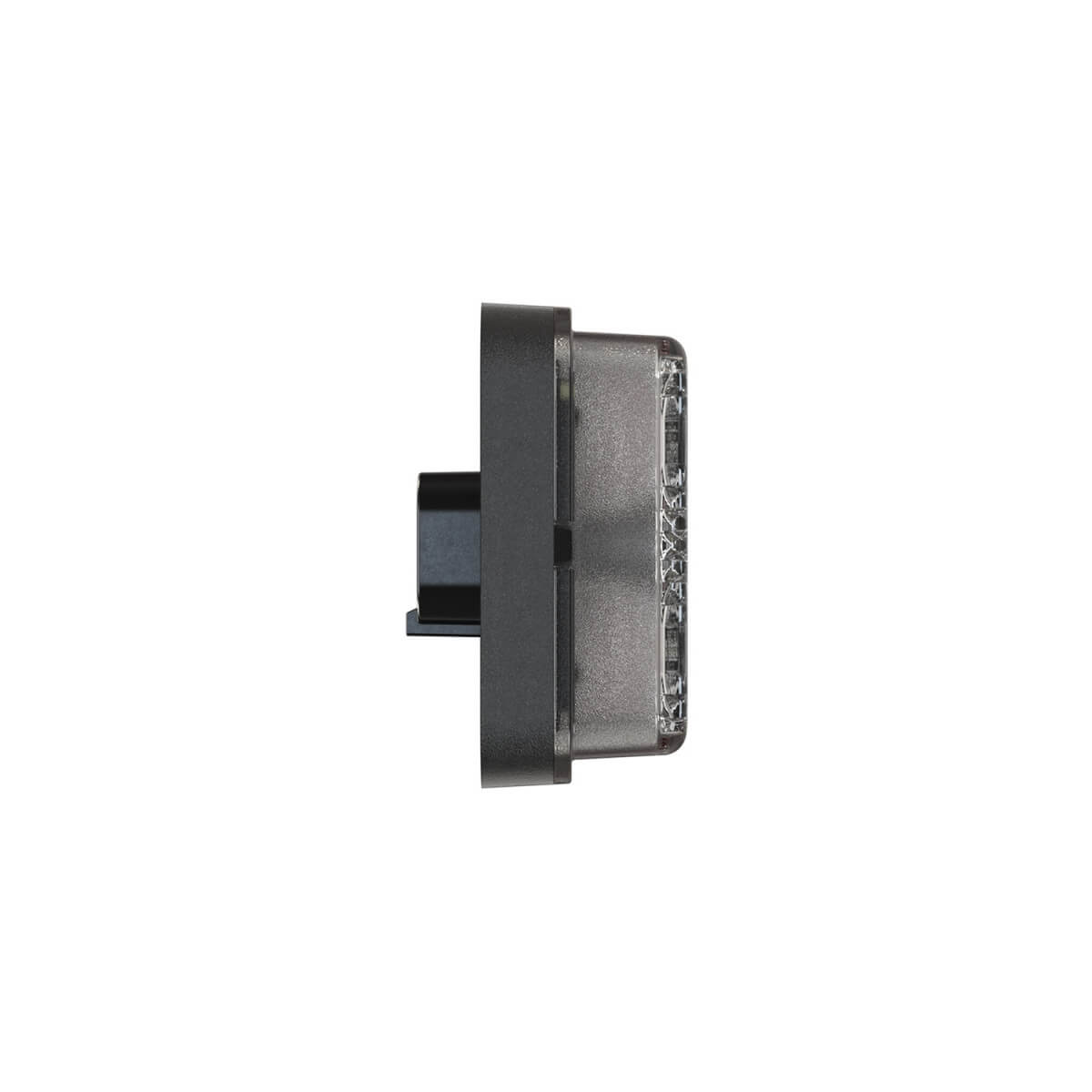

LED tail light model 220

12-24 V, stop, tail, turn, with backup light, ECE road approval (Reg. 3, 6, 7 & 23)

Small tail light that covers all needs!

The Model 220 is a rectangular stop, tail & turn light designed with premium performance LEDs for a highly visible signal for maximum safety. This compact combination lamp has a total of 4 functions in addition to reflex reflectors: (1) rear turn, (2) tail light, (3) stop light, (4) reverse.

Molded of rugged polycarbonate, these lamps are perfect for off-road, agricultural, intralogistic and other industrial vehicles.

Also available as position light model 221 (front postition with turn signal, part no. PL-1408-22451).

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	6-32
Power consumption [W]	0.24 (tail), 1.92 (stop), 17.4 (turn), 1.68 (backup)
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 3, 6, 7, 23)
Transient protection	150 V @ 1 Hz-100 Pulse

Output

Beam pattern / lens	Schluss-, Brems- und Rückfahrlicht mit Fahrtrichtungsanzeiger
Temperature range [° C]	-40 to 65

Mounting

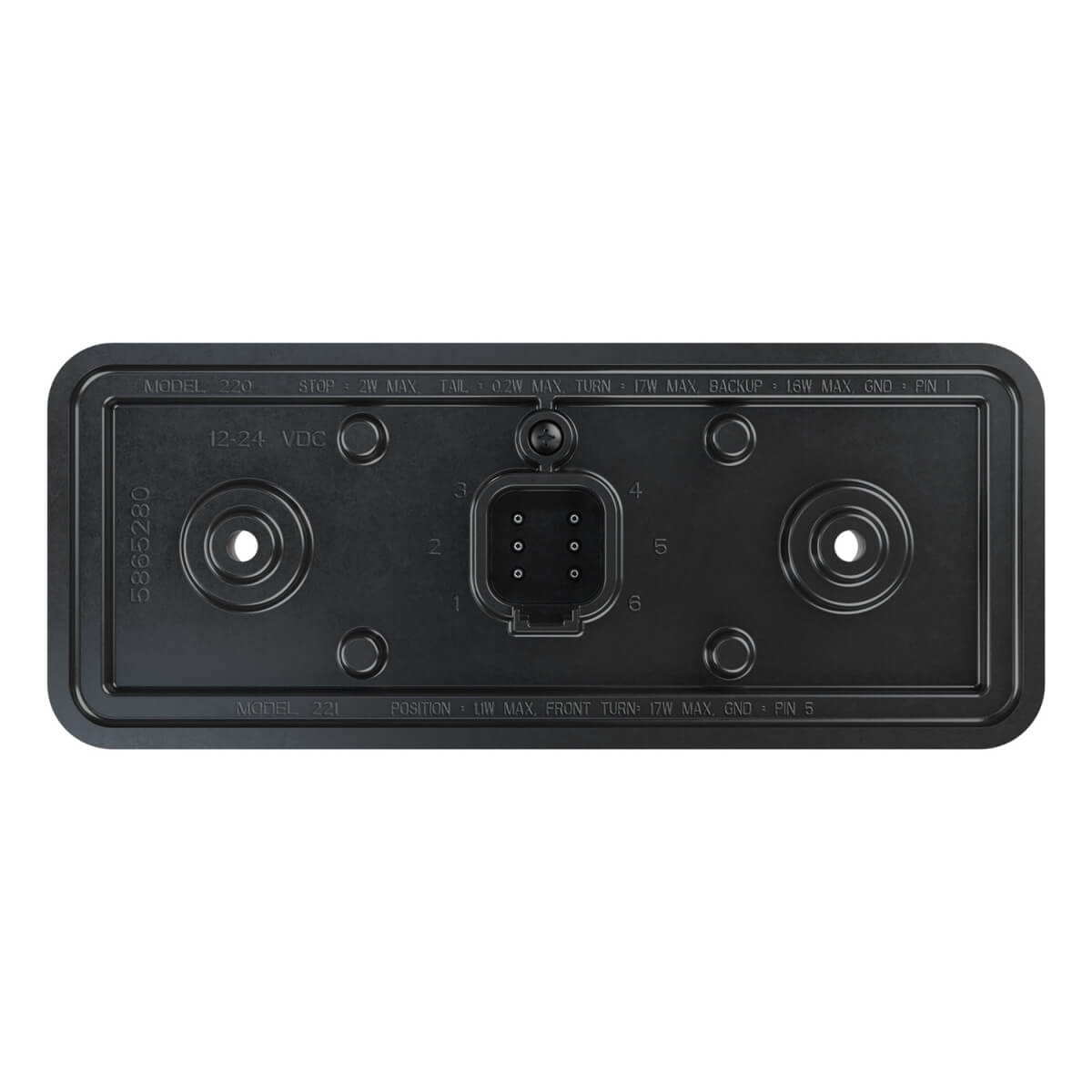

Connector	Deutsch plug (DT04-6P)
Mating connector	Deutsch-Stecker (DT06-6S)
Mounting	Flachmontage (mit Steckerdurchführung), 2 Schrauben
Reverse polarity protection	1
