Item no.: PL-914-22481

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

With the different position and rear lights of models 223 and 224 the four functions of rear lighting can be combined in a relatively free manner. Tail and stop lights combined with turn signals,...

Close menu

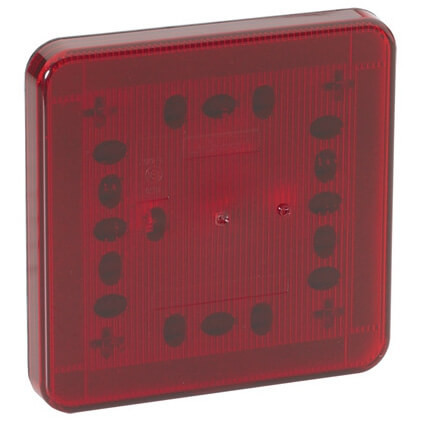

LED tail light model 224

12-24 V, stop light and tail light, red, ECE road approval (Reg. 3, 7), cable

With the different position and rear lights of models 223 and 224 the four functions of rear lighting can be combined in a relatively free manner. Tail and stop lights combined with turn signals, tail and stop lights combined with back up light or tail and stop light, turn signals and back up light can be separate lights. Anything is possible.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Power consumption [W]	0.36 (tail), 2.38 (stop)
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 3, 7), SAE (J585, J586, J594, J2040, J2261), ASABE (279.14)

Output

Beam pattern / lens	Schluss- und Bremslicht
Temperature range [° C]	-40 to 65

Mounting

Connector	Deutsch plug (DT04-4P)
Mating connector	Deutsch plug (DT06-4S)
Mounting	Flat mount (with plug entry)
Installation dimensions / diameter [mm]	119,5x119,5
Reverse polarity protection	1
