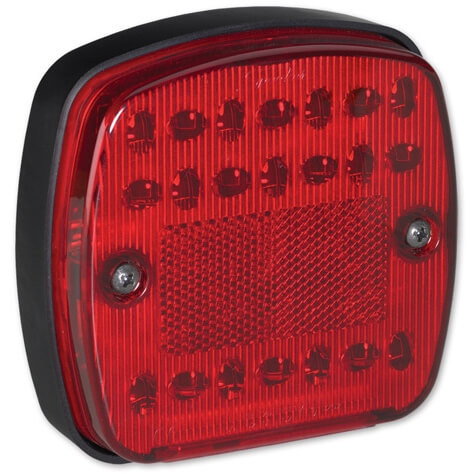

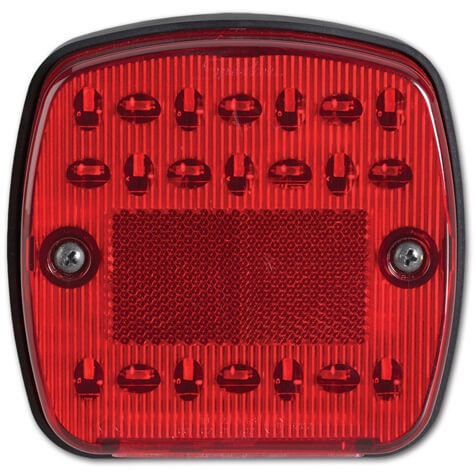

LED tail light model 236

Preview: TL-656_Ruecklicht_236.jpg Preview: TL-656_Ruecklicht_236_2.jpg


  • Item no.: TL-656-11236

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Description Technical data Installation Functions Dimension drawing
Description
One of the most popular rear lights is now also available as LED version. Modern technology inside of traditional design. Despite the entirely red lens the lamp shines in a deep yellow. Optional...
Close menu
LED tail light model 236
12-24 V, stop and, tail light, with turn signal, with licence plate illuminator, ECE road approval (Reg. 3, 6, 7)
One of the most popular rear lights is now also available as LED version. Modern technology inside of traditional design. Despite the entirely red lens the lamp shines in a deep yellow. Optional license plate illuminator available.

Optionally also available with license plate illumination.
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12-24
Power consumption [W] 1.56 (tail), 4.2 (stop), 15.6 (turn)
Protection class IP67
Standards ECE (Reg. 3, 4, 6, 7)
Mounting
Mounting
Connector Deutsch plug (DT04-4P)
Mating connector Deutsch plug (DT06-4S)
Mounting Flat mount (with cable entry)
Reverse polarity protection 1
Funktion
Functions
Turn signal
Taillight
Stop light
License plate illumination
Road approval
Dimension drawings
