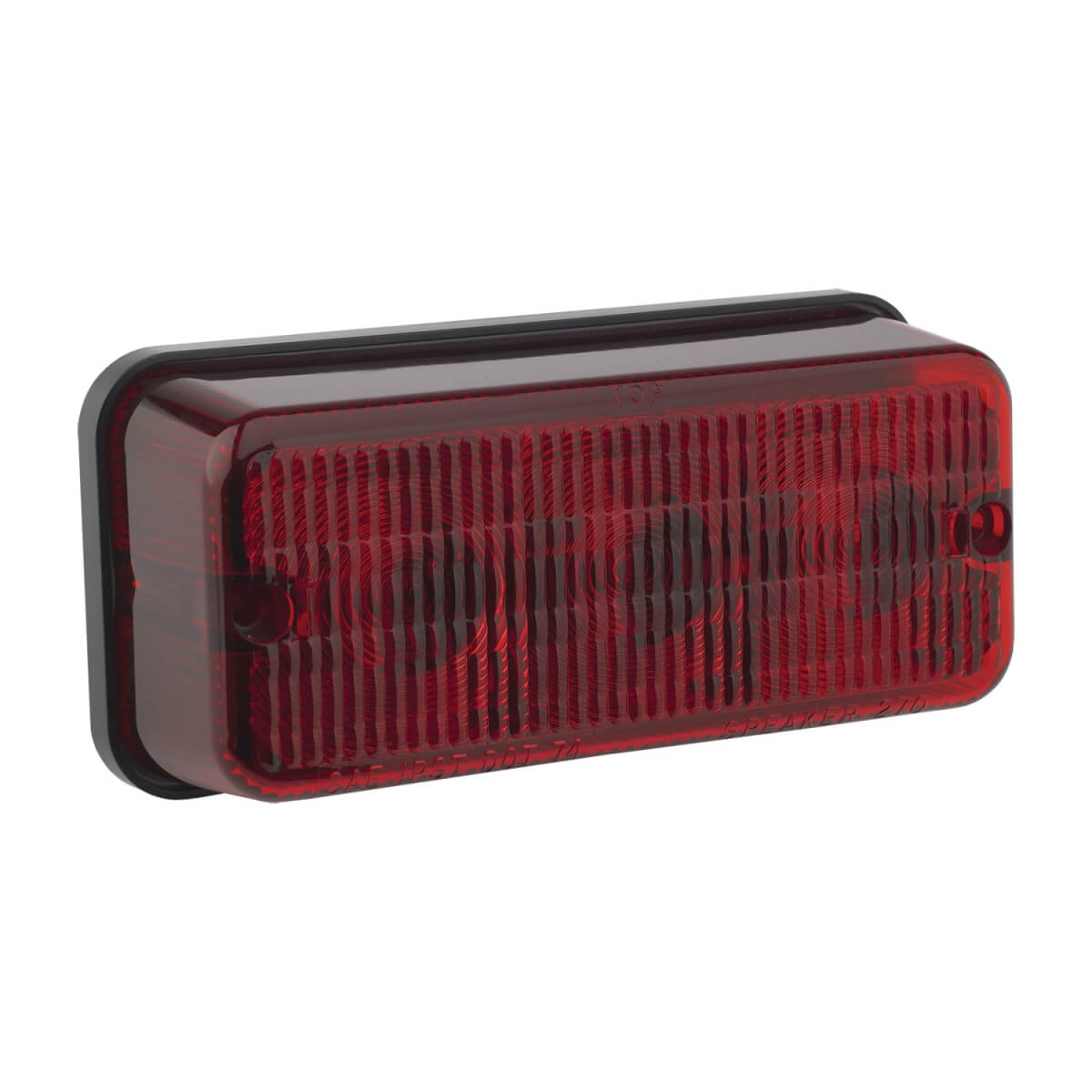

LED tail light model 270

Preview: TL-1223_Ruecklicht_270.jpg


  • Item no.: TL-1223-41361

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
Description Technical data Installation Functions Dimension drawing
Description
Model 270 is a classic stop and tail light. It is also available as turn signal (PL-822-27021).
Close menu
LED tail light model 270
12 V, stop and tail light, red, SAE, ECE
Model 270 is a classic stop and tail light. It is also available as turn signal (PL-822-27021).
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12
Power consumption [W] 0.084 (tail), 0.84 (stop)
Temperature range [° C] -40 to 65
Protection class IP67
Standards ECE (Reg. 7), SAE (J575, J585, J586, J588, J1889, J2040, J2139, J2261), FMVSS (108), UL 583
Output
Beam pattern / lens Schluss- und Bremslicht
Temperature range [° C] -40 to 65
Mounting
Mounting
Connector Bare wire leads
Mounting Flat mount (with cable entry)
Reverse polarity protection 1
Funktion
Functions
Taillight
Stop light
Road approval
Dimension drawings
