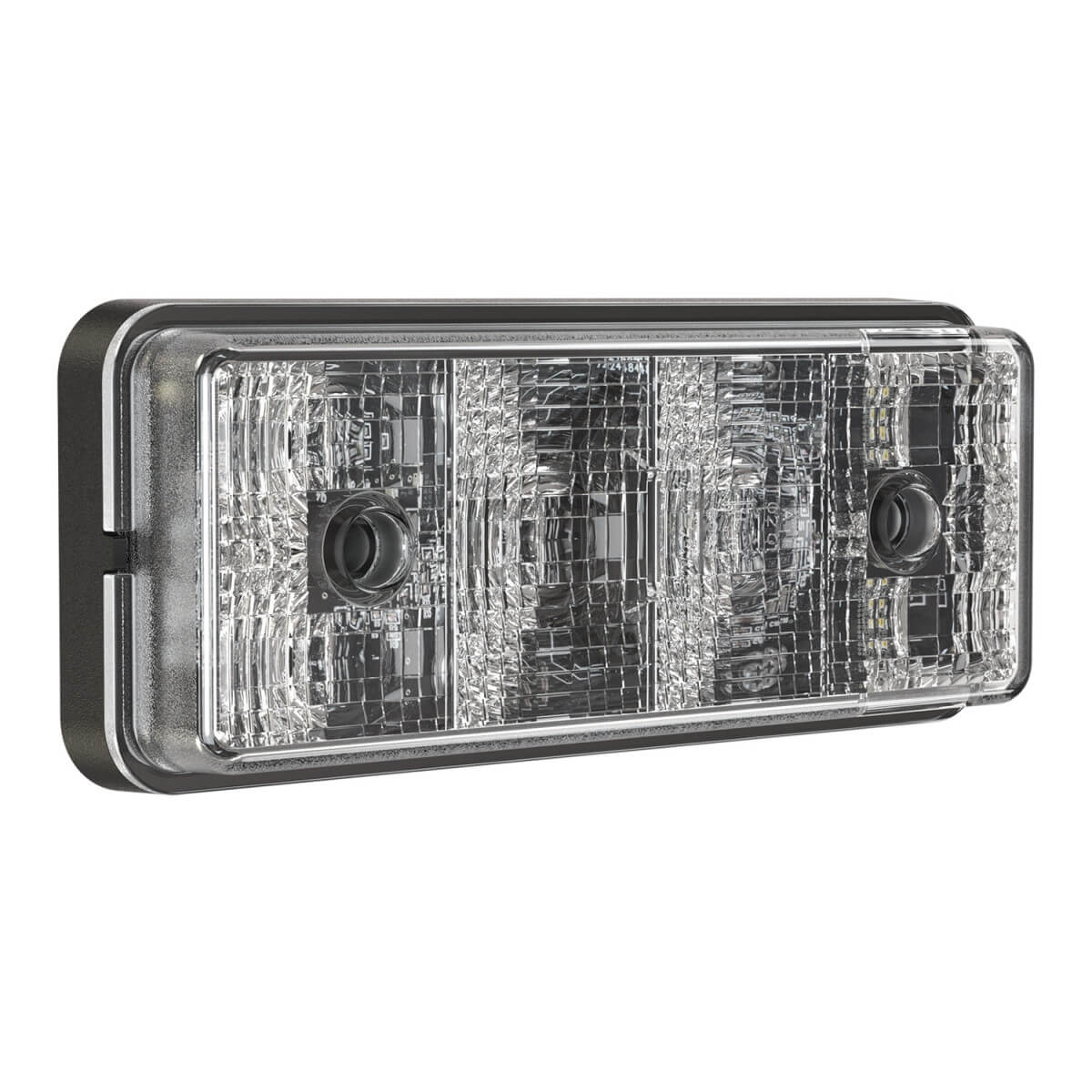

Preview: PL-1408_Fahrtrichtungsanzeiger_221.jpg

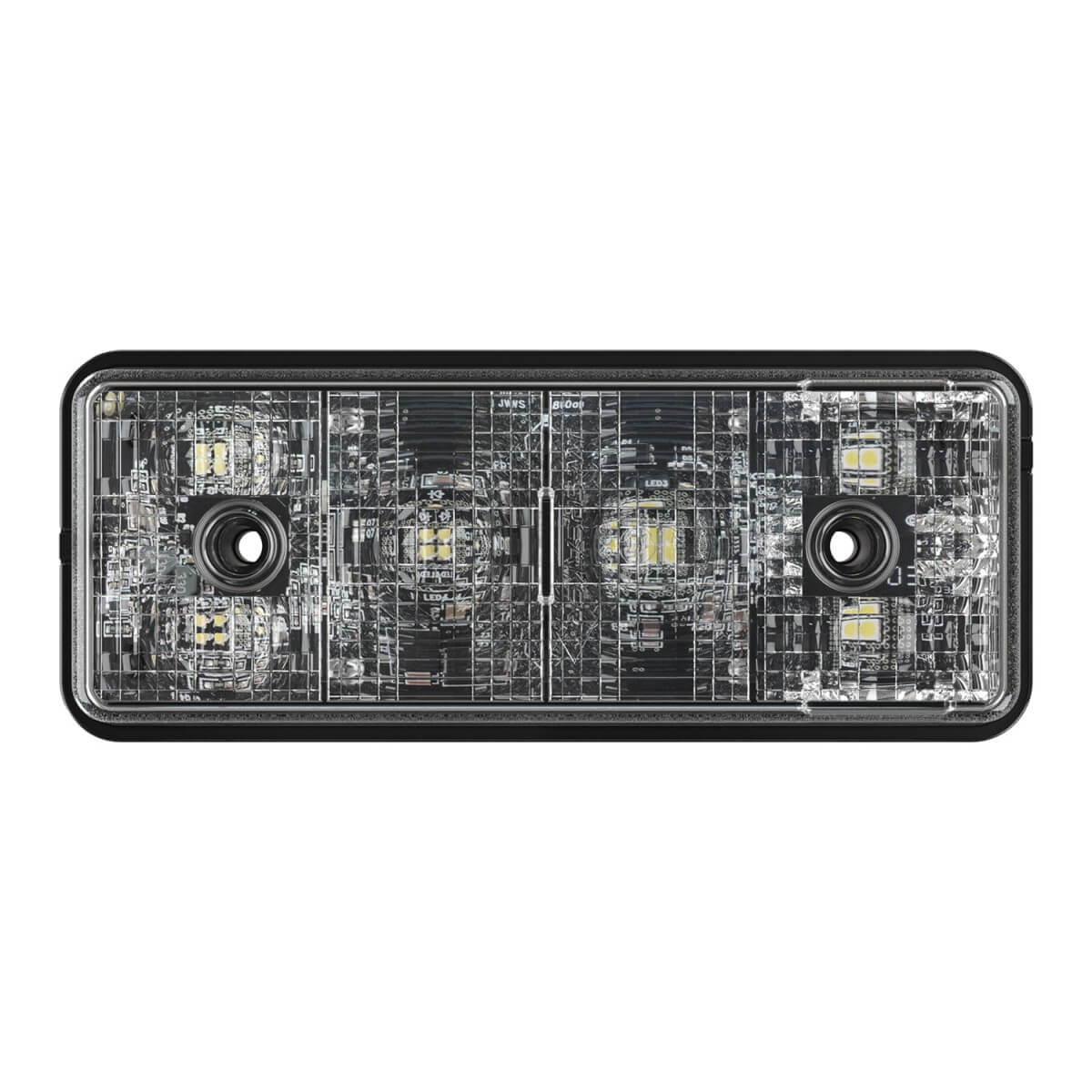

Preview: PL-1408_Fahrtrichtungsanzeiger_221_2.jpg

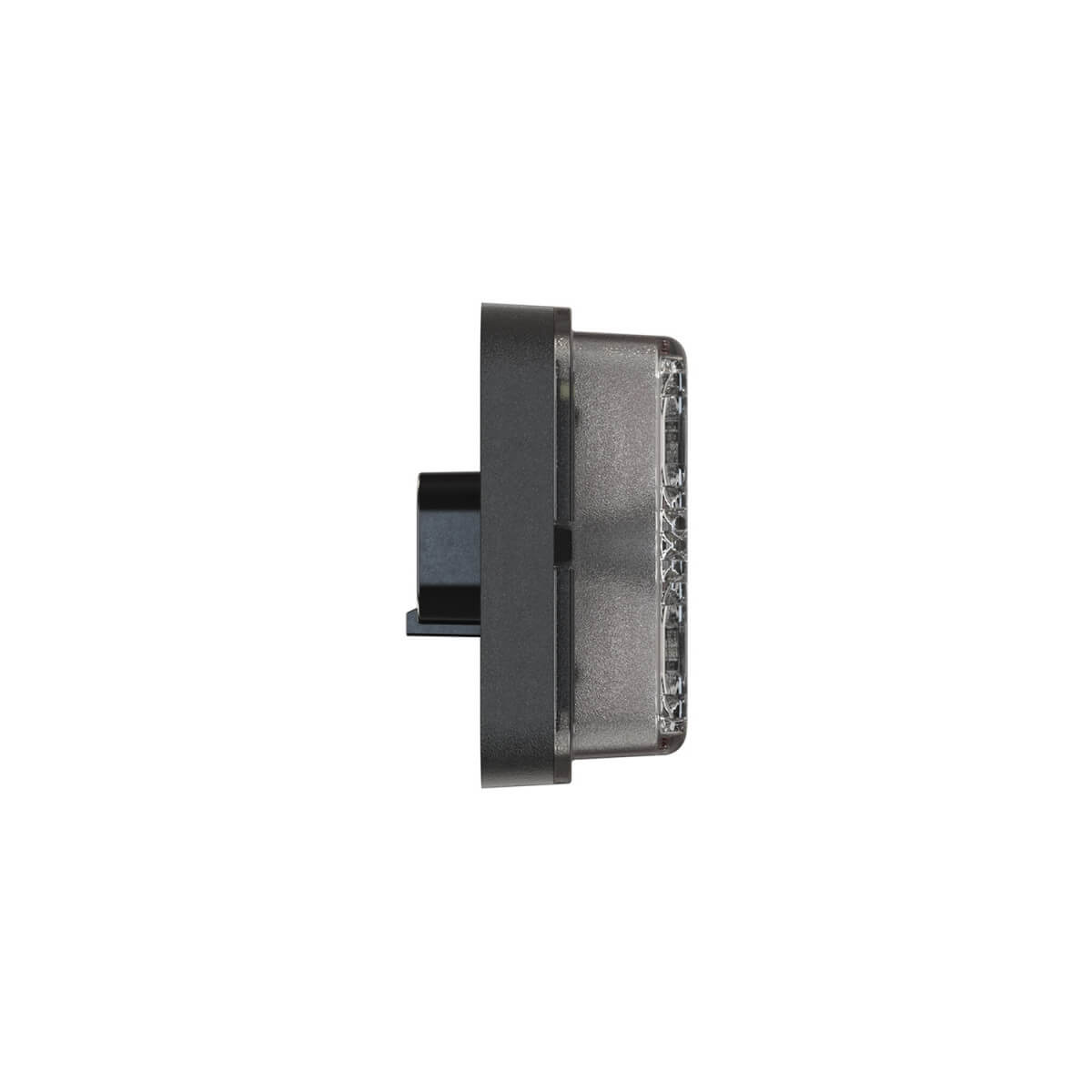

Preview: PL-1408_Fahrtrichtungsanzeiger_221_3.jpg

Preview: PL-1408_Fahrtrichtungsanzeiger_221_4.jpg

Item no.: PL-1408-22451

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

Model 221 is a rectangular front position light with integrated turn signal. Powerful LEDs provide high visibility with low power consumption. The housing is made of sturdy polycarbonate. Thus,...

Close menu

LED turn signal model 221

12-24 V, with front position light, ECE road approval (Reg 6, 7), clear lens

Model 221 is a rectangular front position light with integrated turn signal. Powerful LEDs provide high visibility with low power consumption.

The housing is made of sturdy polycarbonate. Thus, this lamp is ideal for various applications such as off-road, agricultural, Intralogistics and other industrial vehicles.

Also available as tail light model 220 (stop, tail, turn and backup light, part no. TL-1407-22411).

Factsheets

Standards

Operating voltage [V], nominal	12-24
Power consumption [W]	17.04 (turn), 1.2 (position)
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 6, 7)
Transient protection	150 V @ 1 Hz-100 pulses

Output

Beam pattern / lens	Positionslicht mit Fahrtrichtungsanzeiger
Temperature range [° C]	-40 to 65
