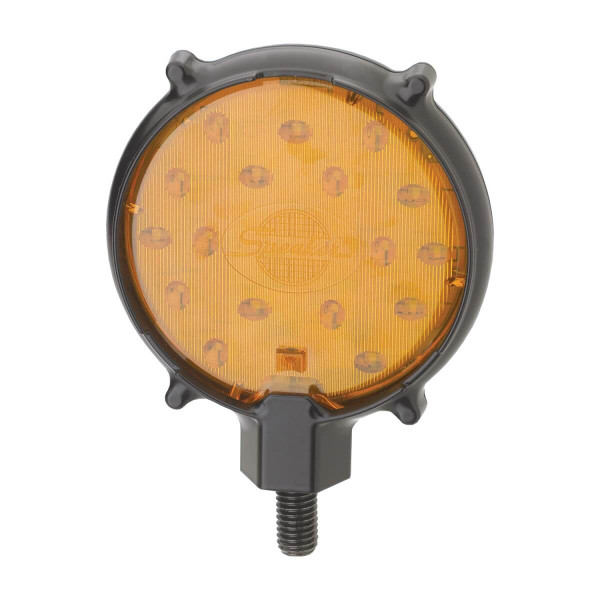

LED turn light model 206

12-24 V, amber, with guard

Model 206 is a small series of rear lights. These are mounted via a hollow bolt, with the connecting cable running through the bolt.

Model 206 lights up the front and rear as indicators and only on one side as stop or tail light.

Features:

- Housing made of rust- and corrosion-resistant polycarbonate

- Compact design for easy positioning

- Perfect for use on tractors or lorries

Factsheets

Standards

Operating voltage [V], nominal	12-24
Power consumption [W]	6.41-6.9
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	SAE (J974), ASABE (279)

Output

Beam pattern / lens	Fahrtrichtungsanzeiger
Temperature range [° C]	-40 to 65

Mounting

Connector	Bare wire leads
Mounting	5/16"
Reverse polarity protection	1

Functions

Turn signal
