LED turn signal model 234 SmartHeat
12-24 V, turn signal, DOT, with heated lens

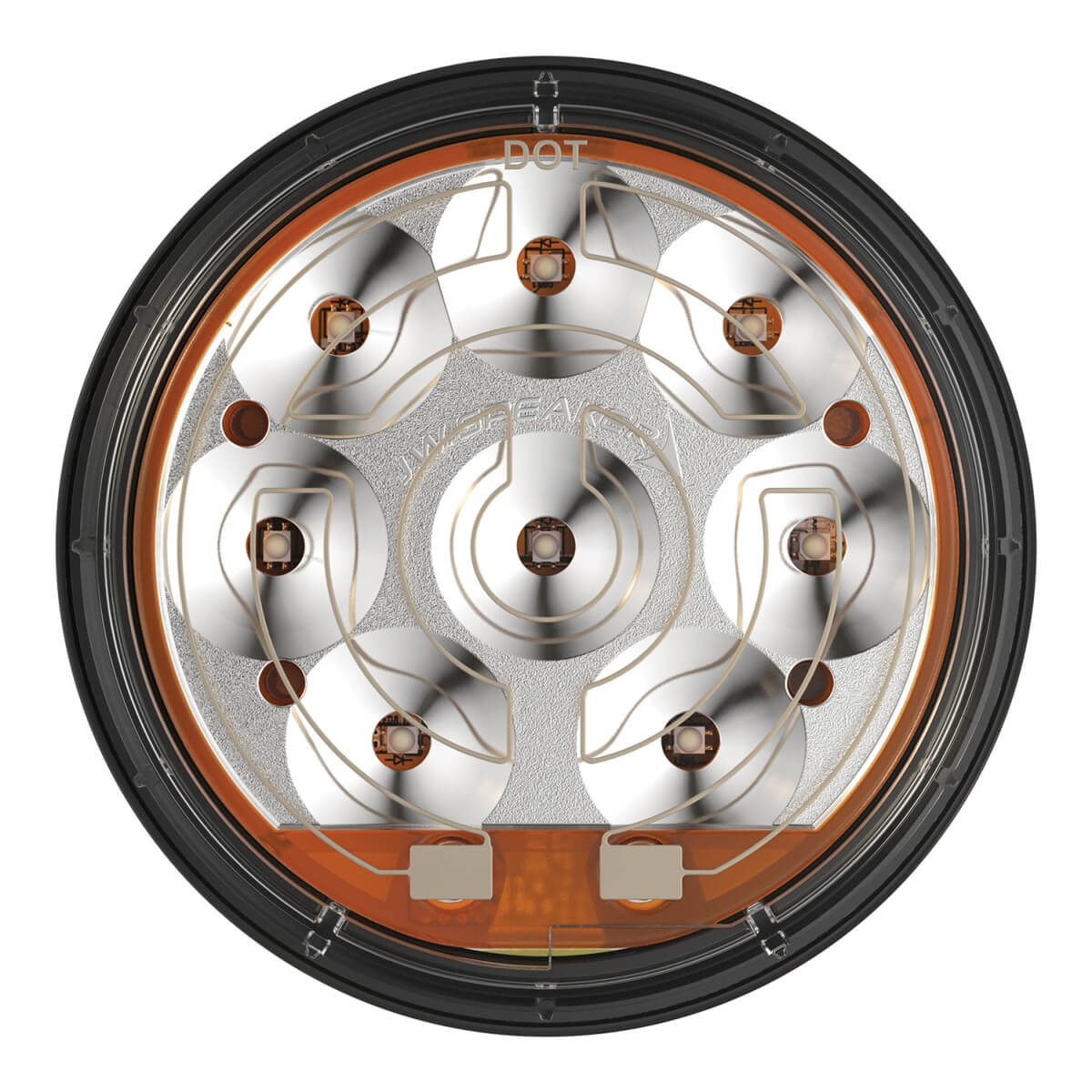

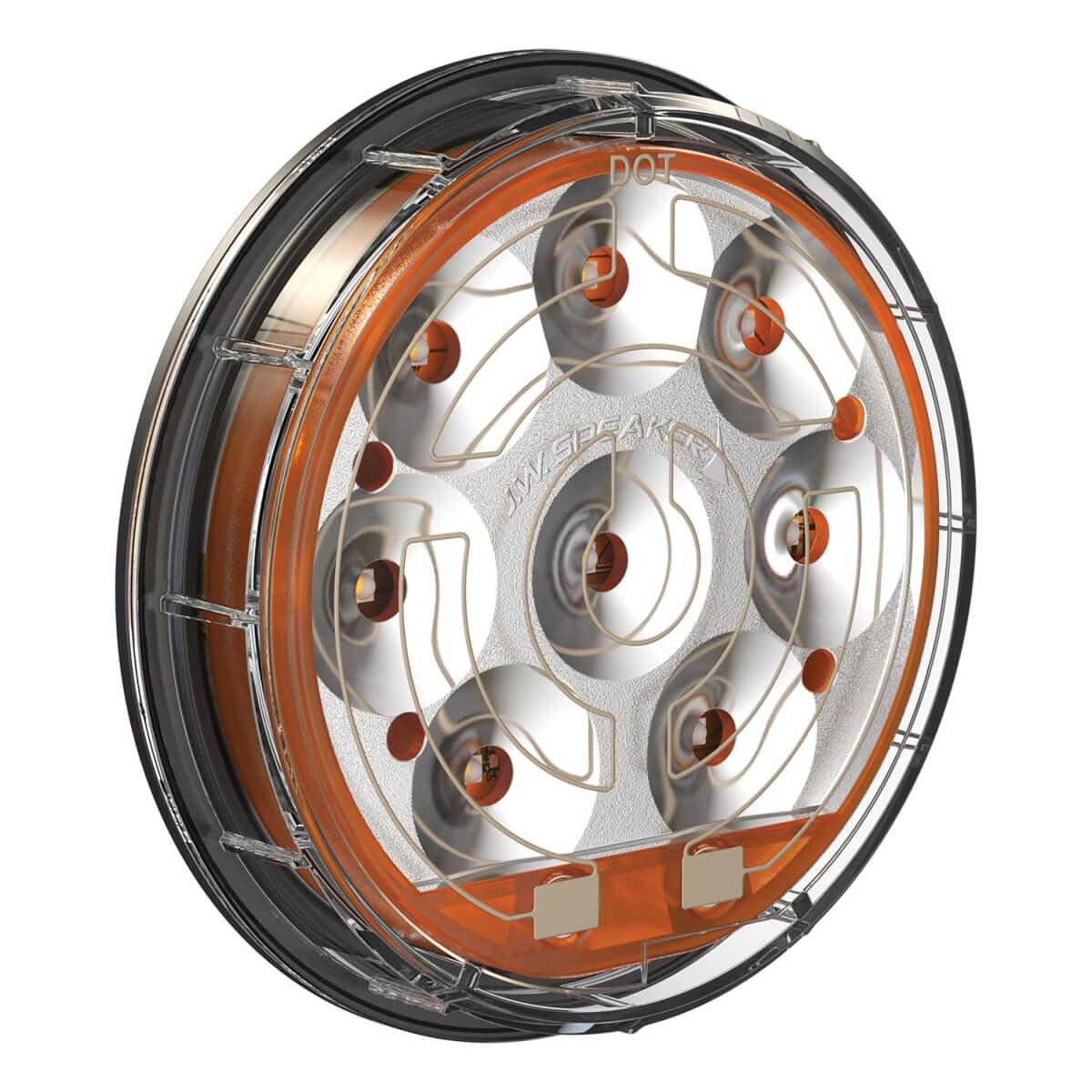

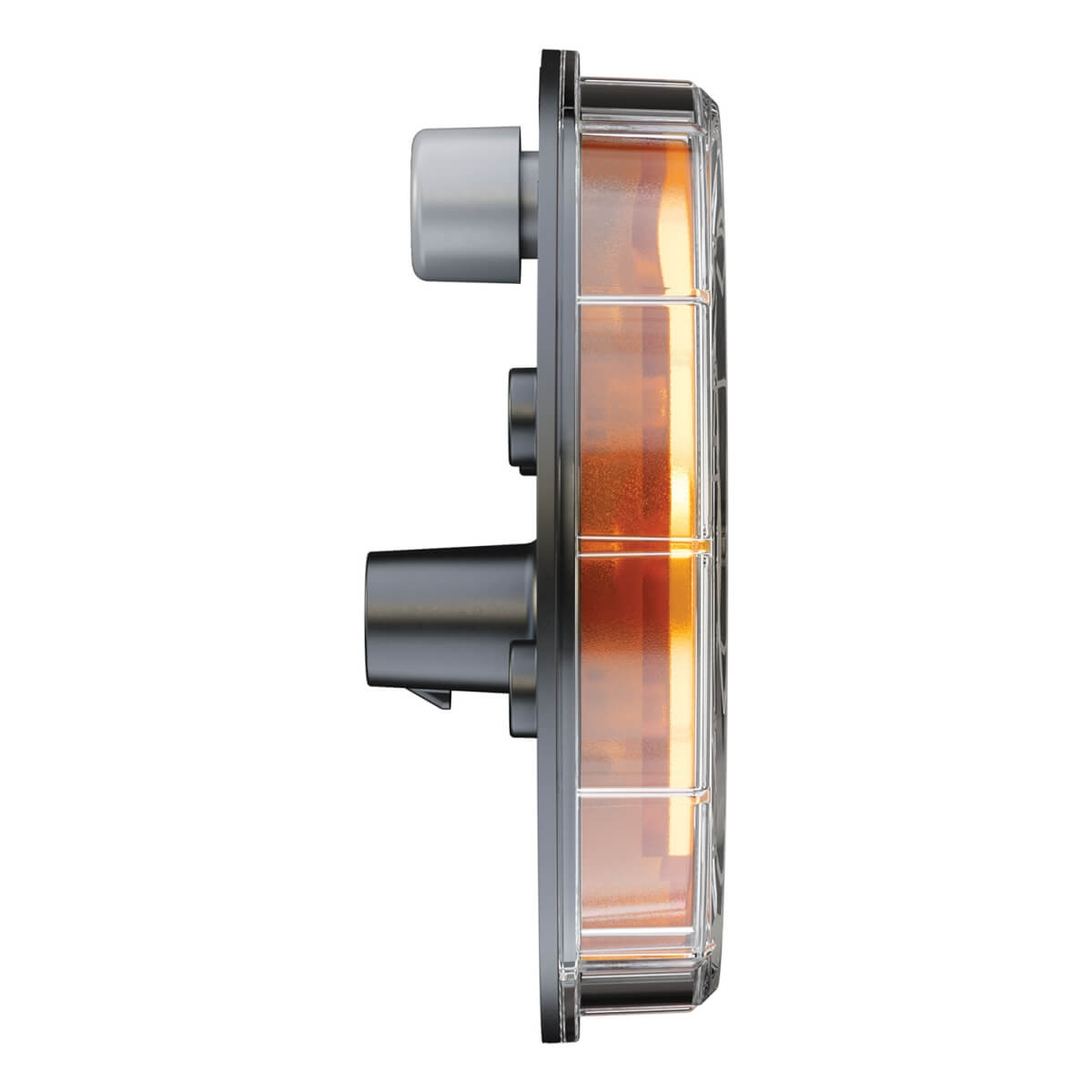

Model 234 looks like an ordinary LED turn signal in the popular 4" format (diameter 10 cm), but the highlight is in detail, because at the latest in the winter you are happy about the heated lens, which ensures good visibility even in bad conditions.

Note: The turn signal has only one road approval according to DOT, not according to the European ECE.
Factsheets
Specifications
Standards
Operating voltage [V], nominal 12-24
Operating voltage [V], functional 9-32
Power consumption [W] 15.6-16.8 (turn), 10.8-12 (heater)
Protection class IP69K
Output
Brightness [lm], eff. 54
Beam pattern / lens Fahrtrichtungsanzeiger
Miscellaneous with heated lens
Mounting
Mounting
Connector AMP (#282087-1)
Mating connector AMP (282087-1)
Mounting Built-in
Installation dimensions / diameter [mm] 101,8
Reverse polarity protection 1
Funktion
Functions
Turn signal
Dimension drawings
