LED strobe 3794 UltraFlex

Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
The UltraFlex by ECCO is a directional strobe that can be mounted with self-adhesive tape that adheres very well. The housing is designed to be flexible so that the strobe can be held securely not...
LED strobe 3794 UltraFlex
12-24 V, amber/white, flexible housing

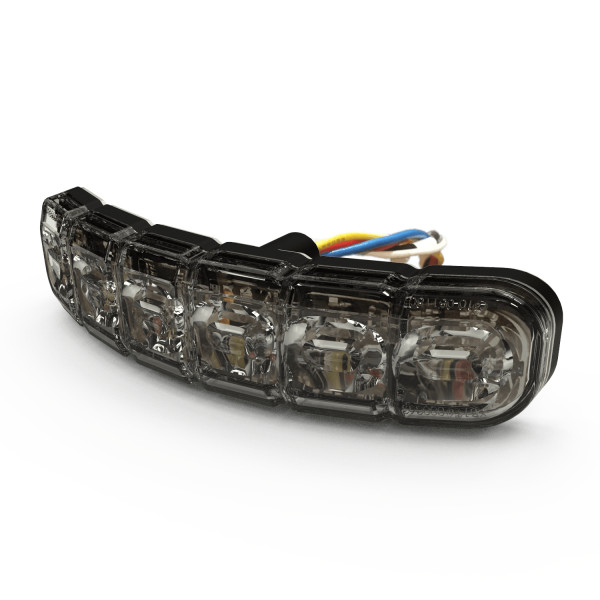

The UltraFlex by ECCO is a directional strobe that can be mounted with self-adhesive tape that adheres very well. The housing is designed to be flexible so that the strobe can be held securely not only on flat surfaces but also on curved surfaces. A two-bolt bezel is also included as an accessory for easy installation on flat surfaces.

The diffuser is also clear and flexible silicone that resists yellowing and warping. Its 12 dual-color LEDs provide exceptional output with combinations of amber and white colours available. With 69 different flash patterns and the possibility to synchronise several lights with each other, this strobe light is the ultimate solution for many tasks.
Factsheets
Standards
Operating voltage [V], nominal 12-24
Power consumption [W] 9.6
Temperature range [° C] -30 to 50
Protection class IP69K
Standards ECE (Reg. 65), CE
EMC (electromagnetic compatibility) ECE (Reg. 10)
Output
Brightness SAE Cl. I / II
Temperature range [° C] -30 to 50
Frequency, revolutions [Hz, rpm, fpm] 69 versch. Blitzmuster
Mounting
Connector Bare leads
Mounting Bonding
Reverse polarity protection 1
