Item no.: BL-2164-37521

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

This versatile surface mount light features high-intensity LEDs providing exceptional warning synchronization capability and SAE Class I operation. Compact design, ability to fit confined mounting...

Close menu

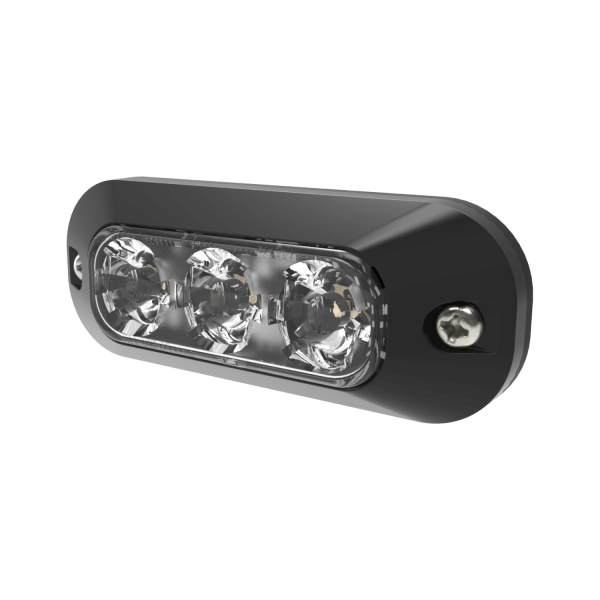

LED strobe ED3703

12-24 V, blue

This versatile surface mount light features high-intensity LEDs providing exceptional warning synchronization capability and SAE Class I operation. Compact design, ability to fit confined mounting locations, zero maintenance and a 5-year warranty are just some of the many benefits. A range of accessory brackets are also available to further maximize mounting options.

Factsheets

Standards

Operating voltage [V], nominal	12-24
Operating voltage [V], functional	9-32
Power consumption [W]	5.1
Temperature range [° C]	-40 to 65
Protection class	IP67
Standards	ECE (Reg. 65, Cl.1), SAE (J595)
EMC (electromagnetic compatibility)	ECE (Reg. 10)

Output

Brightness	SAE Cl. I
Temperature range [° C]	-40 to 65
Frequency, revolutions [Hz, rpm, fpm]	div. Blitzmuster
