LED rotating and strobe beacon model 407


Select variant:

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!
One for all! If you are looking for a suitable warning light, you can quickly lose yourself in the jungle of possibilities. But it is so easy to find the optimal strobe for (almost) every...

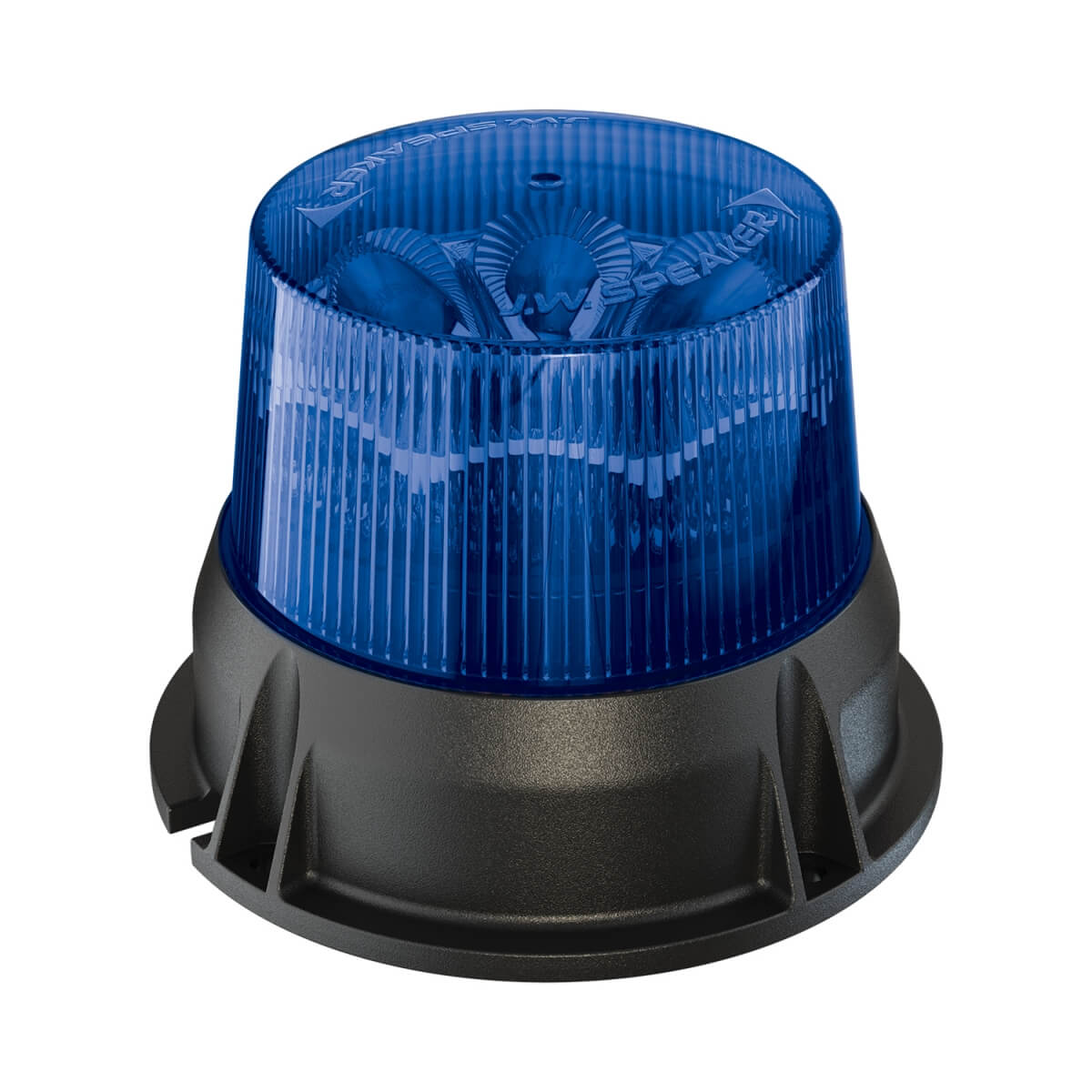

LED rotating and strobe beacon model 407
12-80 V (9-110 V), blue, 6 flashing modes (incl. rotating modus), Class I
One for all!

If you are looking for a suitable warning light, you can quickly lose yourself in the jungle of possibilities. But it is so easy to find the optimal strobe for (almost) every application. Because the solution is quite simple: Model 407. There is no need for another warning light!

The rotating and strobe beacon measures only 97 mm in total height. This makes the Model 407 suitable for a wide range of applications, especially where space is not unlimited.

The main focus was on extreme longevity. Model 407 has a solid base made of die-cast aluminum. The beacon dome is completely made of impact-resistant polycarbonate and defies even powerful hammer strikes. And, of course, the warning light is equipped with extremely durable LEDs.

The construction of this warning light provides a very good seal against the effects of water and other harsh environmental conditions. IP67 sealing is self-evident.

Model 407 is available in orange, red, green and blue and for both roof mounting and pipe mounting.
Factsheets
Standards
Operating voltage [V], nominal 12-80
Operating voltage [V], functional 9-110
Power consumption [W] 11.04-13.68
Temperature range [° C] -40 to 65
Protection class IP67
Standards SAE (J845), UL
Output
Brightness SAE Cl. I
Brightness [cd] 560
Temperature range [° C] -40 to 65
Frequency, revolutions [Hz, rpm, fpm] Rundummodus, 480 (4x), 540 (fast), 240 (2x), 300 (burst), 60 (steady)
Miscellaneous 6 diff. strobe pattern (incl. rotating mode)
Mounting
Connector Bare wire leads
Mounting Roof mount, 4 screws
Installation dimensions / diameter [mm] 122,8
Reverse polarity protection 1
