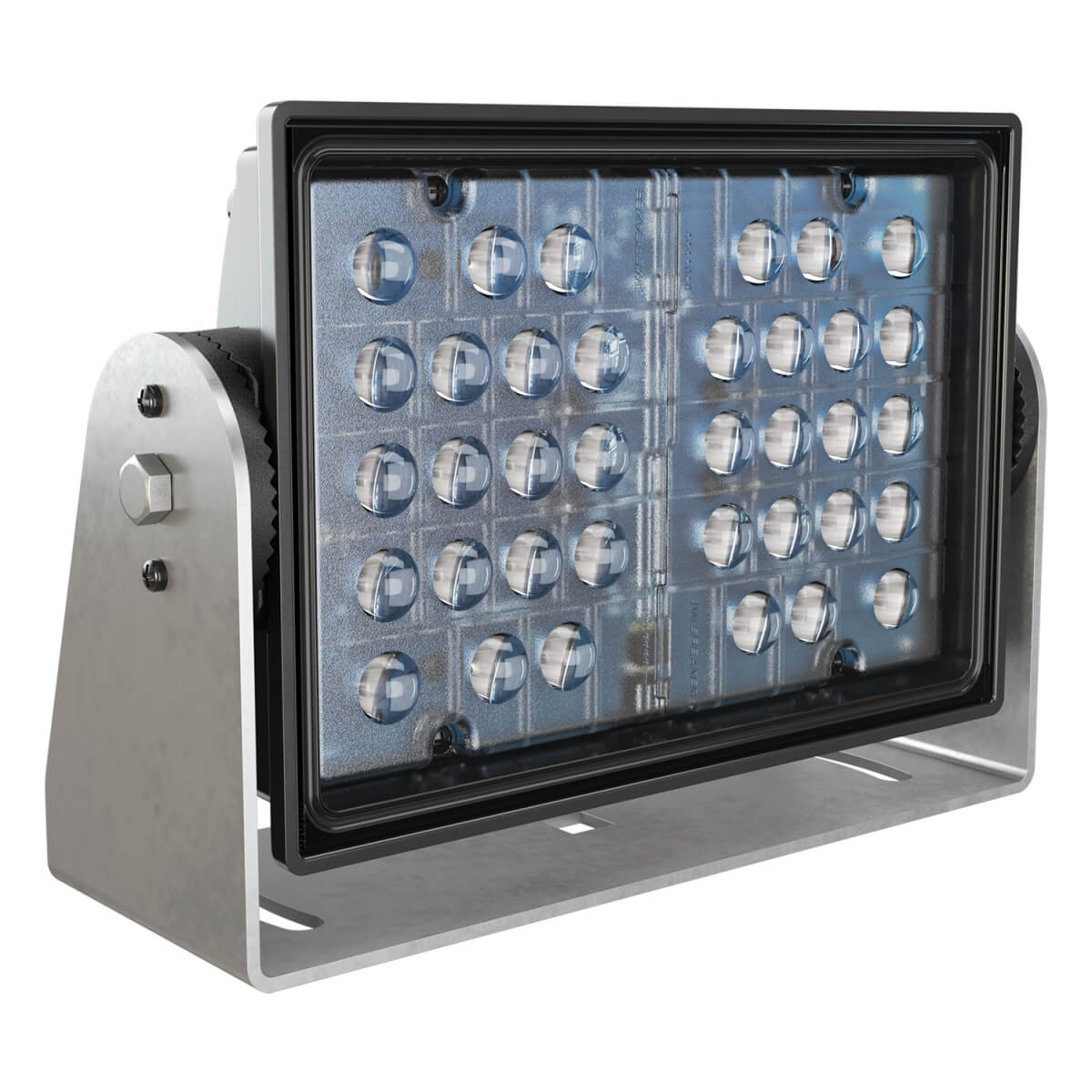

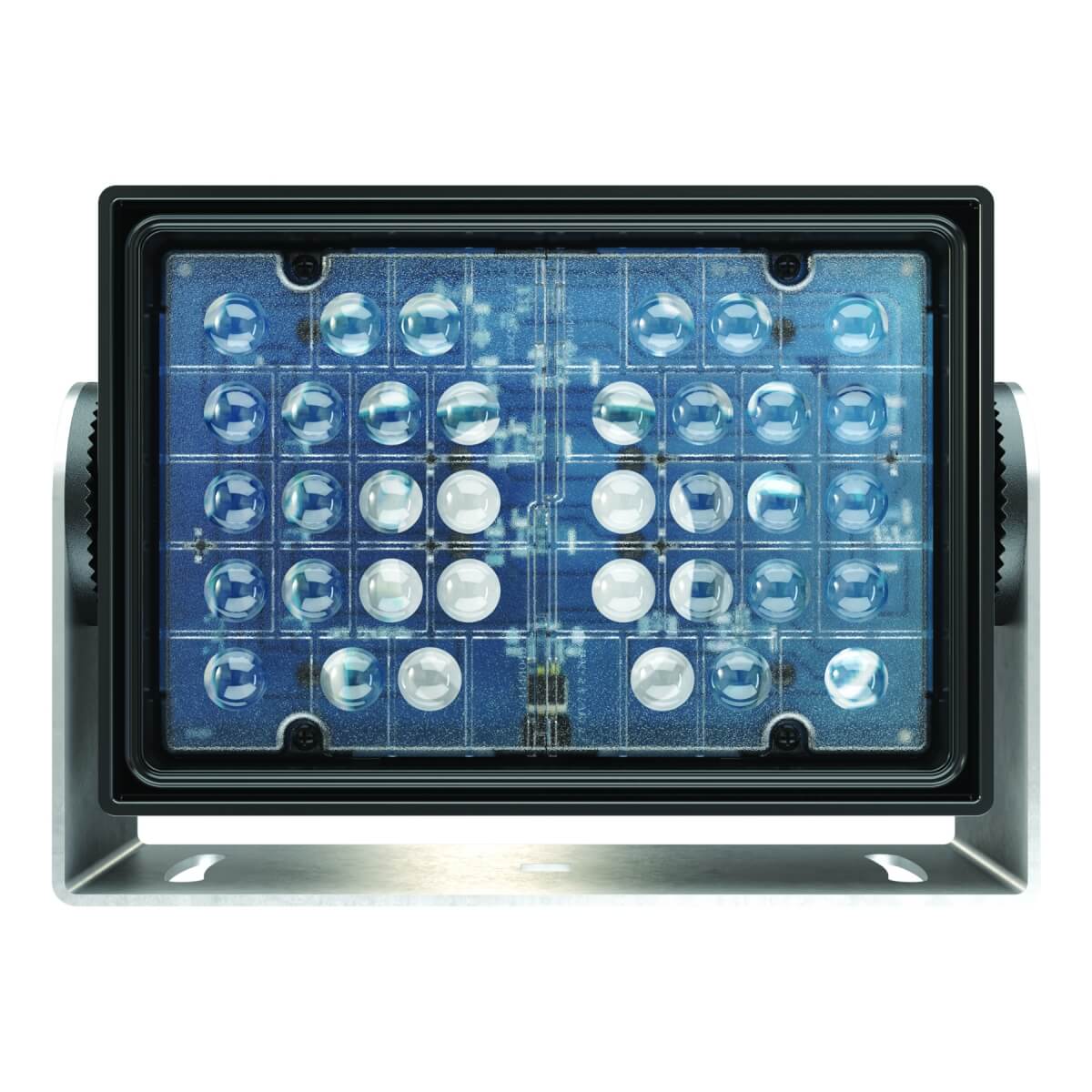

Model 523 warning spot
24 V, blue spot, black housing
Warning Zone Lights prevent accidents during operation with industrial trucks and protect your employees from injury. Mark the areas with an increased risk. Even if they are not stationary, but also move with the vehicle! Whether it is a tug truck, a forklift truck or gantry crane.

With us you get warning zone lights with different mechanisms of action:

• Periphery lights draw a colored line on the ground which uniquely marks the boundary of a dangerous zone.

• Area lights dive the entire zone of increased danger into easily visible light.

• Spot lights project a bright spot on the ground, indicating a approaching danger.

Model 523 is a spot light for the big performance.

The immense success of the LED spot light model 770 has shown that a blue dot on the ground is an effective warning device. But why not think in a larger scale? For this reason, we have developed model 523 BLU with J.W. Speaker.

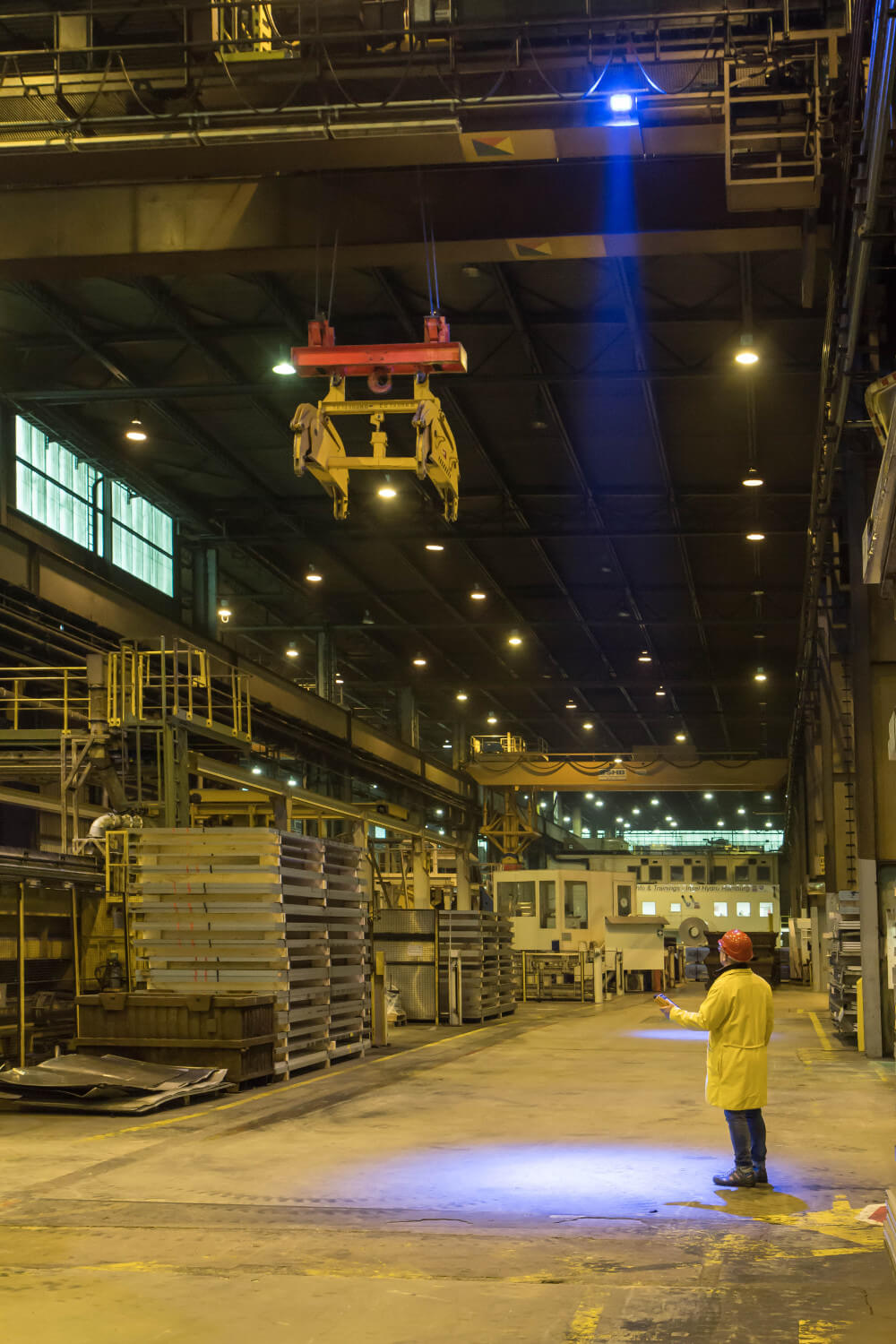

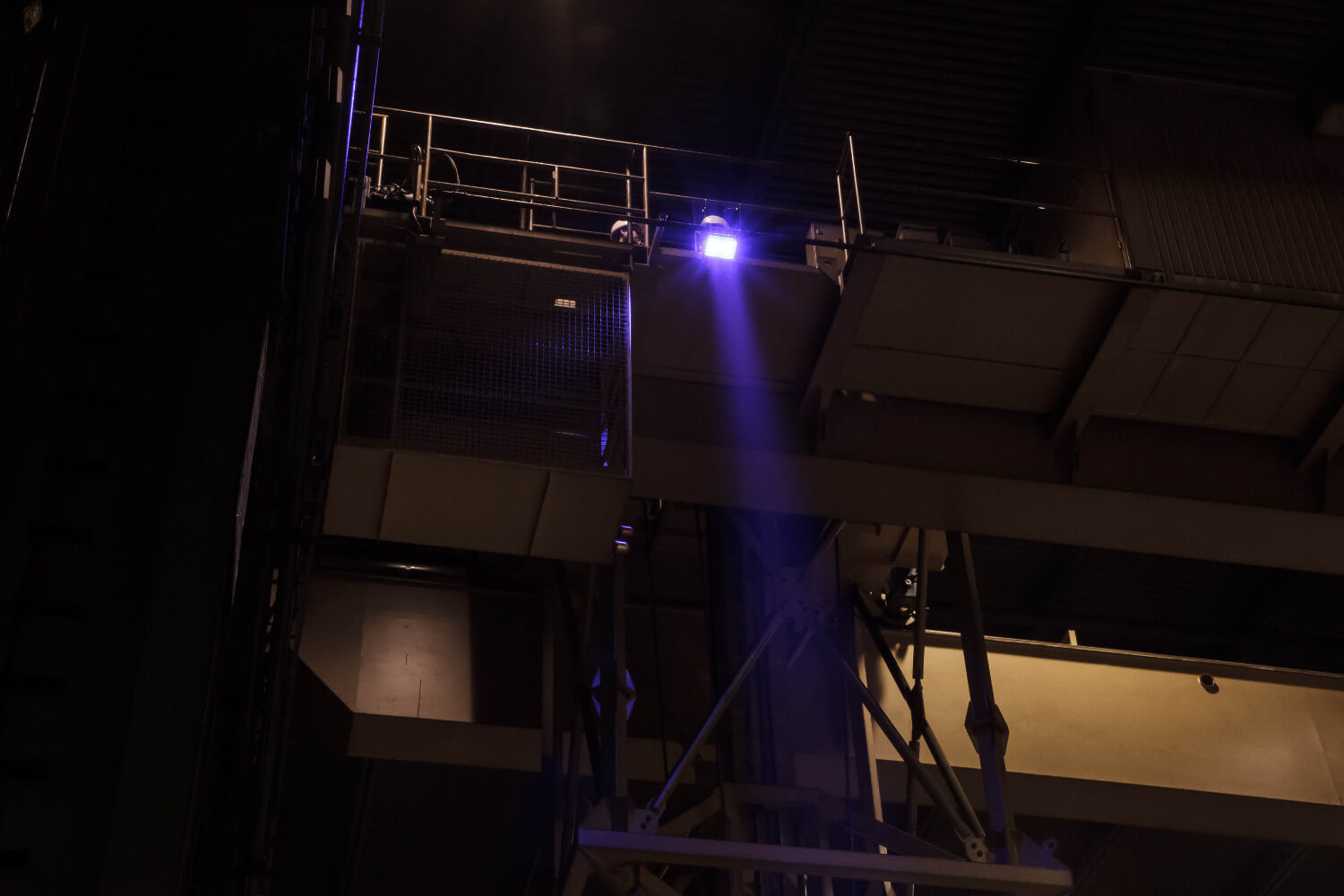

This much brighter version of the spot light is capable to project from approximately 10-15 m distance/height a very bright (42,300 cd) blue dot on the ground approx. 1 m in diameter. With this light passers-by can be warned of hanging loads from the moving operation gantry cranes.

Model 523 is available with blue or red light.
Factsheets
Standards
Operating voltage [V], nominal 24
Operating voltage [V], functional 20-32
Power consumption [W] 103.2
Load capacity [A] 4,3@24V
Temperature range [° C] -40 to 65
Protection class IP67
Standards CSA (C22.2 No 250), UL (2108)
Transient protection 150 V @ 1 Hz-10 pulses
Output
Brightness [lm], eff. 864
Brightness [cd] 42300
Performance class up to 1000 lm eff.
Beam pattern / lens Warnzone, Punkt
Temperature range [° C] -40 to 65
Mounting

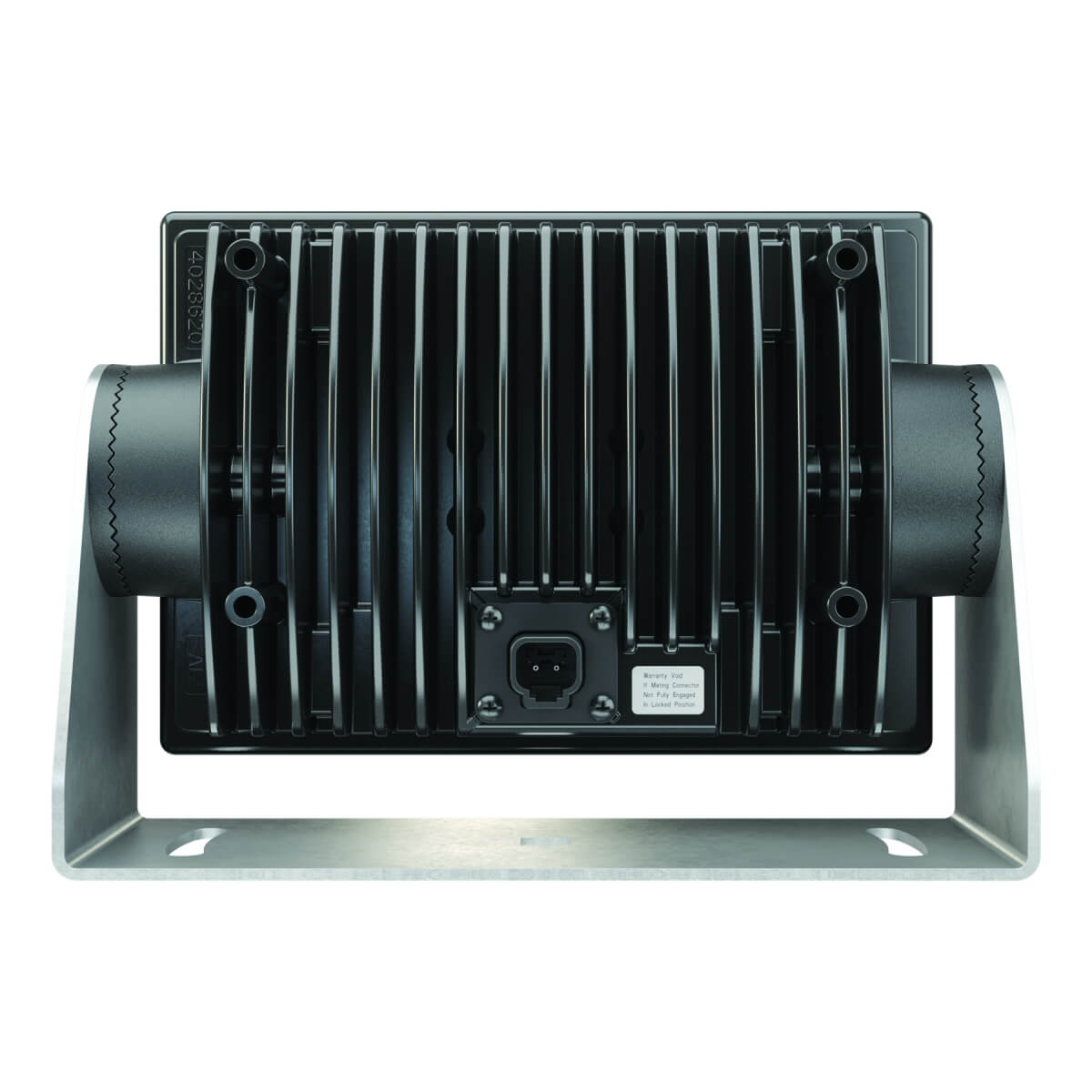

Connector Deutsch plug (DT04-2P)
Mating connector Deutsch plug (DT06-2S)

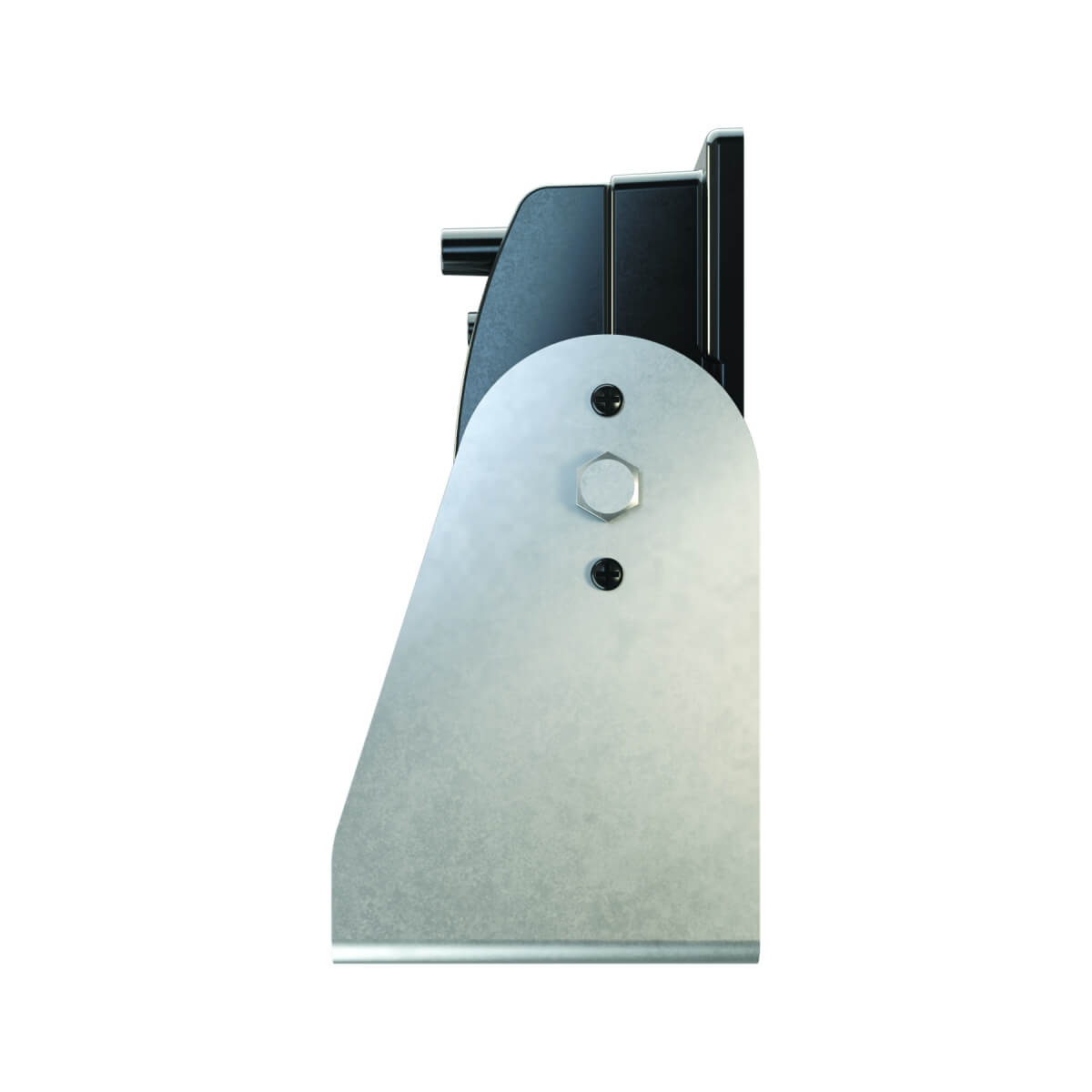

Mounting Universal mount, 1/2"
Reverse polarity protection 1
Functions
Warning spot
