A spot for safety? No, it's an arrow! Hardly another innovative product was ever so quickly accepted in the market as the spot light model 770. This safety feature projects a clearly visible blue...

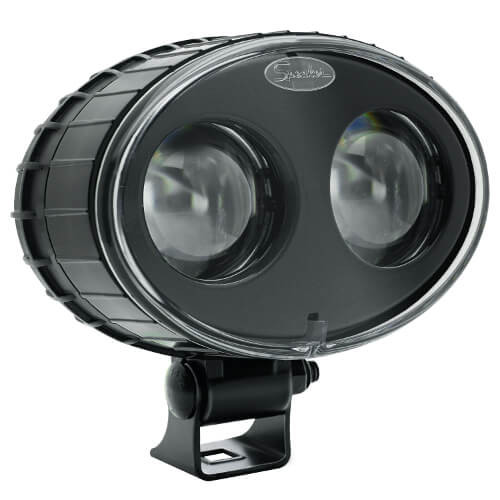

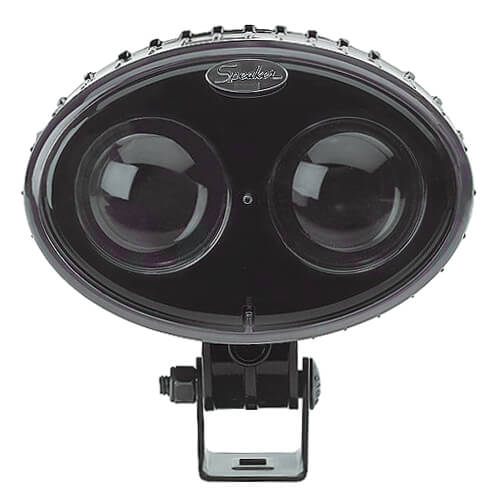

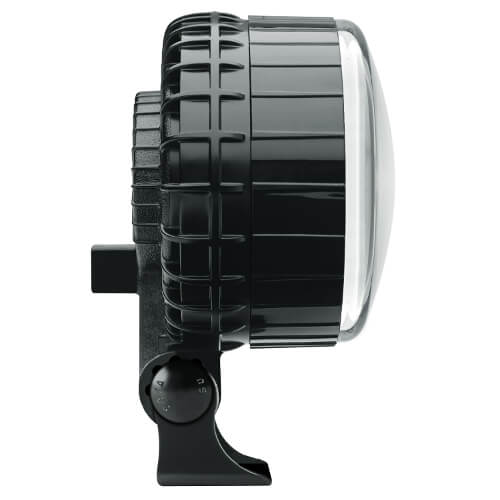

Model 770
12-110 V, blue warning arrow
A spot for safety? No, it's an arrow!

Hardly another innovative product was ever so quickly accepted in the market as the spot light model 770. This safety feature projects a clearly visible blue or red points five meters behind (or in front of, depending on the type of installation) the vehicle, which draws attention to the passers-by on the approaching vehicle. In confusing, narrow shelf streets with many reflective surfaces, this system plays his trump compared to conventional warning lights: passers-by in the danger zone are informed directly of the direction and speed of the vehicle. Thats the way passive safety has to work!

This special variant of the spot light projects no spot but a clearly visible arrow on the ground. Thus it marks the direction of movement of the vehicle very clearly.

The warning light reaches a brightness of 20,000 cd. The ideal installation takes place at a height of 2.50 m and at an angle in which the arrow is projected onto the ground 5 m behind the vehicle.

This warning light model 770 is optionally available with a blue or red arrow or as a spot.
Factsheets
Standards
Operating voltage [V], nominal 12-110
Operating voltage [V], functional 10-120
Protection class IP69K
Mounting
Connector AMP (series 250)
Mounting Universal mount, M10-1.5x22Universal mount, M10-1.5x22Universal mount, M1Universal mount, M10-1.5x22
Reverse polarity protection 1
Functions
Warning spot
