Preview: AL-866_Innenleuchte_417.jpg

Preview: AL-866_Innenleuchte_417_2.jpg

Item no.: AL-866-41712

Please log in with your dealer login to see prices.
You don't have a login yet? Apply for it now!

The combination of separately switchable red and white LEDs in model 417 is a smart solution. The red LEDs create a low-level night-time illumination in the cabin without distracting when driving;...

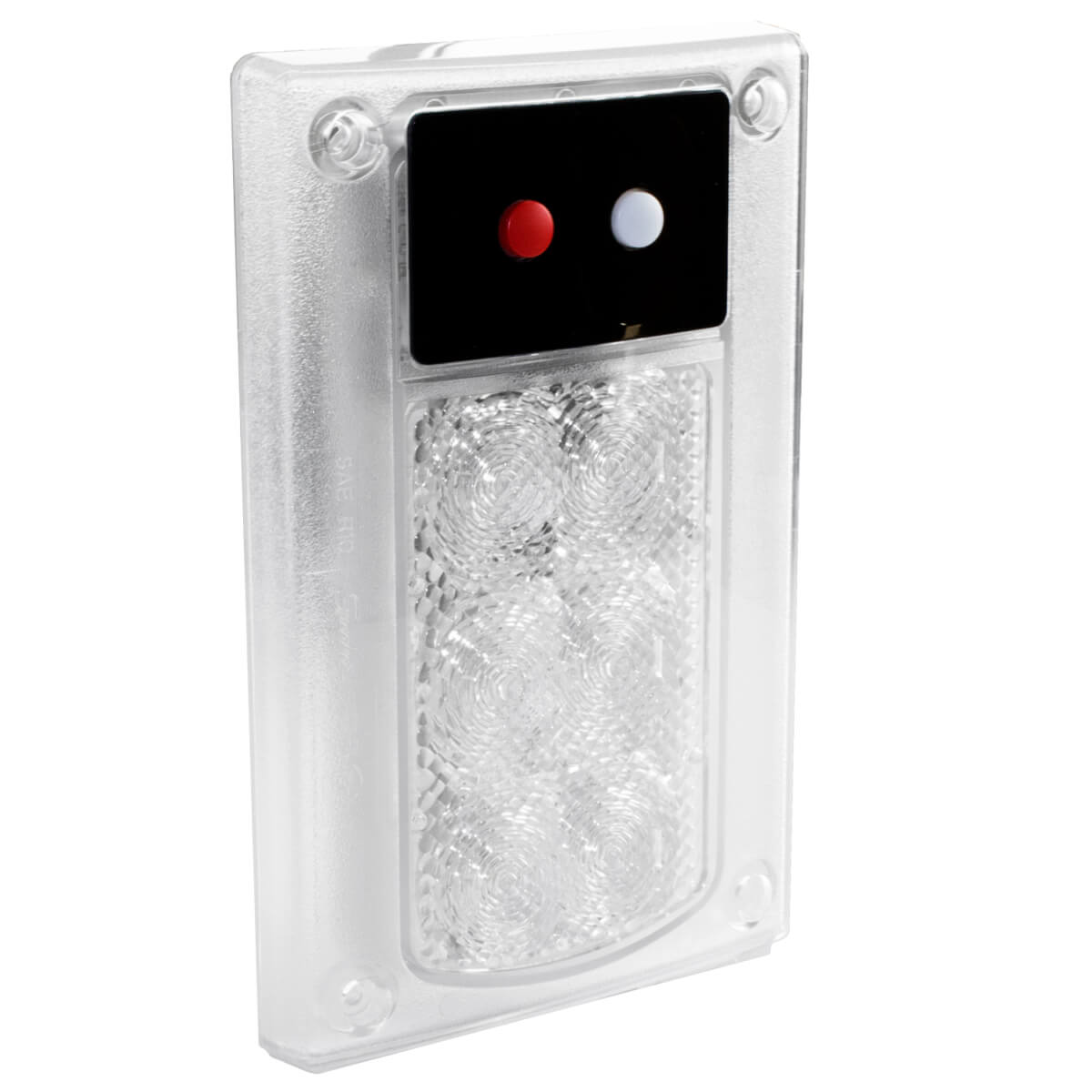

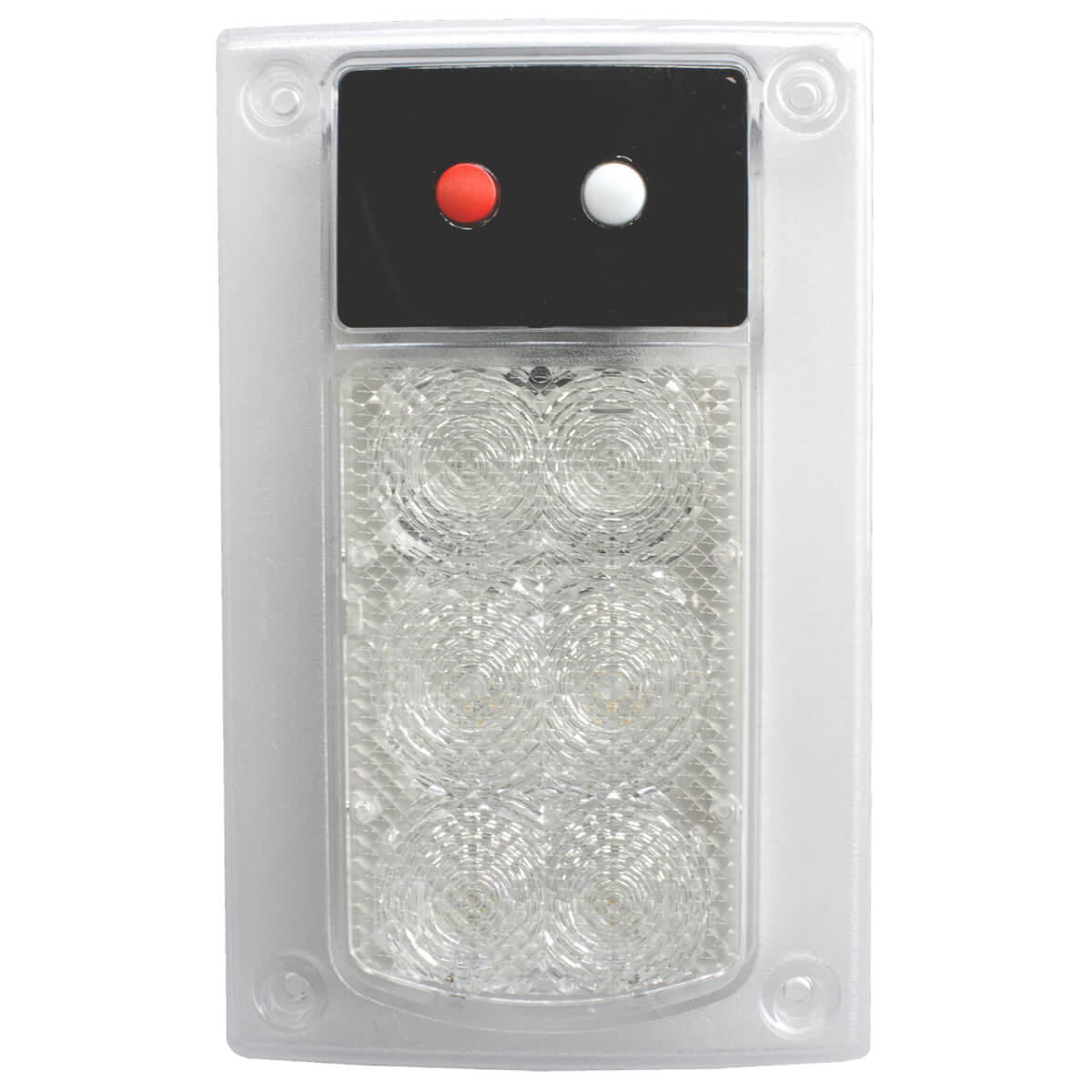

LED dome light model 417

12 V, white/red

The combination of separately switchable red and white LEDs in model 417 is a smart solution. The red LEDs create a low-level night-time illumination in the cabin without distracting when driving; the white LEDs are simply switched on when more light is needed.

Factsheets

Standards

Operating voltage [V], nominal	12
Power consumption [W]	2.1 (red x2), 3.9 (white x4), 0.3 (white x1)
Temperature range [° C]	-40 to 65

Output

Beam pattern / lens	Innenraumbeleuchtung
Temperature range [° C]	-40 to 65

Mounting

Connector	Deutsch plug (DT04-3P)
Mating connector	Deutsch plug (DT06-3S)
Reverse polarity protection	1

Functions

Cabin lighting
